AL21-LHHNS (1982)
Toyota Corsa/Tercel

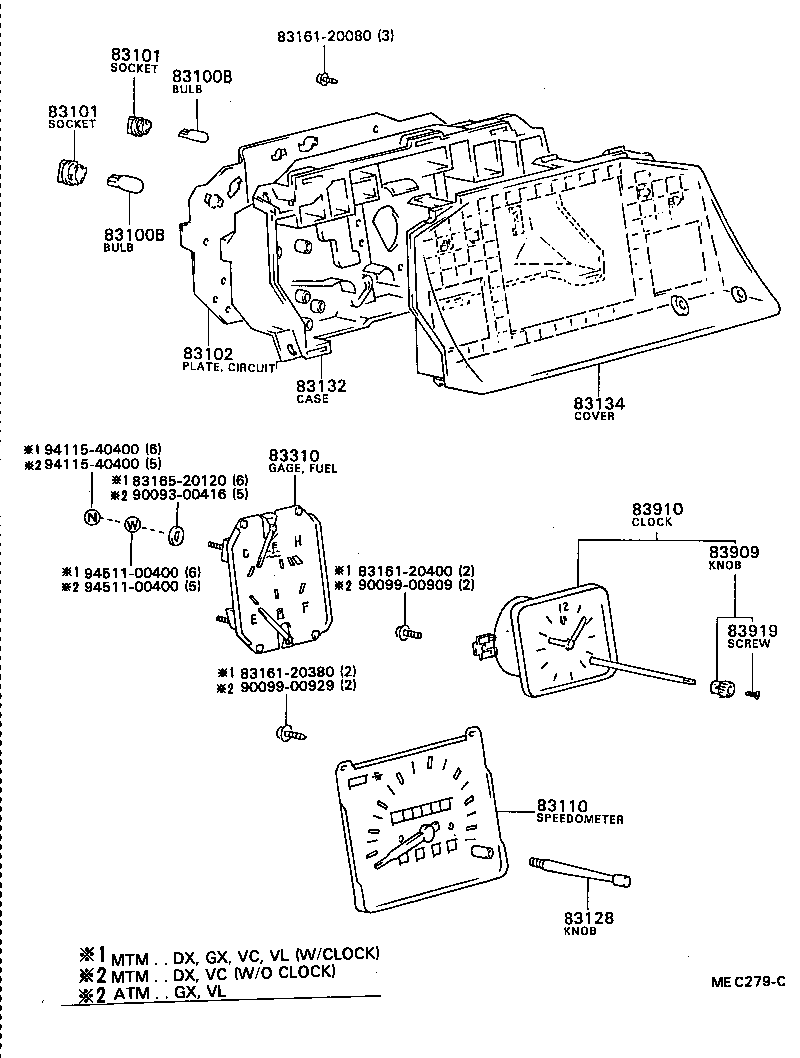

ILLUST NO. 1 OF 2(8205- )DX,GX,VC,VL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-28010 |
AL2#..3FC..(GX,VL) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
3 | ||
| 99132-12034 |
AL2# 12V 3.4W,12V 3.4W |
8 | ||
| 90981-11018 |
AL25..EX,GX;AL20,21..CRS 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-28010 |
AL2#..3FC..(GX,VL) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
3 | ||
| 99132-12034 |
AL2# 12V 3.4W,12V 3.4W |
8 | ||
| 90981-11018 |
AL25..EX,GX;AL20,21..CRS 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AL2#..3FC..(GX,VL);AL2#..DX,EX,SX,VC,VE,VS 12V 3.4W |
7 | ||
| 83101-14040 |
AL2# 12V 1.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AL2#..3FC..(GX,VL);AL2#..DX,EX,SX,VC,VE,VS 12V 3.4W |
7 | ||
| 83101-14040 |
AL2# 12V 1.4W |
7 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-16670 |
AL2#..3FC..(GX,VL) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-16300 |
AL2#..3FC..(GX,VL) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-16110 |
AL2#..3FC..(GX,VL) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-16690 |
AL2#..3FC..(GX,VL) |
1 | ||
| 83132-16550 |
AL2#..3FC..(GX,VL) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-16510 |
AL2#..3FC..(GX,VL) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16390 |
AL2#..3FC..(GX,VL) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
AL2#..DX,GX,VC,VL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-16060 |
AL2#..DX,GX,VC,VL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
AL2#..DX,GX,VC,VL |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20120 | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

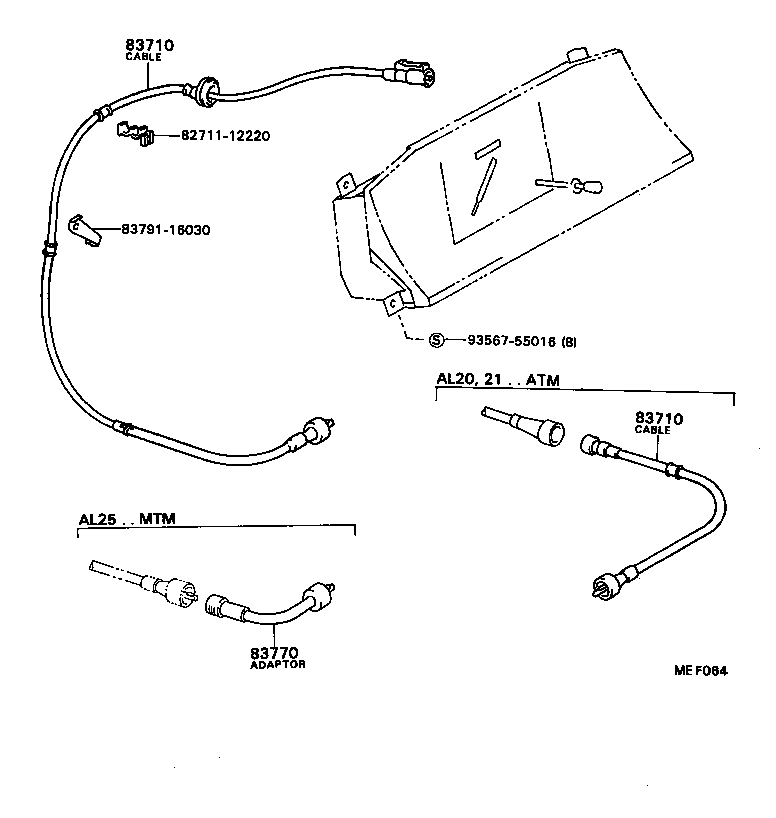

ILLUST NO. 2 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16100 |
AL20,21..3FC MISSION-ADAPTER |
1 | ||
| 83710-16070 |
AL20,21..CRS..3FC METER-ADAPTER |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16100 |
AL20,21..3FC MISSION-ADAPTER |
1 | ||
| 83710-16070 |
AL20,21..CRS..3FC METER-ADAPTER |
1 | ||
| Common parts | ||||
| 82711-12220 | ||||
| 83791-16030 | ||||
| 93567-55016 | ||||
