AL21-LHHNS (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )AL20,21

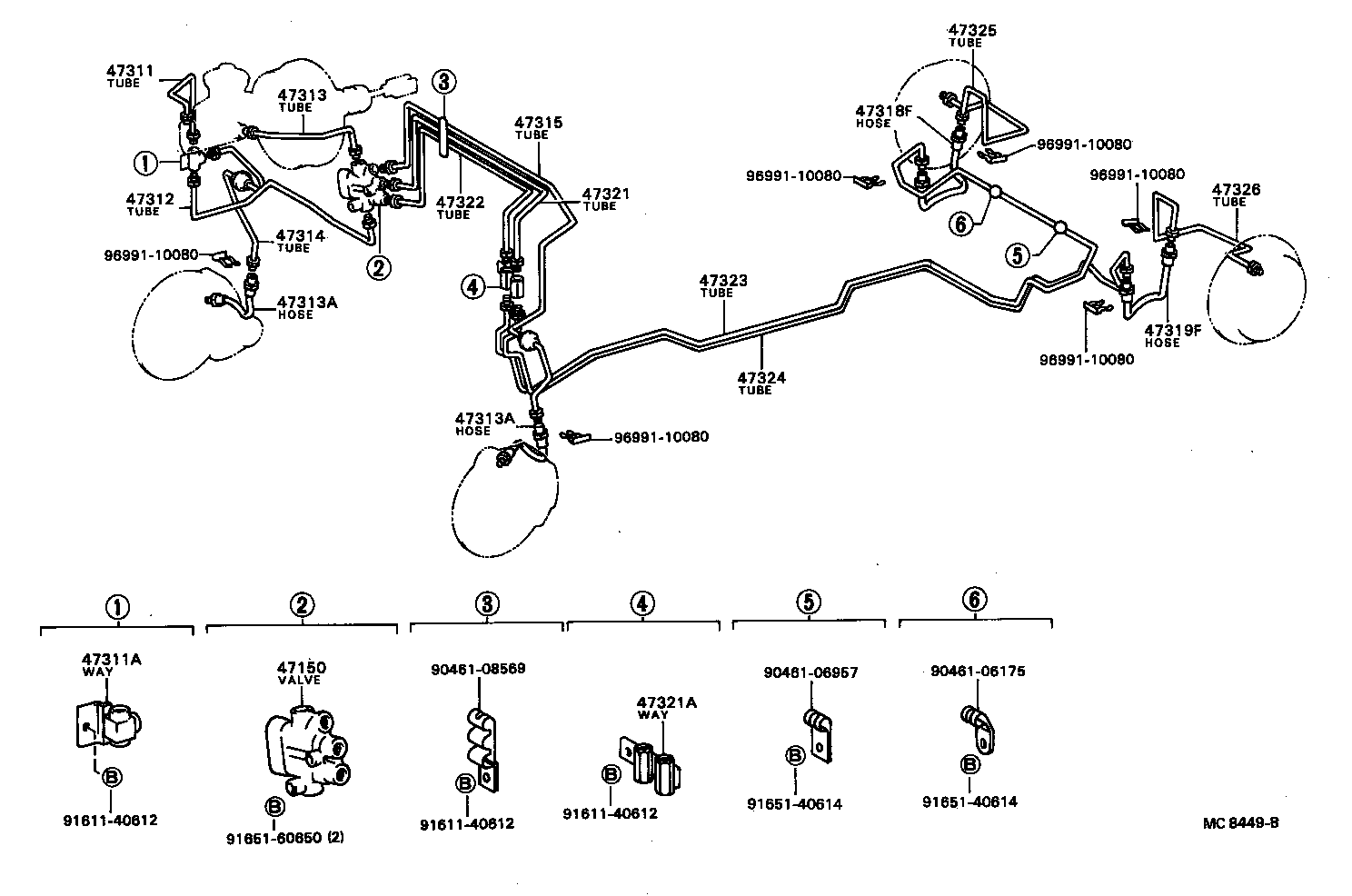

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47314 47315 47318F 47319F 47321 47321A 47322 47323 47324 47325 47326 9046106175 9046106957 9046108569 9161140612 9161140612 9161140612 9165140614 9165140614 9165160650 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-16030

AL2#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-16040

AL2#

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

AL2#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-16040

AL2#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-16050

AL2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02437

AL2#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02437

AL2#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-16040

AL2#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-16020

AL2#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96950-33205

AL20,21

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96950-33205

AL20,21

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-16030

AL2#

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90412-10096

AL2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-16020

AL2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-16030

AL2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-16020

AL2#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-16030

AL2#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-16010

AL2#

 1
Common parts
90461-06175
90461-06957
90461-08569
91611-40612
91651-40614
91651-60650
96991-10080
