AL21-LHHNS (1982)
Toyota Corsa/Tercel

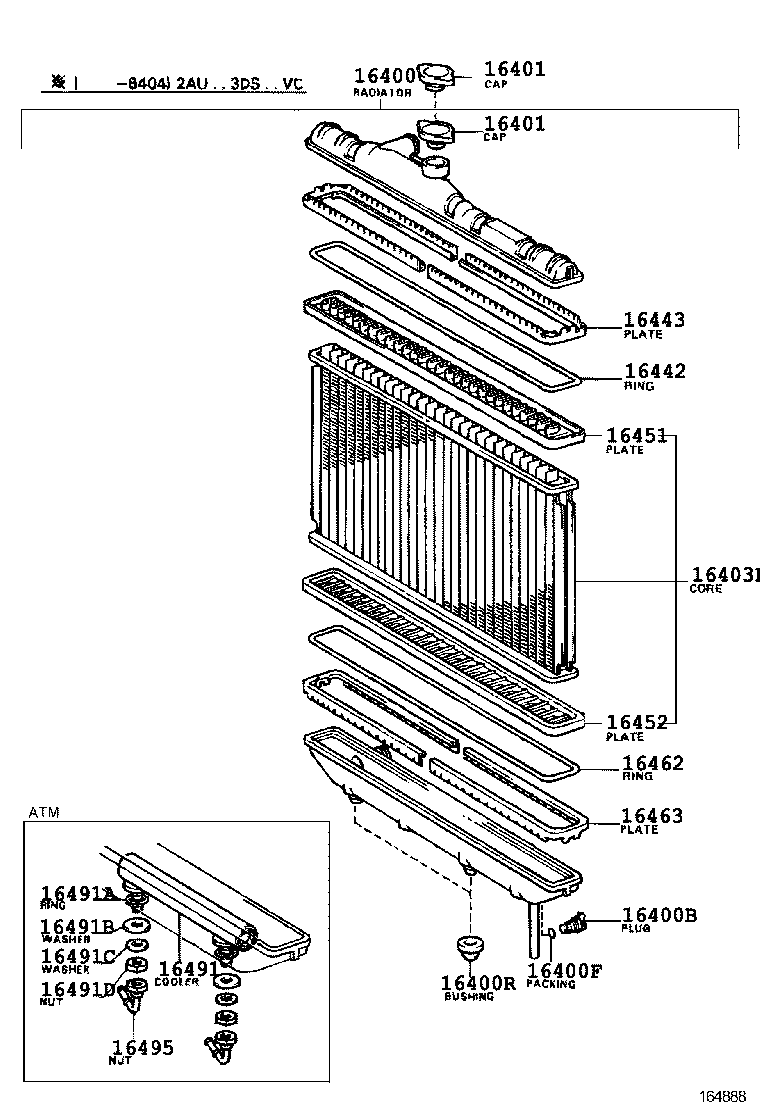

ILLUST NO. 3 OF 3(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-15130 |
2AU,3AU..AL2#..3FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2AU,3A#..AL2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2AU,3A#..AL2# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16464-15120 |
2AU,3A#..AL2# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2AU,3A#..AL2# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2AU,3A#..AL2# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-15120 |
3A#..AL21;2AU..AL20..GX,VL;2AU..AL20..(4DS,5DS)..(DX,VC) |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-31300 |
2AU,3A#..AL2# |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15120 |
2AU,3A#..AL2# |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-15120 |
2AU,3A#..AL2# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-15120 |
2AU,3A#..AL2# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-15120 |
2AU,3A#..AL2# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15120 |
2AU,3A#..AL2# |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-15130 |
2AU,3AU..AL2#..3FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
2AU,3AU..AL2#..3FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-15130 |
2AU,3AU..AL2#..3FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-15130 |
2AU,3AU..AL2#..3FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15130 |
2AU,3AU..AL2#..3FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-15130 |
2AU,3AU..AL2#..3FC |
2 | ||

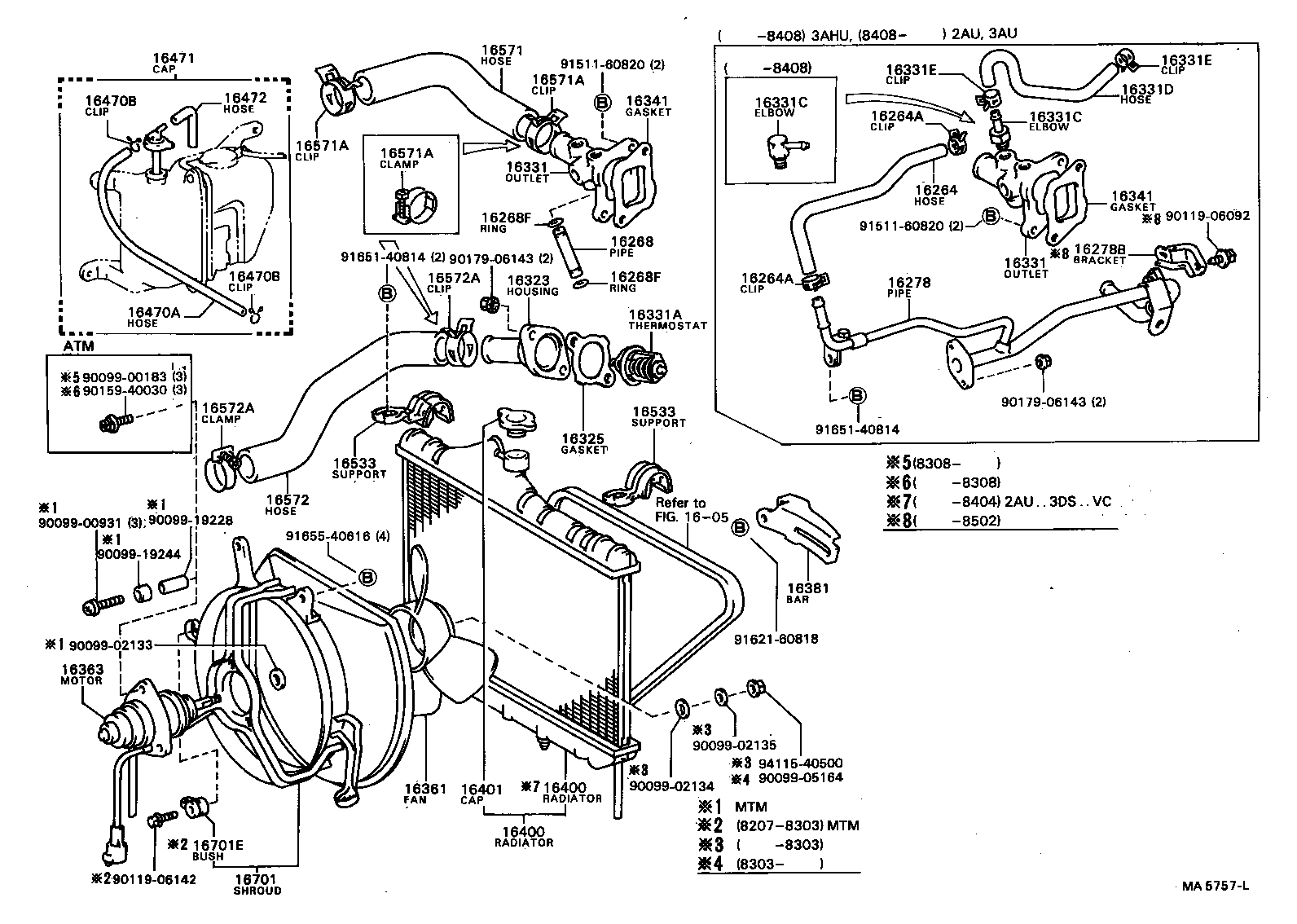

ILLUST NO. 1 OF 3(8205- )2AU,3AHU,3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-15040 |
2AU,3AU..AL2# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-15010 |
2AU,3A#..AL2# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
2AU,3A#..AL2# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
2AU,3A#..AL2# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-15040 |
2AU,3AU..AL2# |
1 | ||
| 16278B - BRACKET, WATER BY-PASS PIPE | ||||
| 87263-16010 |
2AU,3A#..AL2# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15020 |
2AU,3A#..AL2# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-70021 |
2AU,3A#..AL2# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15050 |
2AU,3AU..AL2# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15050 |
2AU,3AU..AL2# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2AU,3A#..AL2# *WAX 82−95,*WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-15011 |
2AU,3A#..AL2# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-15011 |
2AU,3A#..AL2# |
1 | ||
| 16361 - FAN | ||||
| 16361-15040 |
2AU,3AU..AL2#..3FC |
1 | ||
| 16361-15060 |
2AU,3AU..AL2#..3FC 80W |
1 | ||
| 16361-15041 |
2AU,3AU..AL2#..3FC 120W |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-15080 |
2AU,3AU..AL2#..3FC 120W |
1 | ||
| 16363-15100 |
2AU,3AU..AL2#..3FC 80W |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15030 |
2AU,3A#..AL2# |
1 | ||
| 88437-16040 |
2AU,3A#..AL2# W/COOLER |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15130 |
2AU,3AU..AL2#..3FC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15130 |
2AU,3AU..AL2#..3FC |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2AU,3A#..AL2# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33392 |
2AU,3A#..AL2#..5DS W/RR WIPER |
1 | ||
| 90099-33091 |
2AU,3AU..AL20,21..3DS,5DS W/RR WIPER |
1 | ||
| 90445-12905 |
2AU,3A#..AL2#..5DS *H,L=450,W/RR WIPER |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2AU,3A#..AL2# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2AU,3A#..AL2# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15020 |
2AU,3A#..AL2#..5DS W/RR WIPER |
1 | ||
| 16405-15020 |
2AU,3AU..AL20,21..3DS,5DS W/RR WIPER |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
2AU,3A#..AL2# |
1 | ||
| 85338-16020 |
2AU,3A#..AL2# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-15010 |
2AU,3A#..AL2# RH |
1 | ||
| 16506-15010 |
2AU,3A#..AL2# LH |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-15010 |
2AU,3A#..AL2# RH |
1 | ||
| 16506-15010 |
2AU,3A#..AL2# LH |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15081 |
2AU,3A#..AL2# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2AU,3AU..AL2# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2AU,3AU..AL2# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2AU,3AU..AL2# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15111 |
3AU..AL21..EX,GX,VE,VL W/PS |
1 | ||
| 16572-15112 |
2AU,3AU..AL2#..EX,GX,VE,VL W/PS |
1 | ||
| 16572-15120 |
2AU,3A#..AL2# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10400 |
2AU,3A#..AL2# RADIATOR SIDE |
1 | ||
| 90467-34001 |
2AU,3A#..AL2# WATER INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10400 |
2AU,3A#..AL2# RADIATOR SIDE |
1 | ||
| 90467-34001 |
2AU,3A#..AL2# WATER INLET SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15090 |
2AU,3AU..AL2#..3FC 120W |
1 | ||
| 16711-15170 |
2AU,3AU..AL2#..3FC 80W |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-00931 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-05164 | ||||
| 90099-19228 | ||||
| 90099-19244 | ||||
| 90119-06092 | ||||
| 90119-06142 | ||||
| 90159-40030 | ||||
| 90179-06143 | ||||
| 91511-60820 | ||||
| 91621-60818 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 1605 | ||||

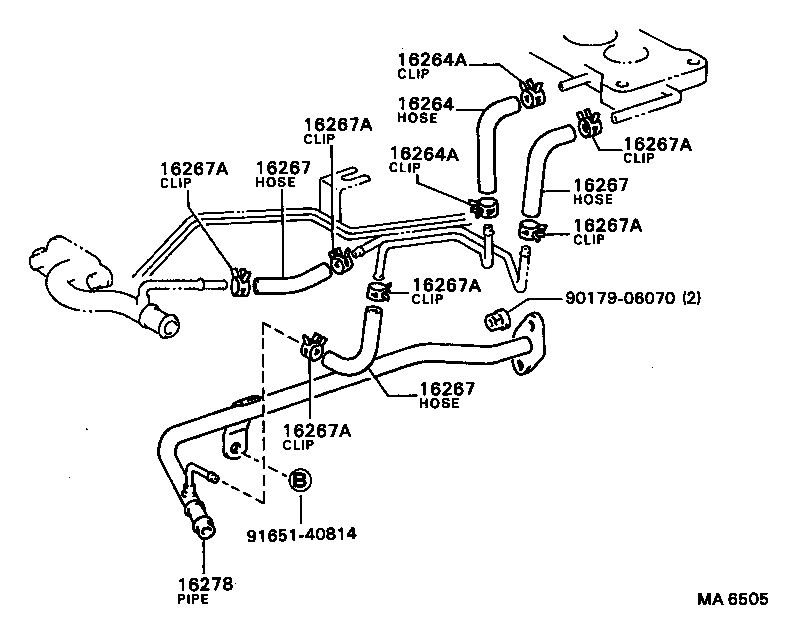

ILLUST NO. 2 OF 3(8211-8408)2AU,3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-15040 |
2AU,3AU..AL2# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99555-00100 |
2AU,3AU..AL2# |
3 | ||
| 99553-00100 |
2AU,3AU..AL2# |
3 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99555-00100 |
2AU,3AU..AL2# |
3 | ||
| 99553-00100 |
2AU,3AU..AL2# |
3 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99555-00100 |
2AU,3AU..AL2# |
3 | ||
| 99553-00100 |
2AU,3AU..AL2# |
3 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
6 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
6 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
6 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
6 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
6 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2AU,3AU..AL2# |
6 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-15040 |
2AU,3AU..AL2# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91651-40814 | ||||
