AL21-LHHES (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

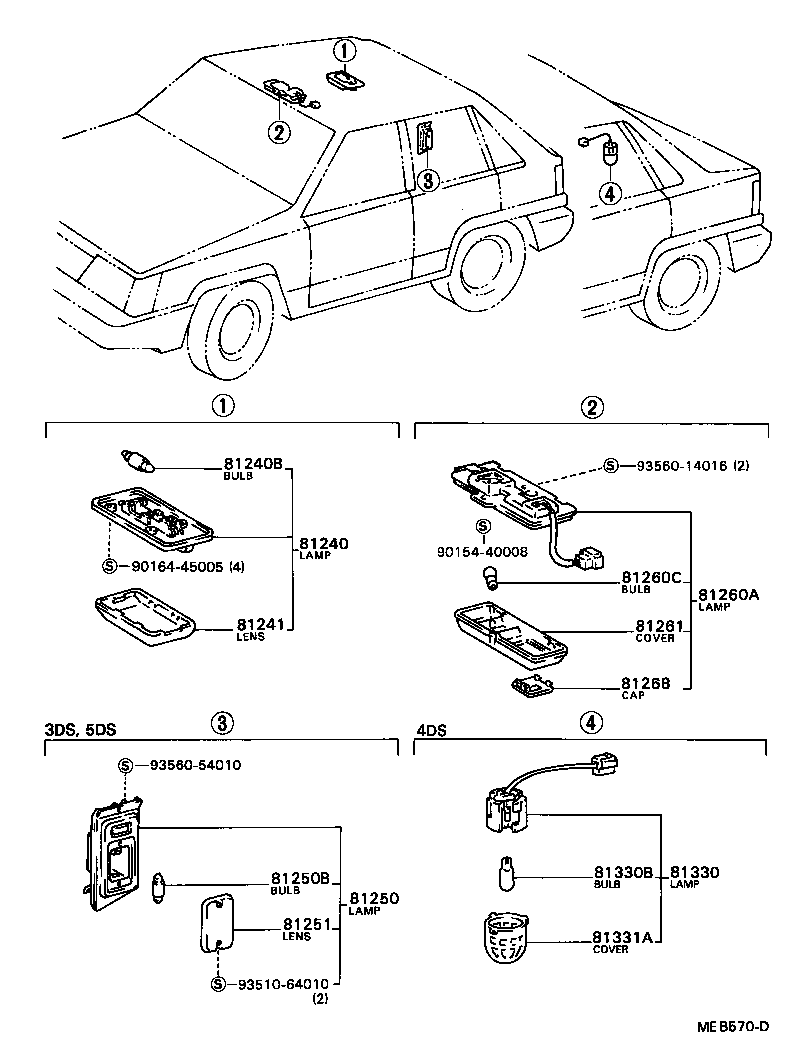

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81251 81260A 81260C 81261 81268 81330 81330B 81331A 9015440008 9016445005 9351064010 9356014016 9356054010
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2208008

AL2#

IVORY,IVORY

 1
81240-1601018

AL2#

IVORY,IVORY

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AL2#

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-16010

AL2#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-16030

AL20,21..(3DS,5DS)..(EX,GX,SX,VE,VL,VS)

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AL20,21..(3DS,5DS)..(EX,GX,SX,VE,VL,VS)

12V 5W,12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-14030

AL20,21..(3DS,5DS)..(EX,GX,SX,VE,VL,VS)

 1
81260A - LAMP ASSY, MAP
81260-1604008

AL21..(3DS,5DS)..(EX,SX,VE,VS)

IVORY,W/SUN ROOF,IVORY

 1
81260-16030

AL21..5DS..(EX,SX,VE,VS)

W/SUN ROOF

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AL21..(3DS,5DS)..(EX,SX,VE,VS)

12V 10W,12V 10W,W/SUN ROOF

 2
81261 - LENS AND COVER, MAP LAMP
81261-2006018

AL21..5DS..(EX,SX,VE,VS)

IVORY,W/SUN ROOF,IVORY

 1
81261-2006118

AL21..(3DS,5DS)..(EX,SX,VE,VS)

IVORY,W/SUN ROOF,IVORY

 1
81261-16030

AL21..5DS..(EX,SX,VE,VS)

W/SUN ROOF

 1
81268 - CAP MAP LAMP
81268-2006008

AL21..5DS..(EX,SX,VE,VS)

IVORY,W/SUN ROOF,IVORY

 1
Common parts
90154-40008
90164-45005
93510-64010
93560-14016
93560-54010
