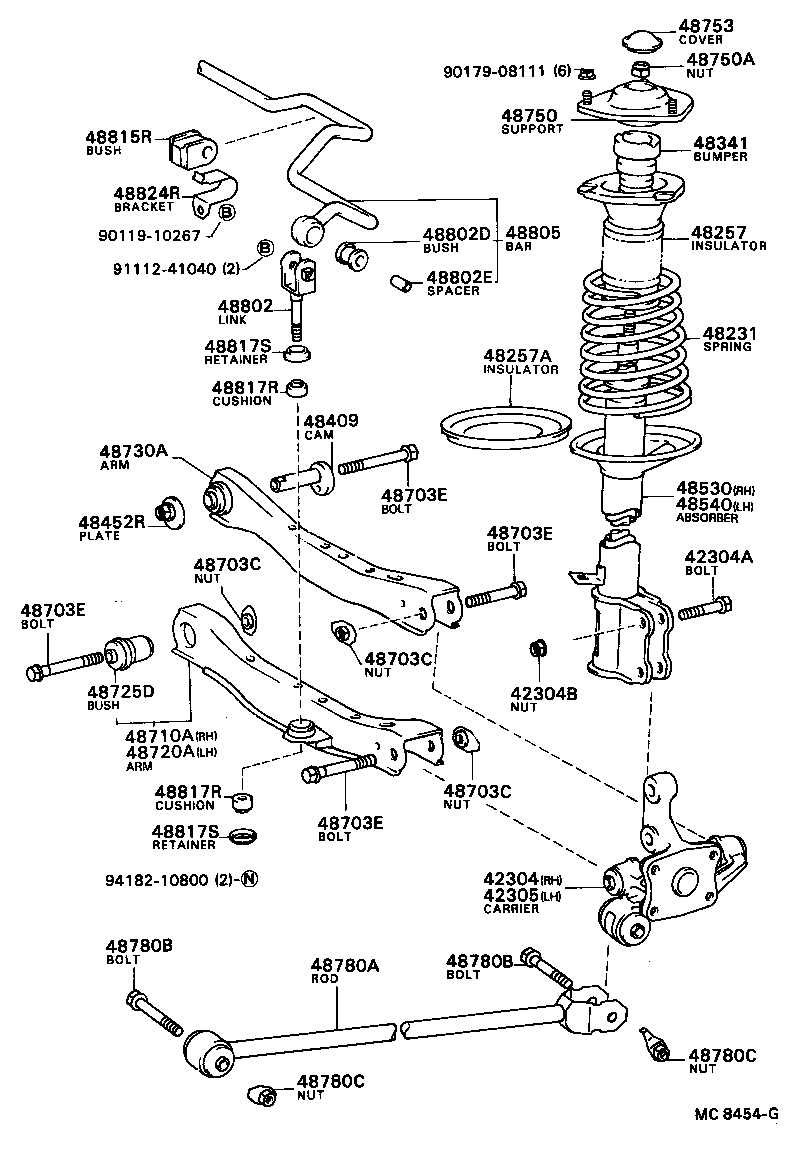

AL21-LHHES (1982)
Toyota Corsa/Tercel
(8205- )AL20,21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-16010 |
AL20,21 |
1 | ||
| 42304A - BOLT (FOR REAR AXLE CARRIER) | ||||
| 90105-12042 |
AL20,21 |
4 | ||
| 42304B - NUT (FOR REAR AXLE CARRIER) | ||||
| 90179-12025 |
AL20,21 |
4 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-16010 |
AL20,21 |
1 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-16090 |
AL2#..DX,EX,GX,VC,VE,VL |
2 | ||
| 48231-16091 |
AL2#..DX,EX,GX,VC,VE,VL |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-32010 |
AL2# |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-16010 |
AL20,21 |
2 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-32010 |
AL20,21 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32010 |
AL20,21 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-16010 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 48530-16011 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-16010 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 48540-16011 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12033 |
AL20,21 NO.1 ARM X BODY |
2 | ||
| 90179-12028 |
AL20,21 NO.2 ARM X CARRIPER |
2 | ||
| 90179-12023 |
AL20,21 NO.1 ARM X CARRIPER |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12033 |
AL20,21 NO.1 ARM X BODY |
2 | ||
| 90179-12028 |
AL20,21 NO.2 ARM X CARRIPER |
2 | ||
| 90179-12023 |
AL20,21 NO.1 ARM X CARRIPER |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12033 |
AL20,21 NO.1 ARM X BODY |
2 | ||
| 90179-12028 |
AL20,21 NO.2 ARM X CARRIPER |
2 | ||
| 90179-12023 |
AL20,21 NO.1 ARM X CARRIPER |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-10052 |
AL20,21 NO.2 ARM X BODY |
2 | ||
| 90105-12037 |
AL20,21 NO.2 ARM X CARRIER |
2 | ||
| 90105-12038 |
AL20,21 *12−1.25PX72−25,NO.1 ARM |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-10052 |
AL20,21 NO.2 ARM X BODY |
2 | ||
| 90105-12037 |
AL20,21 NO.2 ARM X CARRIER |
2 | ||
| 90105-12038 |
AL20,21 *12−1.25PX72−25,NO.1 ARM |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-10052 |
AL20,21 NO.2 ARM X BODY |
2 | ||
| 90105-12037 |
AL20,21 NO.2 ARM X CARRIER |
2 | ||
| 90105-12038 |
AL20,21 *12−1.25PX72−25,NO.1 ARM |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-10052 |
AL20,21 NO.2 ARM X BODY |
2 | ||
| 90105-12037 |
AL20,21 NO.2 ARM X CARRIER |
2 | ||
| 90105-12038 |
AL20,21 *12−1.25PX72−25,NO.1 ARM |
4 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-16010 |
AL20,21..DX,EX,GX,VC,VE,VL |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-16010 |
AL20,21..DX,EX,GX,VC,VE,VL |
1 | ||
| 48730A - ARM ASSY, REAR SUSPENSION, NO.2 | ||||
| 48730-16010 |
AL20,21 |
2 | ||
| 48750 - SUPPORT ASSY, REAR SUSPENSION | ||||
| 48750-16020 |
AL2# |
2 | ||
| 48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 94182-11400 |
AL20,21 |
2 | ||
| 48753 - COVER, REAR SUSPENSION SUPPORT | ||||
| 48753-16010 |
AL20,21 |
2 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-16010 |
AL20,21 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90105-12035 |
AL20,21 |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90105-12035 |
AL20,21 |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12033 |
AL20,21 ROD X BODY |
2 | ||
| 90179-12023 |
AL20,21 NO.1 ROD X CARRIPER |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12033 |
AL20,21 ROD X BODY |
2 | ||
| 90179-12023 |
AL20,21 NO.1 ROD X CARRIPER |
2 | ||
| Common parts | ||||
| 90119-10267 | ||||
| 90179-08111 | ||||
| 91112-41040 | ||||
| 94182-10800 | ||||
