AL21-LGMSB (1984)

Toyota Corsa/Tercel

Production Aug 1984 - May 1986
Engine 3ASU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )3ASU

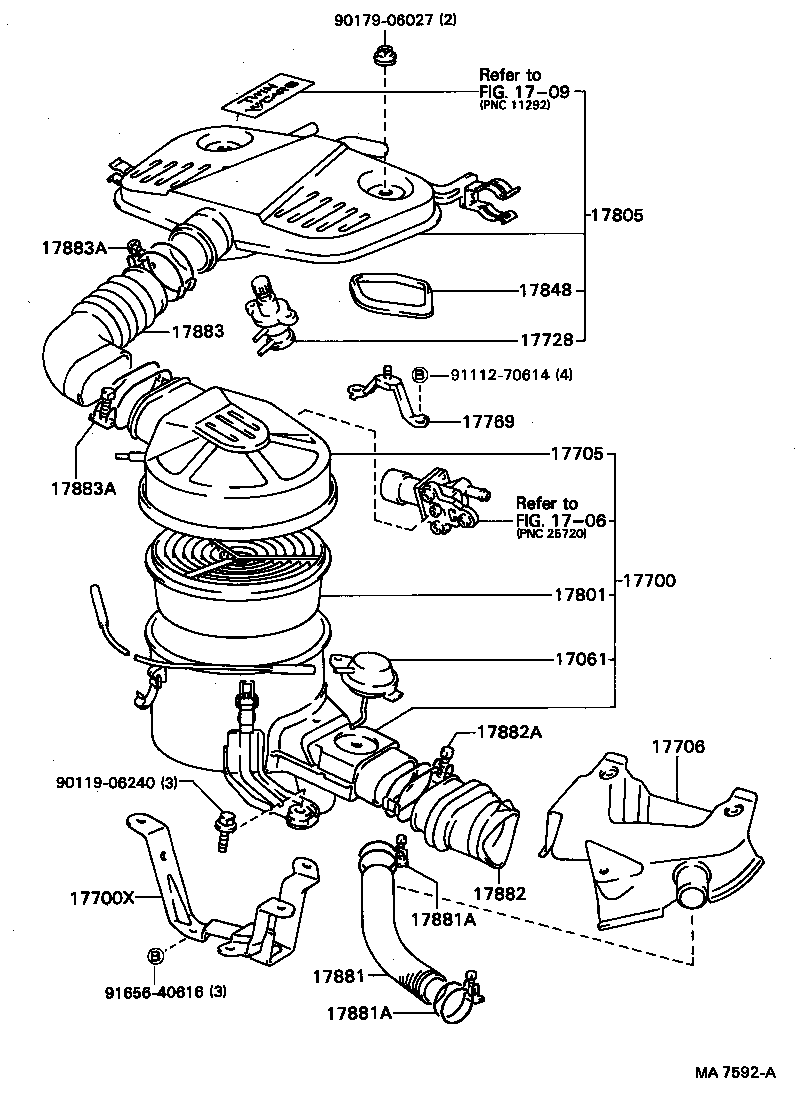

Click highlighted areas on diagram

diagram 1706 17061 1709 17700 17700X 17705 17706 17728 17769 17801 17805 17848 17881 17881A 17881A 17882 17882A 17883 17883A 17883A 9011906240 9017906027 9111270614 9165640616
Part # Description Qty Price
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17902-15060

2AU,3A#..AL2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15010

2AU,3A#..AL2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74040

2AU,3A#..AL2#

 1
17881-63010

2AU,3A#..AL2#

 1
17881-34110

3ASU..AL21

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

2AU,3A#..AL2#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

2AU,3A#..AL2#

 2
17882 - HOSE, AIR CLEANER, NO.2
17881-15050

2AU,3A#..AL2#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01005

2AU,3A#..AL2#

 1
Common parts
90119-06240
90179-06027
91112-70614
91656-40616
Linked diagrams
1706
1709
