AL21-LGMSB (1984)

Toyota Corsa/Tercel

Production Aug 1984 - May 1986
Engine 3ASU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )2AU,3A#..AL20,21

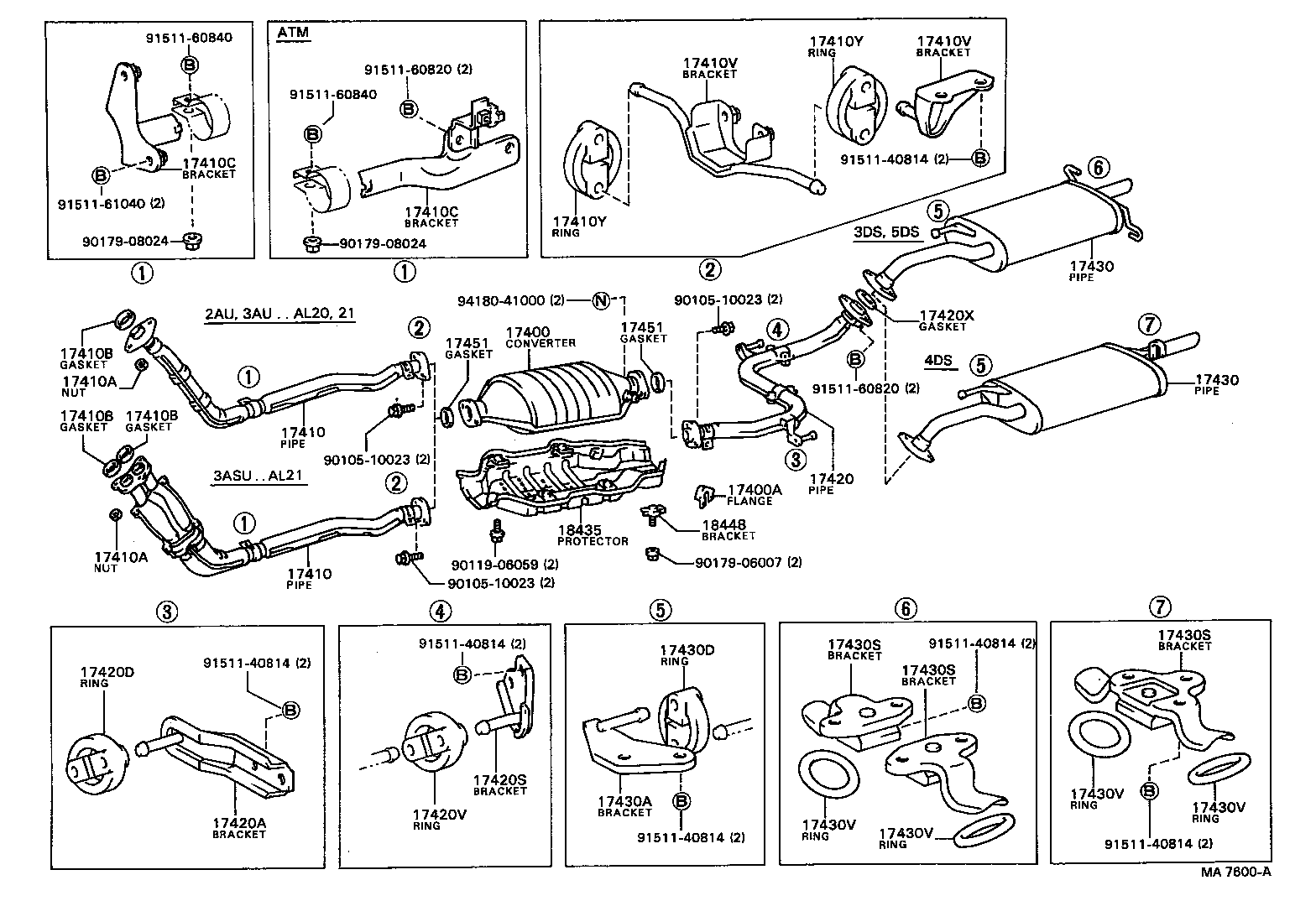

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410 17410A 17410A 17410B 17410B 17410B 17410C 17410C 17410V 17410V 17410Y 17410Y 17420 17420A 17420D 17420S 17420V 17420X 17430 17430 17430A 17430D 17430S 17430S 17430S 17430V 17430V 17430V 17430V 17451 17451 18435 18448 9010510023 9010510023 9010510023 9011906059 9017906007 9017908024 9017908024 9151140814 9151140814 9151140814 9151140814 9151140814 9151140814 9151160820 9151160820 9151160840 9151160840 9151161040 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
17400-13050

2AU,3A#..AL2#

 1
17400A - FLANGE, THERMOSENSER INLET
18491-38040

2AU,3A#..AL2#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-15080

2AU,3A#..AL2#

 1
17410-15200

3ASU..AL21

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-15080

2AU,3A#..AL2#

 1
17410-15200

3ASU..AL21

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

2AU,3A#..AL2#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

2AU,3A#..AL2#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

2AU,3A#..AL2#

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

2AU,3A#..AL2#

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

2AU,3A#..AL2#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-15070

2AU,3A#..AL2#..MTM

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-15070

2AU,3A#..AL2#..MTM

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-15030

2AU,3A#..AL2#

LH SIDE

 1
17503-15040

2AU,3A#..AL2#

CTR

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-15030

2AU,3A#..AL2#

LH SIDE

 1
17503-15040

2AU,3A#..AL2#

CTR

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-15020

2AU,3A#..AL2#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-15020

2AU,3A#..AL2#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-15020

2AU,3A#..AL2#..3DS,5DS

 1
17420-15080

3ASU..AL21

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17506-15020

2AU,3A#..AL2#

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
17565-15020

2AU,3A#..AL2#

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-15020

2AU,3A#..AL2#

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-63030

2AU,3A#..AL2#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06026

2AU,3A#..AL2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-15100

2AU,3A#..AL2#..3DS,5DS

 1
17430-15300

3ASU..AL21

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-15100

2AU,3A#..AL2#..3DS,5DS

 1
17430-15300

3ASU..AL21

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-15010

2AU,3A#..AL2#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15020

2AU,3A#..AL2#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63010

2AU,3A#..AL20,21..3DS,5DS

 2
17509-63010

2AU,3A#..AL2#..3DS,5DS

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63010

2AU,3A#..AL20,21..3DS,5DS

 2
17509-63010

2AU,3A#..AL2#..3DS,5DS

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63010

2AU,3A#..AL20,21..3DS,5DS

 2
17509-63010

2AU,3A#..AL2#..3DS,5DS

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-33001

2AU,3A#..AL2#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-33001

2AU,3A#..AL2#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-33001

2AU,3A#..AL2#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-33001

2AU,3A#..AL2#

 2
17451 - GASKET, EXHAUST PIPE
90917-06018

2AU,3A#..AL2#

FR

 1
90917-06004

2AU,3A#..AL2#

RR

 1
17451 - GASKET, EXHAUST PIPE
90917-06018

2AU,3A#..AL2#

FR

 1
90917-06004

2AU,3A#..AL2#

RR

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-25011

2AU,3A#..AL2#

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-26020

2AU,3A#..AL2#

 2
Common parts
90105-10023
90119-06059
90179-06007
90179-08024
91511-40814
91511-60820
91511-60840
91511-61040
94180-41000
