AL21-LGHSS (1984)

Toyota Corsa/Tercel

Production Aug 1984 - May 1986
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )2AU,3AU

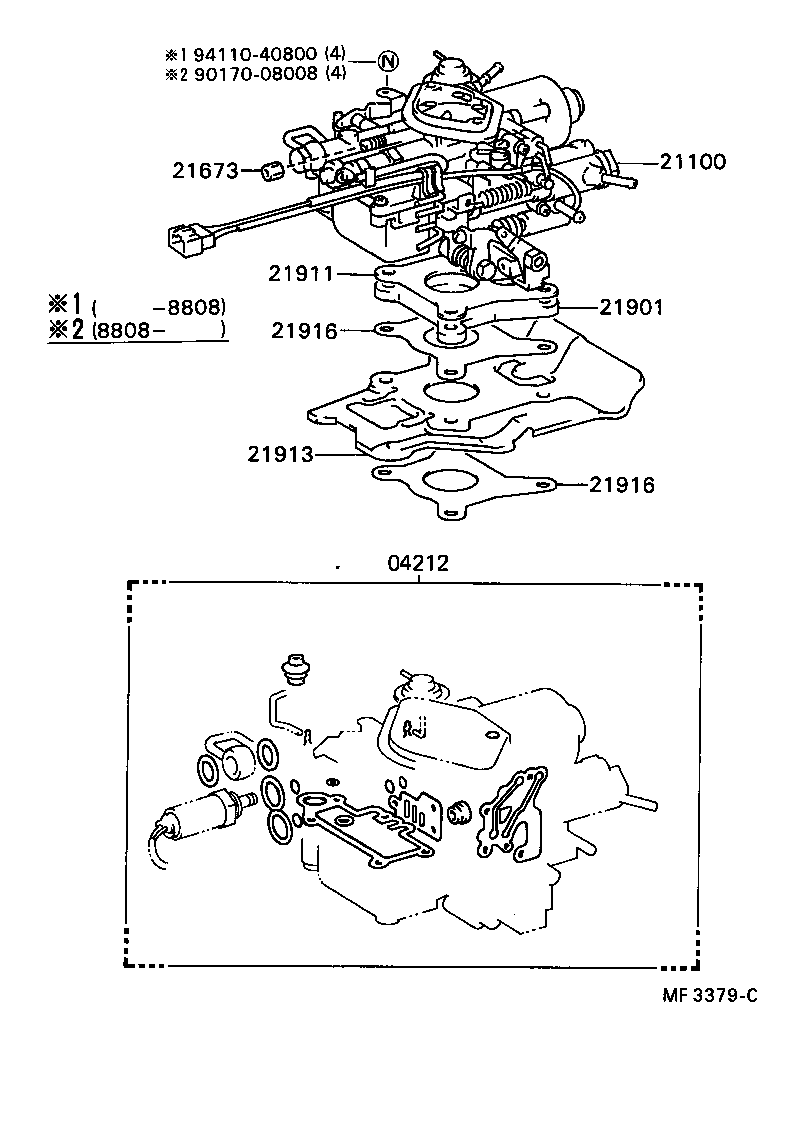

Click highlighted areas on diagram

diagram 04212 21100 21673 21901 21911 21913 21916 21916 9017008008 9411040800
Part # Description Qty Price
04212 - GASKET KIT, CARBURETOR
04212-15110

2AU,3A#..AL2#

 2
04212-15050

2AU,3AU..AL2#

 1
21100 - CARBURETOR ASSY
21100-15270

2AU,3AU..AL2#..3FC

 1
21673 - CAP, IDLE LIMIT
21673-38020

2AU,3AU..AL2#

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15011

2AU,3AU..AL2#

 1
21911 - GASKET, CARBURETOR
21916-15030

2AU,3AU..AL2#

 2
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21913-15030

2AU,3AU..AL2#

 1
21913-15050

2AU,3AU..AL2#

 1
Common parts
90170-08008
94110-40800
