AL21-LEMSH (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

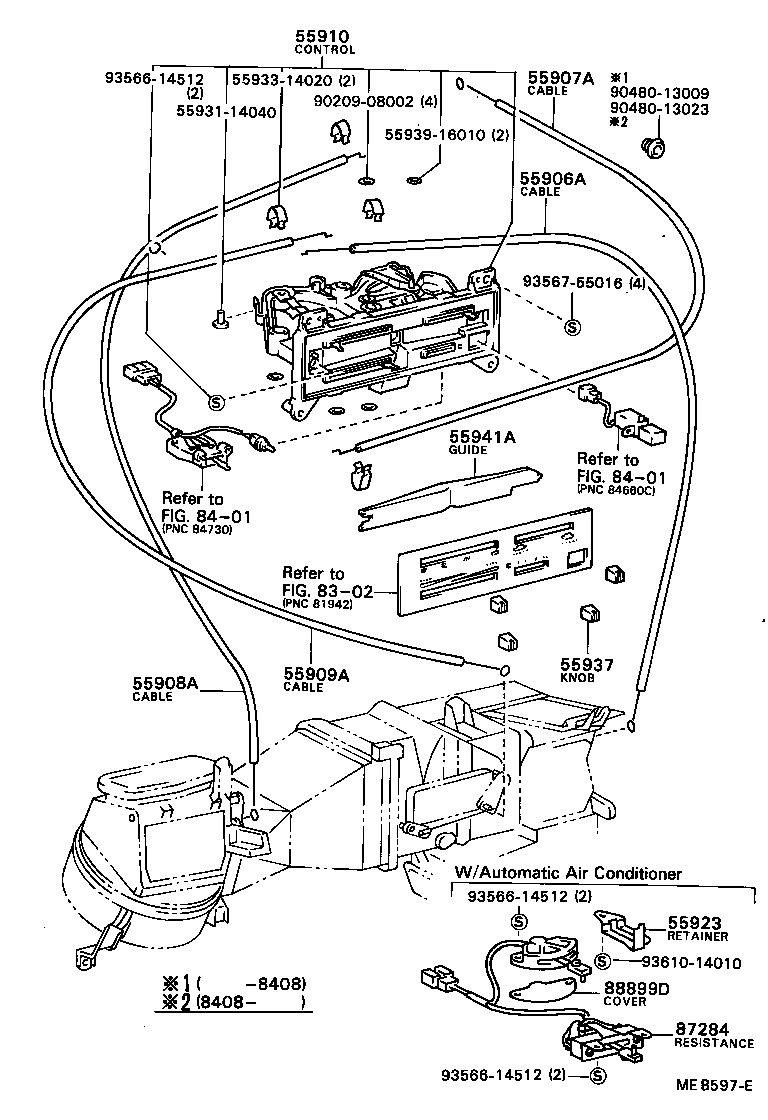

ILLUST NO. 1 OF 3(8205- )

Click highlighted areas on diagram

diagram 55906A 55907A 55908A 55909A 55910 55923 5593114040 5593314020 55937 5593916010 55941A 8302 8401 8401 87284 88899D 9020908002 9048013009 9048013023 9356614512 9356614512 9356614512 9356755016 9361014010
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-16030

AL2#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-16060

AL2#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-16030

AL2#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-16020

AL2#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-16040

AL2#

 1
55923 - RETAINER, HEATER CONTROL, UPPER
55923-16020

AL21,25..EX,SX,VE,VS

W/*AAC

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12060

AL2#

 4
55941A - GUIDE, HEATER CONTROL
55941-16020

AL2#

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-16030

AL21,25..EX,SX,VE,VS

W/*AAC

 1
88899D - COVER, COOLER CONTROL
88894-16030

AL21,25..EX,SX,VE,VS

W/*AAC

 1
Common parts
55931-14040
55933-14020
55939-16010
90209-08002
90480-13009
90480-13023
93566-14512
93567-55016
93610-14010
Linked diagrams
8302
8401

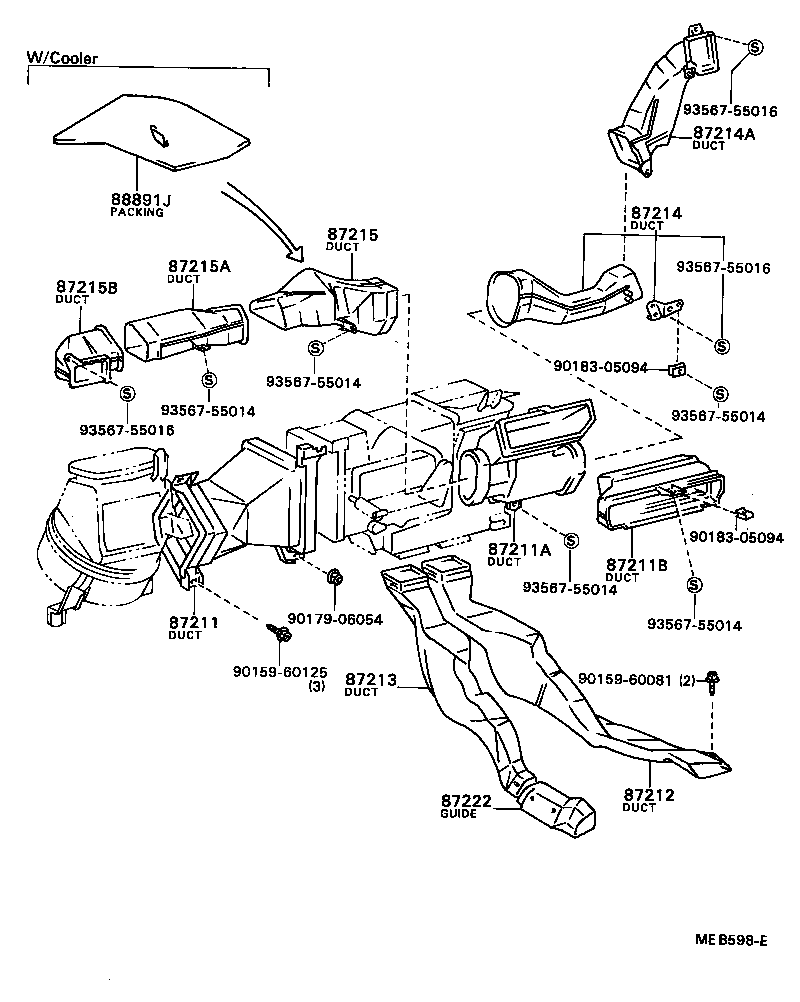

ILLUST NO. 2 OF 3(8205- )

Click highlighted areas on diagram

diagram 87211 87211A 87211B 87212 87213 87214 87214A 87215 87215A 87215B 87222 88891J 9015960081 9015960125 9017906054 9018305094 9018305094 9356755014 9356755014 9356755014 9356755014 9356755014 9356755016 9356755016 9356755016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87201-16040

AL2#

 1
87211A - DUCT, AIR, NO.2
87201-16030

AL2#

 1
87211B - DUCT, AIR, NO.3
55086-16030

AL2#

 1
87212 - DUCT, AIR, REAR NO.1
87202-16030

AL20,21

COLD SPEC

 1
87213 - DUCT, AIR, REAR NO.2
87203-16030

AL20,21

COLD SPEC

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-16020

AL2#

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-16010

AL2#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-16030

AL2#

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55088-16010

AL2#

 1
87215B - DUCT, AIR, SIDE NO.3 LH
55089-16010

AL2#

 1
87222 - GUIDE, AIR DUCT, REAR
87216-16010

AL20,21

COLD SPEC

 1
88891J - PACKING
88892-16110

AL2#

 1
Common parts
90159-60081
90159-60125
90179-06054
90183-05094
93567-55014
93567-55016

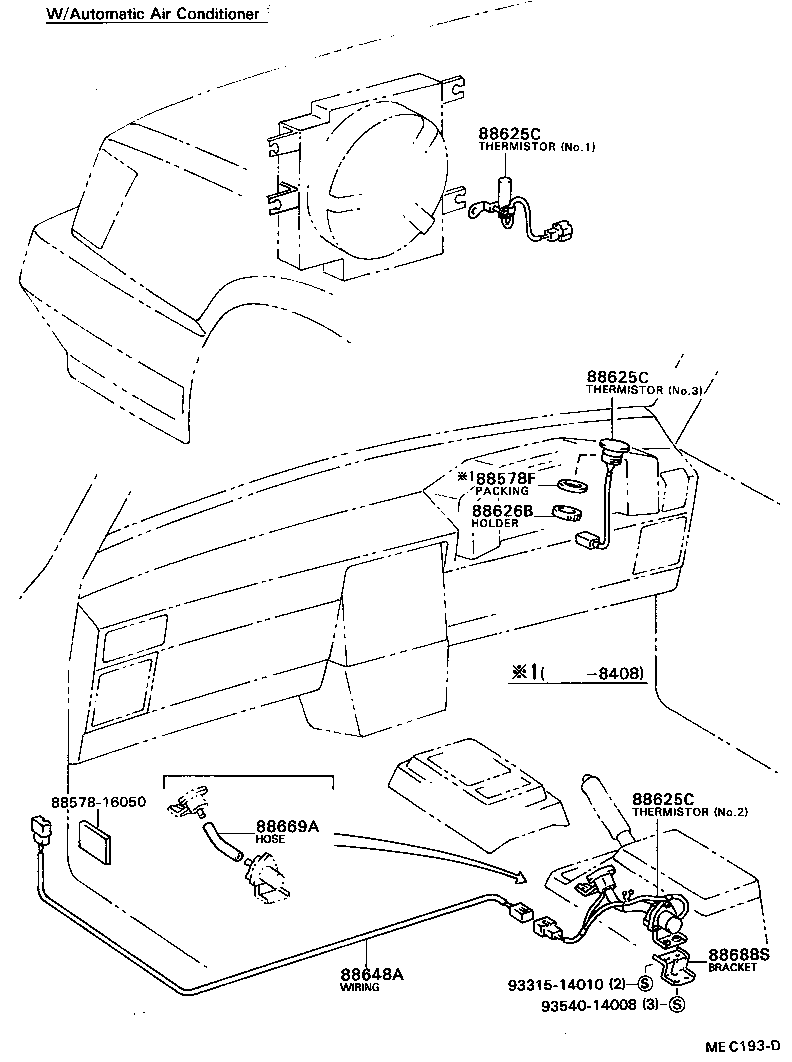

ILLUST NO. 3 OF 3(8205- )

Click highlighted areas on diagram

diagram 8857816050 88578F 88625C 88625C 88625C 88626B 88648A 88669A 88688S 9331514010 9354014008
Part # Description Qty Price
88578F - PACKING(FOR THERMISTOR)
88578-16040

AL21..EX,SX,VE,VS

W/*AAC

 1
88625C - THERMISTOR, COOLER
88625-16050

AL21,25..EX,SX,VE,VS

W/*AAC,NO.3

 1
88625-16040

AL21,25..EX,SX,VE,VS

W/*AAC,NO.1

 1
88790-16010

AL21,25..EX,SX,VE,VS

W/*AAC,NO.2

 1
88625C - THERMISTOR, COOLER
88625-16050

AL21,25..EX,SX,VE,VS

W/*AAC,NO.3

 1
88625-16040

AL21,25..EX,SX,VE,VS

W/*AAC,NO.1

 1
88790-16010

AL21,25..EX,SX,VE,VS

W/*AAC,NO.2

 1
88625C - THERMISTOR, COOLER
88625-16050

AL21,25..EX,SX,VE,VS

W/*AAC,NO.3

 1
88625-16040

AL21,25..EX,SX,VE,VS

W/*AAC,NO.1

 1
88790-16010

AL21,25..EX,SX,VE,VS

W/*AAC,NO.2

 1
88626B - HOLDER, THERMISTOR
88626-24010

AL21,25..EX,SX,VE,VS

W/*AAC

 1
88648A - WIRING, COOLER
88648-16100

AL21,25..EX,SX,VE,VS

W/*AAC

 1
88669A - HOSE (FOR COOLER THERMISTOR)
88669-16020

AL21..SX,VS

W/*AAC

 1
88688S - BRACKET (FOR COOLER THERMISTOR)
88688-16050

AL21..SX,VS

W/*AAC

 1
Common parts
88578-16050
93315-14010
93540-14008
