AL21-LEMSH (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

Click highlighted areas on diagram

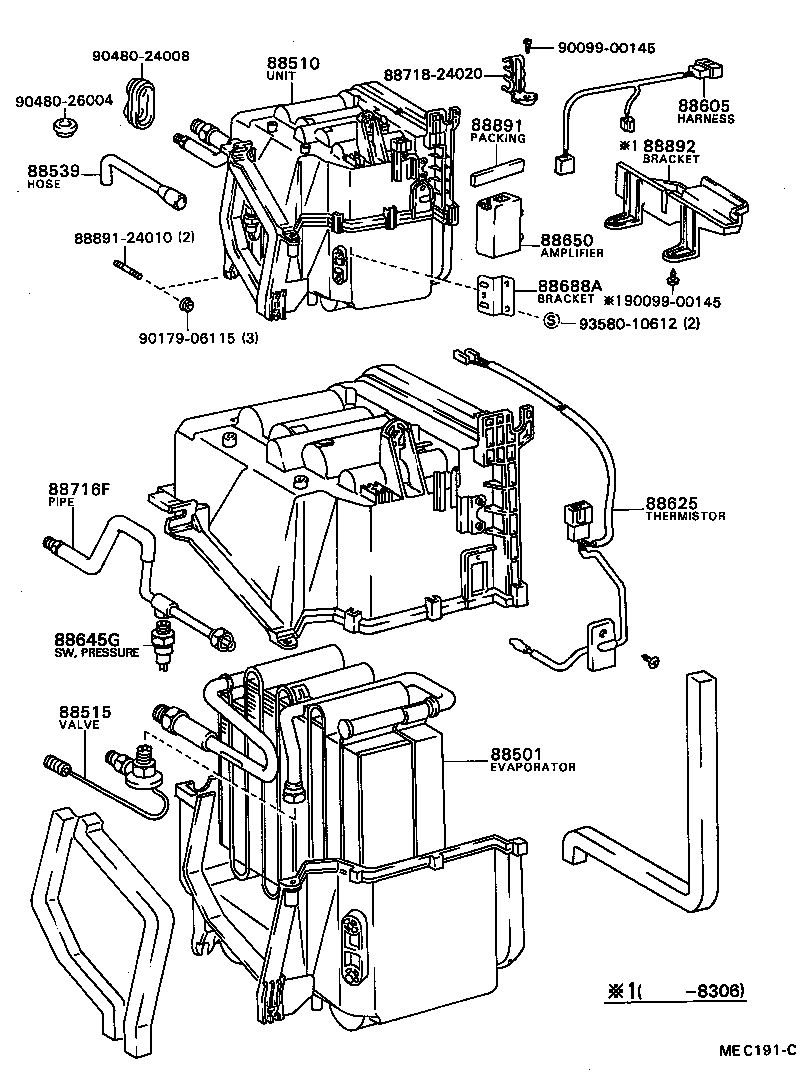

diagram 88501 88510 88515 88539 88605 88625 88645G 88650 88688A 88716F 8871824020 88891 8889124010 88892 9009900145 9009900145 9017906115 9048024008 9048026004 9358010612
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16060

AL2#

 1
88510 - UNIT ASSY, COOLER
88510-16080

AL2#

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

AL2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16020

AL2#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-16110

AL21,25..EX,SX,VE,VS

W/*AAC

 1
88605-16130

AL2#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-16060

AL2#

 1
88645G - SWITCH, PRESSURE
88645-12020

AL2#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16030

AL2#

OD=32.5

 1
88650-16030

AL21

NO.1

 1
88650-16050

AL21,25..EX,SX,VE,VS

W/*AAC,NO.2

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16070

AL2#

NO.1

 1
88688-16020

AL21,25..EX,SX,VE,VS

W/*AAC,NO.2

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16160

AL2#

 1
88891 - PACKING (FOR COOLER)
88892-16100

AL2#

 2
88892 - BRACKET, COOLER EVAPORATOR MOUNTING
88892-16060

AL2#

 1
Common parts
88718-24020
88891-24010
90099-00145
90179-06115
90480-24008
90480-26004
93580-10612

(8205- )

Click highlighted areas on diagram

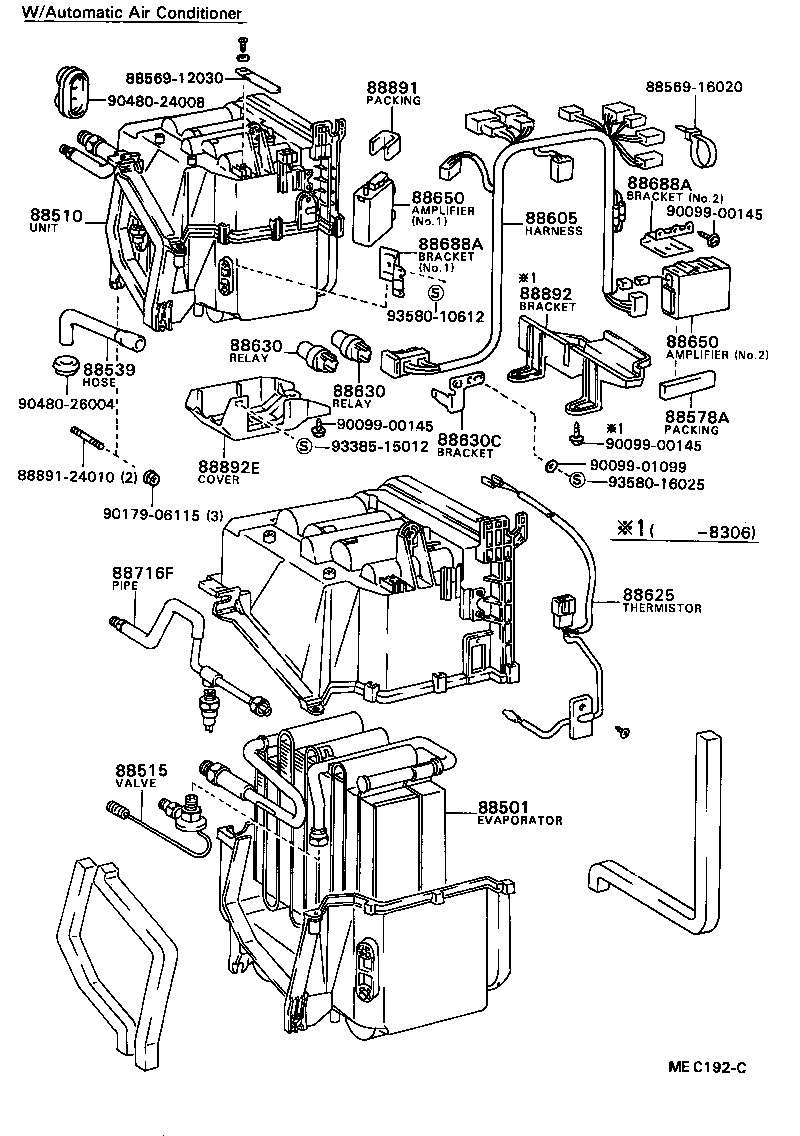

diagram 88501 88510 88515 88539 8856912030 8856916020 88578A 88605 88625 88630 88630 88630C 88650 88650 88688A 88688A 88716F 88891 8889124010 88892 88892E 9009900145 9009900145 9009900145 9009901099 9017906115 9048024008 9048026004 9338515012 9358010612 9358016025
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16060

AL2#

 1
88510 - UNIT ASSY, COOLER
88510-16080

AL2#

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

AL2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16020

AL2#

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-14050

AL21,25..EX,SX,VE,VS

W/*AAC

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-16110

AL21,25..EX,SX,VE,VS

W/*AAC

 1
88605-16130

AL2#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-16060

AL2#

 1
88630 - RELAY ASSY, COOLER
90987-03001

AL21,25..EX,SX,VE,VS

W/*AAC

 2
88630 - RELAY ASSY, COOLER
90987-03001

AL21,25..EX,SX,VE,VS

W/*AAC

 2
88630C - BRACKET, COOLER RELAY
88688-16100

AL21,25..EX,SX,VE,VS

W/*AAC

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16030

AL2#

OD=32.5

 1
88650-16030

AL21

NO.1

 1
88650-16050

AL21,25..EX,SX,VE,VS

W/*AAC,NO.2

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16030

AL2#

OD=32.5

 1
88650-16030

AL21

NO.1

 1
88650-16050

AL21,25..EX,SX,VE,VS

W/*AAC,NO.2

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16070

AL2#

NO.1

 1
88688-16020

AL21,25..EX,SX,VE,VS

W/*AAC,NO.2

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16070

AL2#

NO.1

 1
88688-16020

AL21,25..EX,SX,VE,VS

W/*AAC,NO.2

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16160

AL2#

 1
88891 - PACKING (FOR COOLER)
88892-16100

AL2#

 2
88892 - BRACKET, COOLER EVAPORATOR MOUNTING
88892-16060

AL2#

 1
88892E - COVER, RELAY
88891-16010

AL21,25..EX,SX,VE,VS

W/*AAC

 1
Common parts
88569-12030
88569-16020
88891-24010
90099-00145
90099-01099
90179-06115
90480-24008
90480-26004
93385-15012
93580-10612
93580-16025
