AL21-LEMSH (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

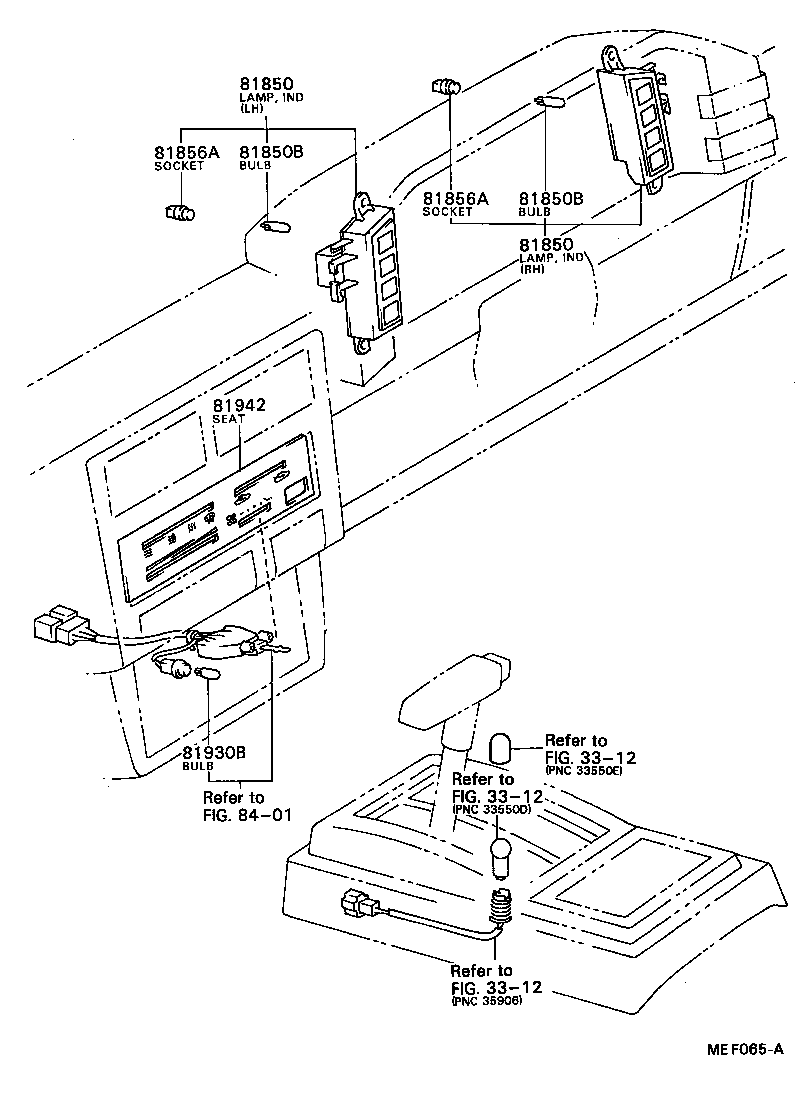

Click highlighted areas on diagram

diagram 3312 3312 3312 81850 81850 81850B 81850B 81856A 81856A 81930B 81942 8401
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-16040

AL21..EX,SX,VE,VS

LH

 1
81850-16020

AL2#

RH

 1
81850 - LAMP ASSY, INDICATOR
81850-16040

AL21..EX,SX,VE,VS

LH

 1
81850-16020

AL2#

RH

 1
81850B - BULB, INDICATOR LAMP
90981-11018

AL2#

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 8
81850B - BULB, INDICATOR LAMP
90981-11018

AL2#

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 8
81856A - SOCKET, INDICATOR LAMP
83101-14040

AL2#

 8
81856A - SOCKET, INDICATOR LAMP
83101-14040

AL2#

 8
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11014

AL2#

14V 1.4W,12V 1.4W

 1
81942 - SHEET, HEATER CONTROL NAME
81942-16040

AL21..EX,SX,VE,VS

W/AUTOMATIC AIR CONDITIONER

 1
81942-16020

AL2#

 1
Linked diagrams
3312
8401
