AL21-LEMSH (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)CRS..4DS

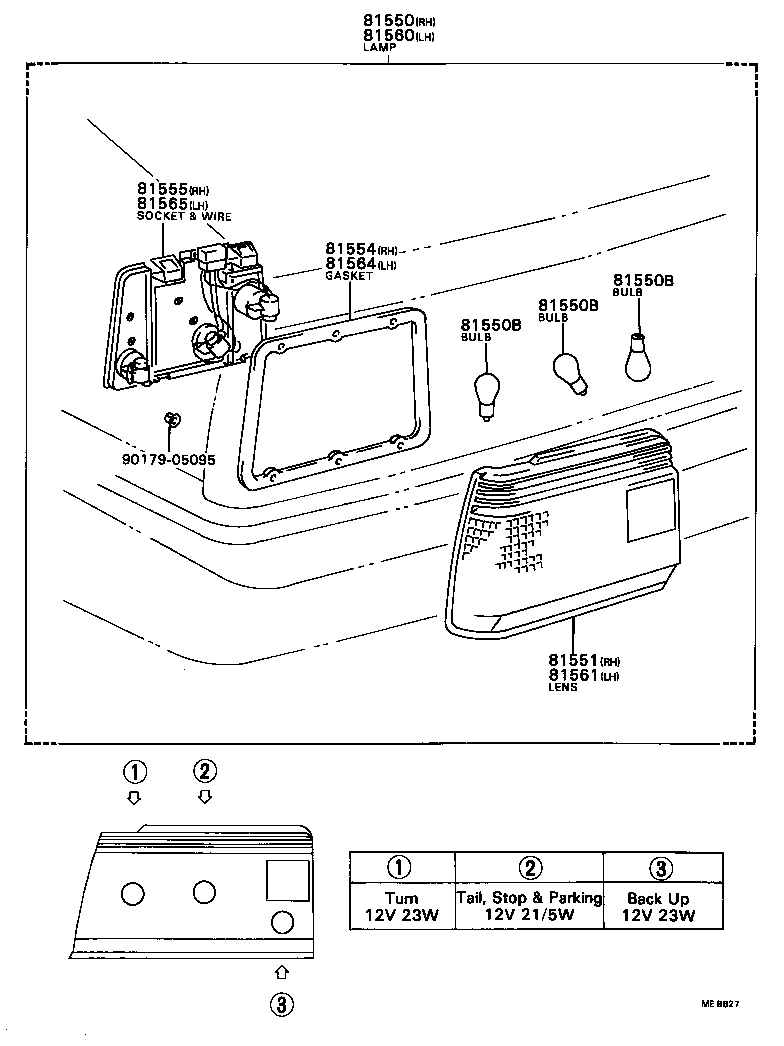

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80128

AL2#..CRS..4DS

 1
81550-80170

AL2#..CRS..4DS

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AL2#

12V 21/5W,12V 21/5W

 2
99132-11230

AL2#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AL2#

12V 21/5W,12V 21/5W

 2
99132-11230

AL2#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AL2#

12V 21/5W,12V 21/5W

 2
99132-11230

AL2#

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-16191

AL2#..CRS..4DS

 1
81551-16190

AL2#..CRS..4DS

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-16200

AL2#..4DS

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-16190

AL2#..CRS..4DS

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80132

AL2#..CRS..4DS

 1
81560-80175

AL2#..CRS..4DS

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-16190

AL2#..CRS..4DS

 1
81561-16191

AL2#..CRS..4DS

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-16200

AL2#..4DS

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-16190

AL2#..CRS..4DS

 1
Common parts
90179-05095
