AL21-LEMSH (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)CRS

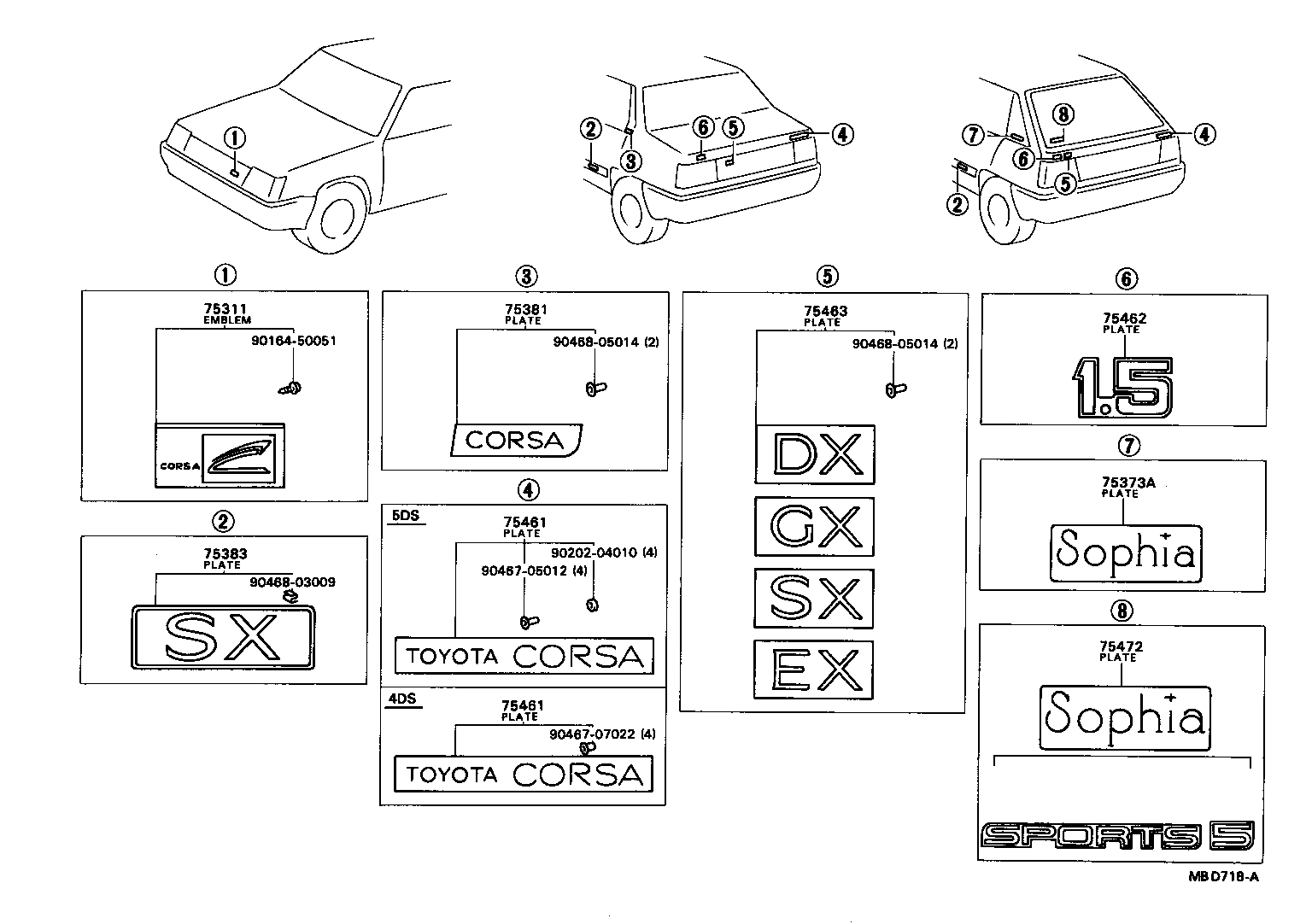

Click highlighted areas on diagram

diagram 75311 75373A 75381 75383 75461 75461 75462 75463 75472 9016450051 9020204010 9046705012 9046707022 9046803009 9046805014 9046805014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80019

AL2#..CRS

 1
75381 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)
75382-16070

AL2#..CRS..4DS

LH,CORSA

 1
75381-16070

AL2#..CRS..4DS

RH,CORSA

 1
75383 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (GRADE MARK)
75385-16040

AL21..SX

SX

 2
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16090

AL2#..CRS..4DS

TOYOTA CORSA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16090

AL2#..CRS..4DS

TOYOTA CORSA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75443-16020

AL21

1.5

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-16050

AL21..SX

SX

 1
Common parts
90164-50051
90202-04010
90467-05012
90467-07022
90468-03009
90468-05014
