AL21-LEMSH (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

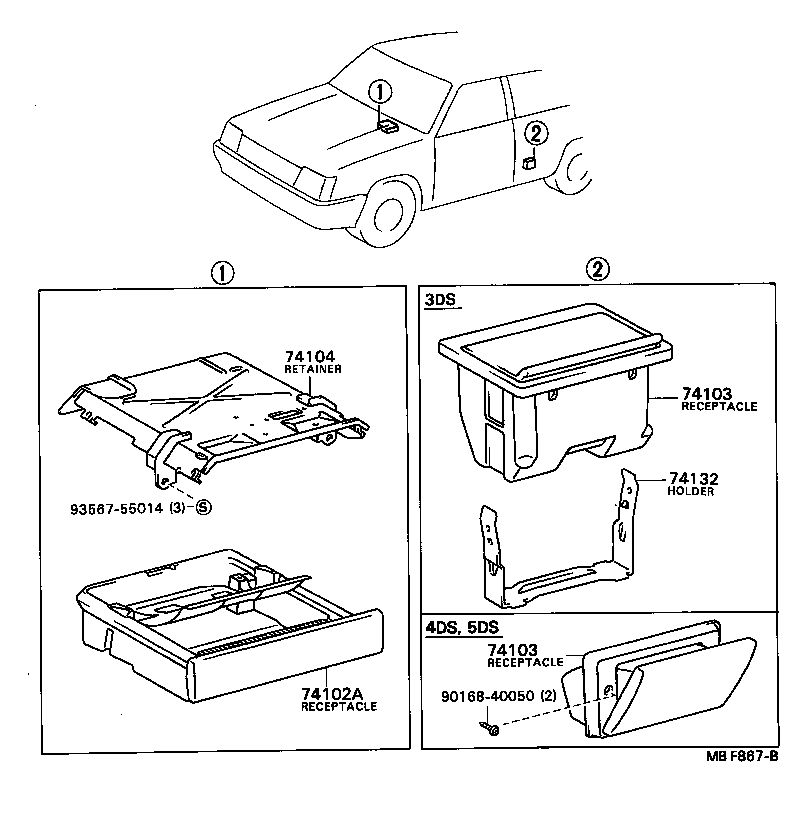

Click highlighted areas on diagram

diagram 74102A 74103 74103 74104 74132 9016840050 9356755014
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-16020

AL2#

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-1402002

AL2#..4DS,5DS

DARK WINE,DARK WINE,TRIM3#

 1
74130-1402046

AL2#..4DS,5DS

BROWN,BROWN,TRIM4#

 1
74130-1402013

AL2#..4DS,5DS

GRAY,GRAY,TRIM1#

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-1402002

AL2#..4DS,5DS

DARK WINE,DARK WINE,TRIM3#

 1
74130-1402046

AL2#..4DS,5DS

BROWN,BROWN,TRIM4#

 1
74130-1402013

AL2#..4DS,5DS

GRAY,GRAY,TRIM1#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-16020

AL2#

 1
Common parts
90168-40050
93567-55014
