AL21-LEKNS (1982)

Toyota Corsa/Tercel

Production May 1982 - Oct 1989
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

Click highlighted areas on diagram

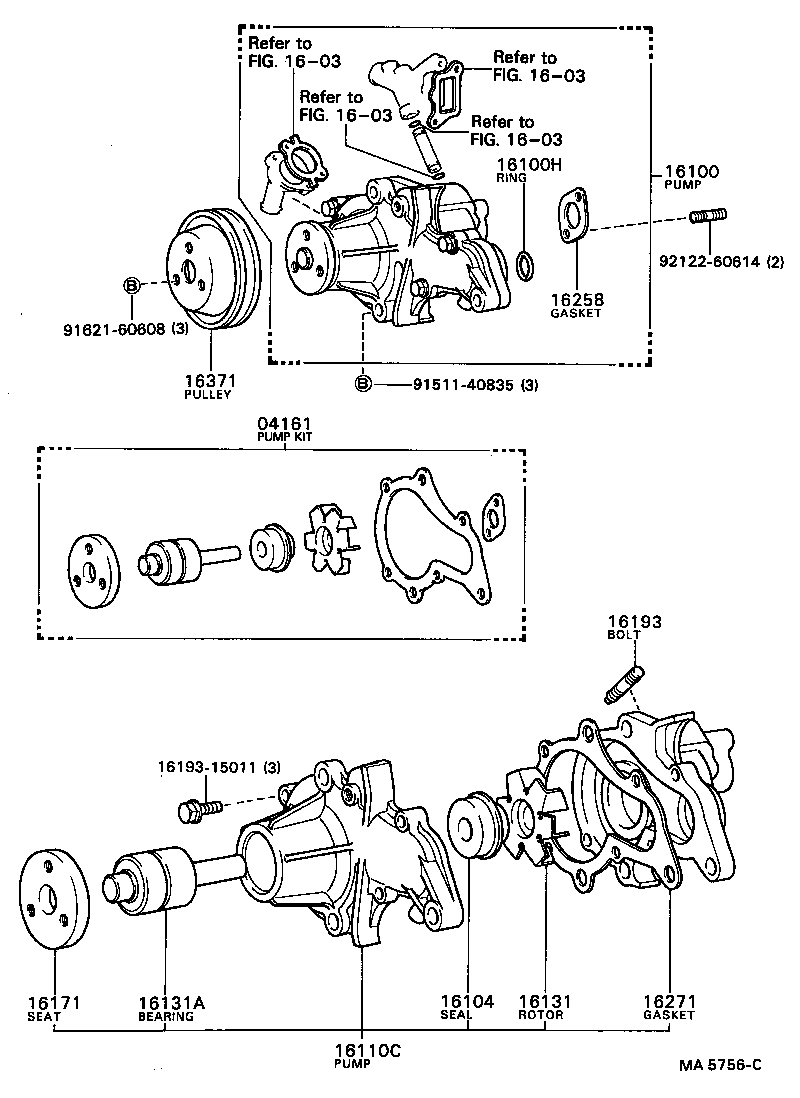

diagram 04161 1603 1603 1603 1603 16100 16100H 16104 16110C 16131 16131A 16171 16193 1619315011 16258 16271 16371 9151140835 9162160608 9212260614
Part # Description Qty Price
04161 - PUMP KIT, WATER
04161-15020

2AU,3A#..AL2#

 1
16100 - PUMP ASSY, ENGINE WATER
16100-19027

2AU,3A#..AL2#

 1
16100H - RING, O(FOR WATER PUMP)
96711-24035

2AU,3A#..AL2#

 1
16104 - SEAL SET, WATER PUMP
16104-41111

2AU,3A#..AL2#

 1
16104-15020

2AU,3A#..AL2#

 1
16110C - PUMP ASSY, WATER, W/O COVER
16110-19035

2AU,3A#..AL2#

 1
16131 - ROTOR, WATER PUMP
16131-15010

2AU,3A#..AL2#

 1
16131A - BEARING, WATER PUMP
90369-30024

2AU,3A#..AL2#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-15011

2AU,3A#..AL2#

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-15010

2AU,3A#..AL2#

 2
16258 - GASKET(FOR HEATER RETURN)
16258-15011

2AU,3A#..AL2#

 1
16271 - GASKET, WATER PUMP
16124-15010

2AU,3A#..AL2#

 1
16371 - PULLEY, FAN
16371-15011

2AU,3A#..AL2#

 1
Common parts
16193-15011
91511-40835
91621-60608
92122-60614
Linked diagrams
1603
