AL21-LEHNS (1982)
Toyota Corsa/Tercel

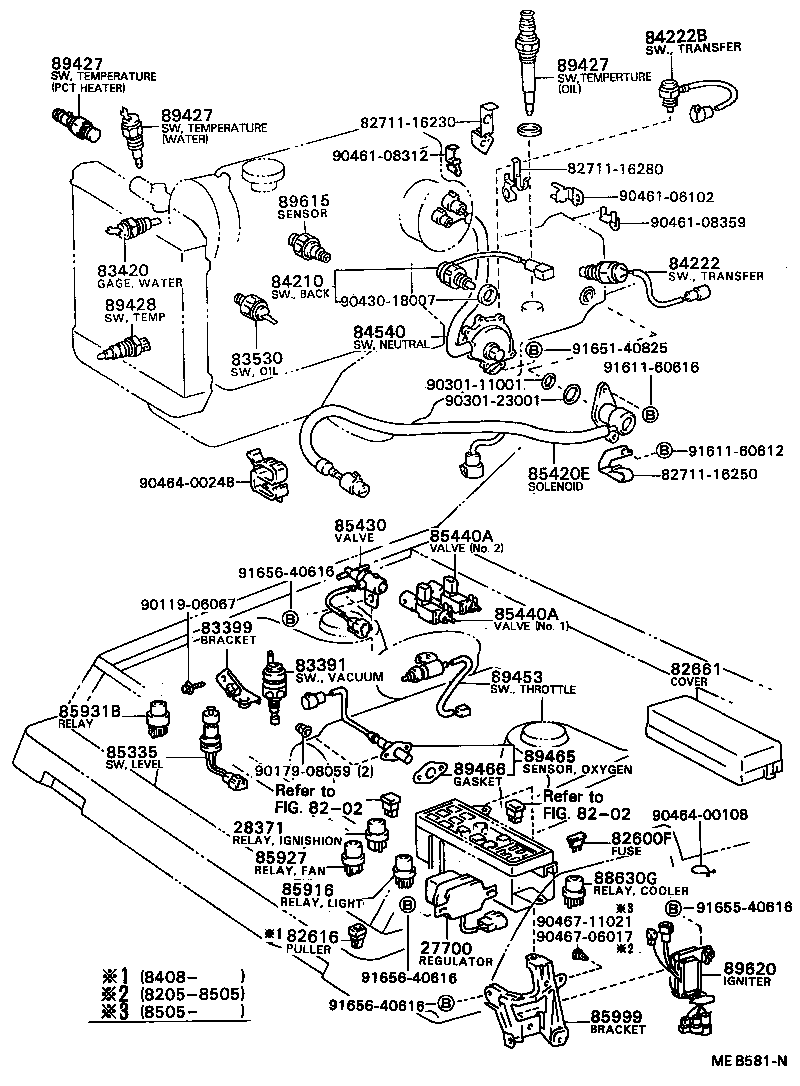

ILLUST NO. 1 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-15020 |
2AU,3A#..AL2# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02002 |
2AU,3A#..AL2# |
1 | ||
| 90987-02004 |
2AU,3A#..AL2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-09004 |
AL2# 20A,黄,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
8 | ||
| 90982-09005 |
AL2# 7.5A,7.5A |
8 | ||
| 90982-07011 |
AL2# 30A,ç·‘,30A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AL2# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16100 |
AL2# |
1 | ||
| 82661-16060 |
AL2# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16030 |
AL2# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AL2# |
1 | ||
| 83420-16010 |
AL2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
AL2# |
1 | ||
| 83530-30050 |
AL2# |
1 | ||
| 83530-30080 |
AL2# |
1 | ||
| 83530-14040 |
AL2# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16020 |
AL2#..3FC |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AL2# HEAD LAMP |
1 | ||
| 90987-01003 |
AL2# |
2 | ||
| 90987-02002 |
AL2# TAIL LAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
AL2# |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
AL2# |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-16030 |
AL2# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AL2# |
1 | ||
| 90987-01003 |
AL2# |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-16060 |
AL2# PTC HEATER TEMPERATURE |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-16060 |
AL2# PTC HEATER TEMPERATURE |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-16060 |
AL2# PTC HEATER TEMPERATURE |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
AL2# |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-14010 |
AL2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29085 |
AL2# |
1 | ||
| 89465-19065 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 89465-19067 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 89466-30010 |
AL2# |
1 | ||
| 89466-20020 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| Common parts | ||||
| 82711-16230 | ||||
| 82711-16250 | ||||
| 82711-16280 | ||||
| 90119-06067 | ||||
| 90179-08059 | ||||
| 90301-11001 | ||||
| 90301-23001 | ||||
| 90430-18007 | ||||
| 90461-06102 | ||||
| 90461-08312 | ||||
| 90461-08359 | ||||
| 90464-00108 | ||||
| 90464-00248 | ||||
| 90467-06017 | ||||
| 90467-11021 | ||||
| 91611-60612 | ||||
| 91611-60616 | ||||
| 91651-40825 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8202 | ||||

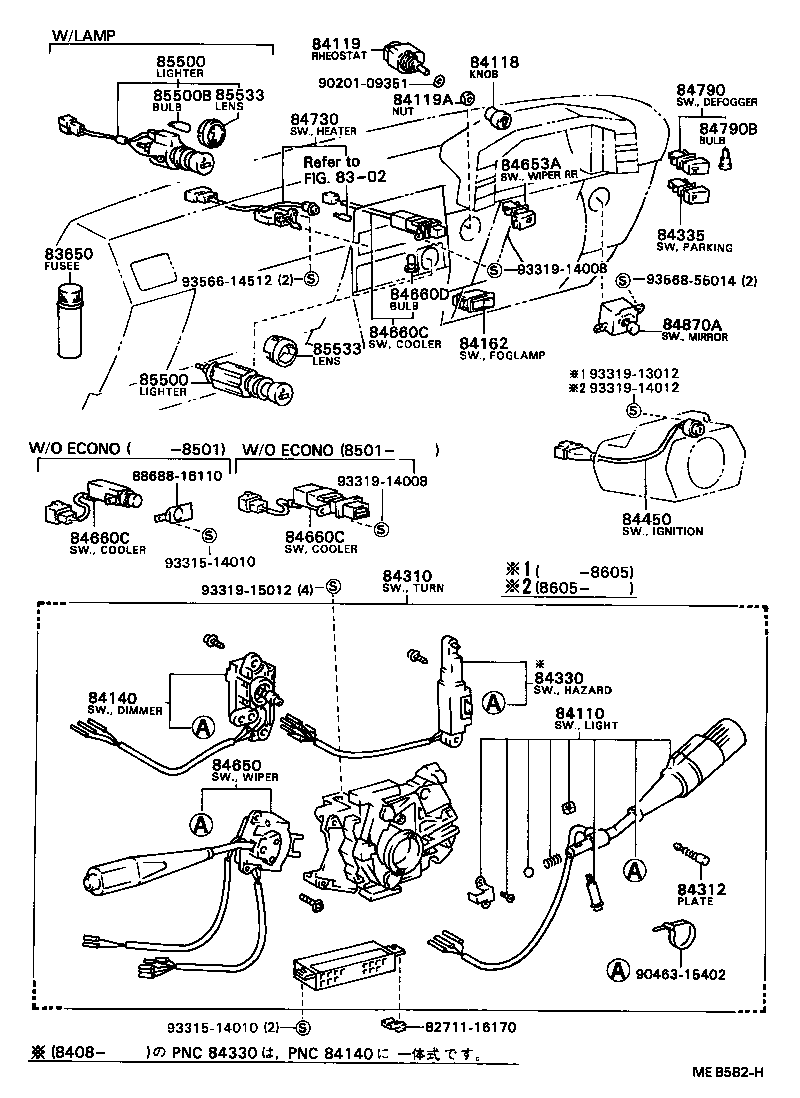

ILLUST NO. 2 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83650 - FUSEE | ||||
| 90986-01005 |
AL2# |
1 | ||
| 90986-01003 |
AL2# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19385 |
AL2# TOKAIRIKA |
1 | ||
| 84112-19365 |
AL2#..DX,GX,SX,VC,VL,VS MATSUSHITA |
1 | ||
| 84112-19665 |
AL21,25..GX,SX,VL,VS |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19155 |
AL2#..DX,GX,SX,VC,VL,VS MATSUSHITA |
1 | ||
| 84140-19175 |
AL2# TOKAIRIKA |
1 | ||
| 84140-19335 |
AL21,25..GX,SX,VL,VS |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16140 |
AL21,25..GX,SX,VL,VS |
1 | ||
| 84310-16090 |
AL21..GX,SX,VL,VS |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
AL2#..DX,GX,SX,VC,VL,VS MATSUSHITA |
1 | ||
| 84312-32010 |
AL21,25..GX,SX,VL,VS |
1 | ||
| 84312-32010 |
AL2# TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19125 |
AL2#..DX,GX,SX,VC,VL,VS MATSUSHITA |
1 | ||
| 84332-19145 |
AL2# TOKAIRIKA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-16020 |
AL2# |
1 | ||
| 84330-16021 |
AL2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
AL2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19595 |
AL21..GX,SX,VL,VS MATSUSHITA |
1 | ||
| 84652-19645 |
AL21..GX,SX,VL,VS TOKAIRIKA |
1 | ||
| 84652-80048 |
AL21,25..GX,SX,VL,VS |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16020 |
AL2# W/ECONO |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16020 |
AL2# W/ECONO |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16020 |
AL2# W/ECONO |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-32010 |
AL2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16030 |
AL2# |
1 | ||
| 84732-16031 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16031 |
AL2# |
1 | ||
| 84790-16030 |
AL2# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
AL2# 12V 1.12W |
1 | ||
| 84999-10170 |
AL2# 12V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-32010 |
AL2#..(4DS,5DS)..(EX,GX,VE,VL) |
1 | ||
| 84870-32011 |
AL2#..EX,GX,VE,VL |
1 | ||
| 84870-32011 |
AL2#..EX,GX,SX,VE,VL,VS |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10090 |
AL2#..DX,GX,VC,VL W/O LAMP |
1 | ||
| 85500-16060 |
AL2#..DX,GX,SX,VC,VL,VS W/O LAMP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10090 |
AL2#..DX,GX,VC,VL W/O LAMP |
1 | ||
| 85500-16060 |
AL2#..DX,GX,SX,VC,VL,VS W/O LAMP |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
AL2#..DX,GX,SX,VC,VL,VS W/O LAMP |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
AL2#..DX,GX,SX,VC,VL,VS W/O LAMP |
1 | ||
| Common parts | ||||
| 82711-16170 | ||||
| 88688-16110 | ||||
| 90201-09351 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13012 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||

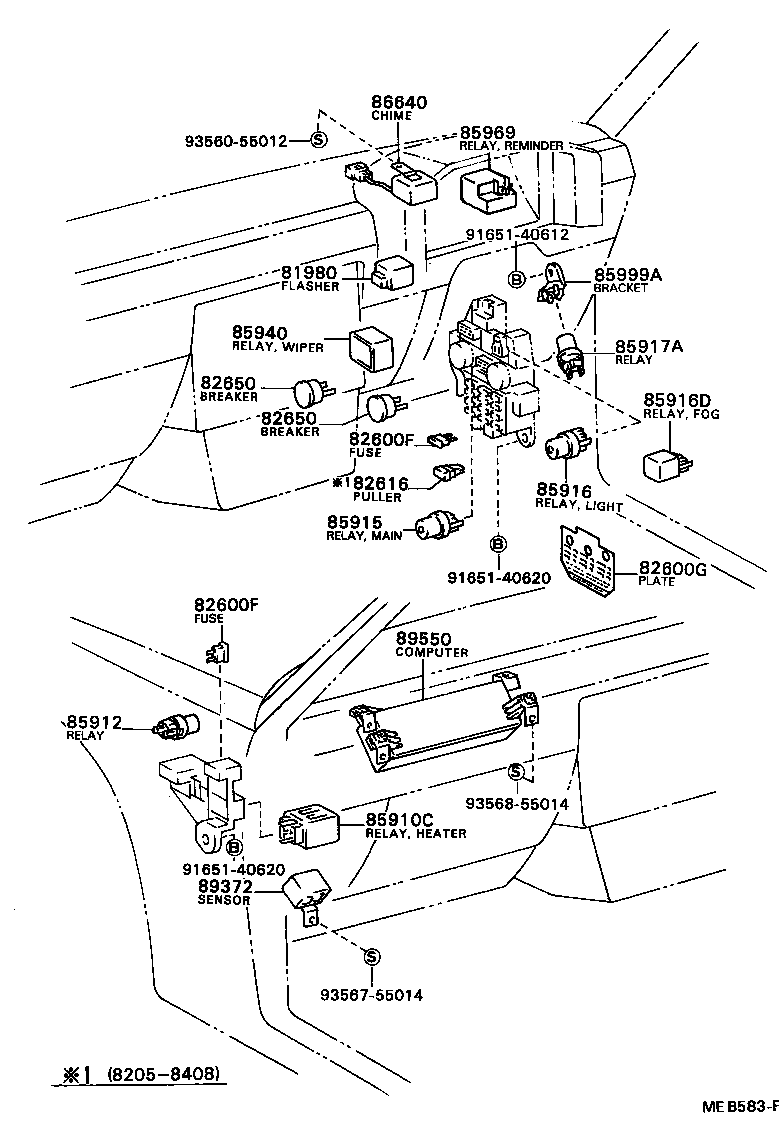

ILLUST NO. 3 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AL2# L=30X40 |
1 | ||
| 81980-16010 |
AL2# L=29.5X28.7 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-09004 |
AL2# 20A,黄,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
8 | ||
| 90982-09005 |
AL2# 7.5A,7.5A |
8 | ||
| 90982-07011 |
AL2# 30A,ç·‘,30A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-09004 |
AL2# 20A,黄,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
8 | ||
| 90982-09005 |
AL2# 7.5A,7.5A |
8 | ||
| 90982-07011 |
AL2# 30A,ç·‘,30A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 74555-16130 |
AL2# |
1 | ||
| 82683-16030 |
AL2# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AL2# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
AL2# 30A,TOKAIRIKA |
2 | ||
| 82650-20011 |
AL2# 30A,MATSUSHITA |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
AL2# 30A,TOKAIRIKA |
2 | ||
| 82650-20011 |
AL2# 30A,MATSUSHITA |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AL2# |
1 | ||
| 85913-30020 |
AL2# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
AL2# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AL2# HEAD LAMP |
1 | ||
| 90987-01003 |
AL2# |
2 | ||
| 90987-02002 |
AL2# TAIL LAMP |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12020 |
AL21..GX,SX,VL,VS |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-16040 |
AL2# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-16040 |
AL2#..3FC |
1 | ||
| 89550-16130 |
AL2#..3FC |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 93560-55012 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||

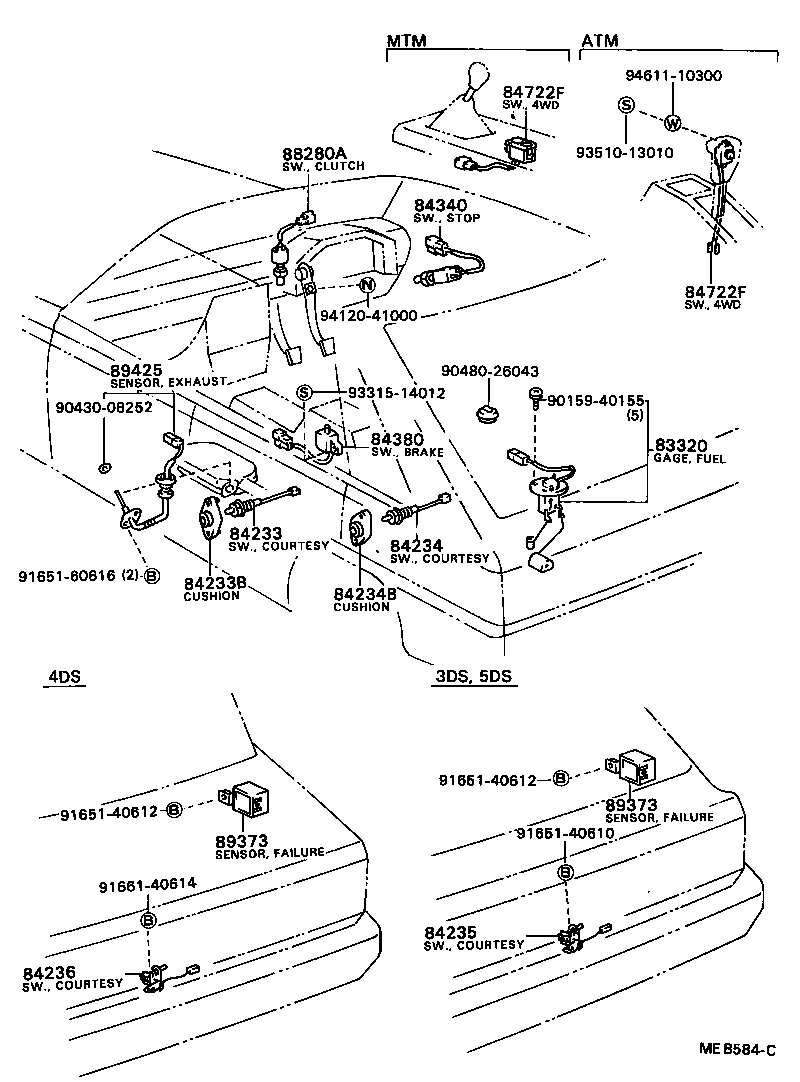

ILLUST NO. 4 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19695 |
AL20,21..DX,GX,VC,VL |
1 | ||
| 83320-19615 |
AL2#..DX,GX,VC,VL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
AL2# |
2 | ||
| 84231-28020 |
AL2# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
AL2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-28020 |
AL2# |
2 | ||
| 84231-20080 |
AL2#..4DS,5DS |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
AL2#..4DS,5DS |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AL2# |
1 | ||
| 84340-32010 |
AL2# TOKAIRIKA |
1 | ||
| 84340-30030 |
AL2# MATSUSHITA |
1 | ||
| 84340-32010 |
AL2# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84550-16010 |
AL2# |
1 | ||
| 84550-24010 |
AL2# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19305 |
AL2# MATSUSHITA |
1 | ||
| 89425-19345 |
AL2# DENSO |
1 | ||
| 89425-19255 |
AL2# |
1 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 90430-08252 | ||||
| 90480-26043 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 91661-40614 | ||||
| 93315-14012 | ||||
| 93510-13010 | ||||
| 94120-41000 | ||||
| 94611-10300 | ||||
