AL21-LEHNS (1982)
Toyota Corsa/Tercel
Production
May 1982
-
Oct 1989
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )

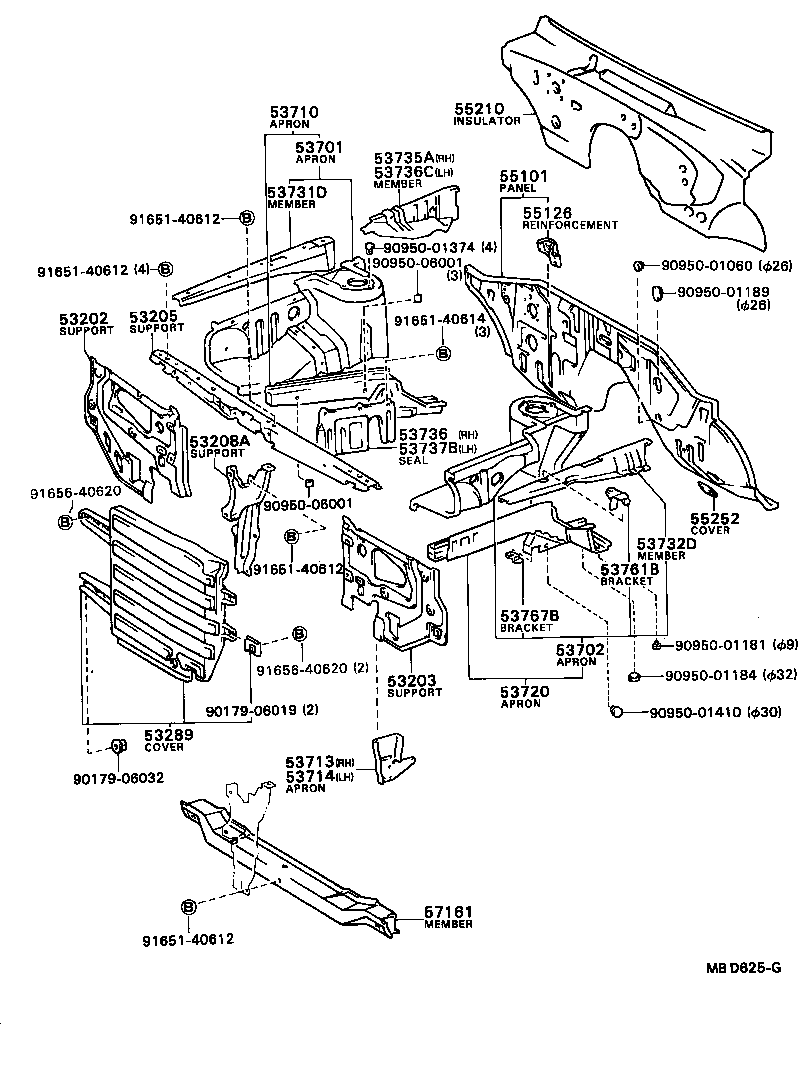

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-16030 |
AL2# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-16040 |
AL2# |
1 | ||
| 53203-16030 |
AL2# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-16010 |
AL2#..3FC |
1 | ||
| 53205-16010 |
AL2# |
1 | ||
| 53205-16040 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-16010 |
AL2# |
1 | ||
| 53208-16020 |
AL2# |
1 | ||
| 53289 - COVER, RADIATOR SIDE BAFFLE | ||||
| 53289-16020 |
AL21,25;AL20..GX,VL;AL20..(4DS,5DS)..(DX,VC) |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-16060 |
AL2# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-16060 |
AL2# |
1 | ||
| 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH | ||||
| 53701-16902 |
AL2# |
1 | ||
| 53701-16903 |
AL2# |
1 | ||
| 53701-16902 |
AL2#..3FC |
1 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53713-16030 |
AL2# PLANT.P11 |
1 | ||
| 53713-16030 |
AL2# |
1 | ||
| 53713-16040 |
AL2# *GIS |
1 | ||
| 53713-16030 |
AL2# |
1 | ||
| 53713-16040 |
AL2# PLANT.A31-A32 |
1 | ||
| 53713-16040 |
AL2# *GIS |
1 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53714-16030 |
AL2# PLANT.P11 |
1 | ||
| 53714-16040 |
AL2# PLANT.A31-A32 |
1 | ||
| 53714-16030 |
AL2# |
1 | ||
| 53714-16040 |
AL2# *GIS |
1 | ||
| 53714-16040 |
AL2# *GIS |
1 | ||
| 53714-16030 |
AL2# |
1 | ||
| 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH | ||||
| 53702-16905 |
AL2# |
1 | ||
| 53702-16902 |
AL2# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-16010 |
AL2# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-16010 |
AL2# |
1 | ||
| 53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH | ||||
| 53735-16010 |
AL2# |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-16030 |
AL2# |
1 | ||
| 53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH | ||||
| 53706-16010 |
AL2# |
1 | ||
| 53736-16040 |
AL2# |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-16030 |
AL2# |
1 | ||
| 53761B - BRACKET, BATTERY CLAMP MOUNTING | ||||
| 53761-16030 |
AL2# |
1 | ||
| 53767B - BRACKET, BATTERY WIRRING HARNESS | ||||
| 53767-20040 |
AL2# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-16150 |
AL2#..3FC |
1 | ||
| 55101-16330 |
AL2#..3FC |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-16050 |
AL2# |
1 | ||
| 55210-16030 |
AL2# |
1 | ||
| 55252 - COVER, DASH PANEL HOLE | ||||
| 55129-16010 |
AL2# |
2 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-16030 |
AL2# |
1 | ||
| 57104-16040 |
AL2# |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-06032 | ||||
| 90950-01060 | ||||
| 90950-01181 | ||||
| 90950-01184 | ||||
| 90950-01189 | ||||
| 90950-01374 | ||||
| 90950-01410 | ||||
| 90950-06001 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
