AL20-ZHKNS (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

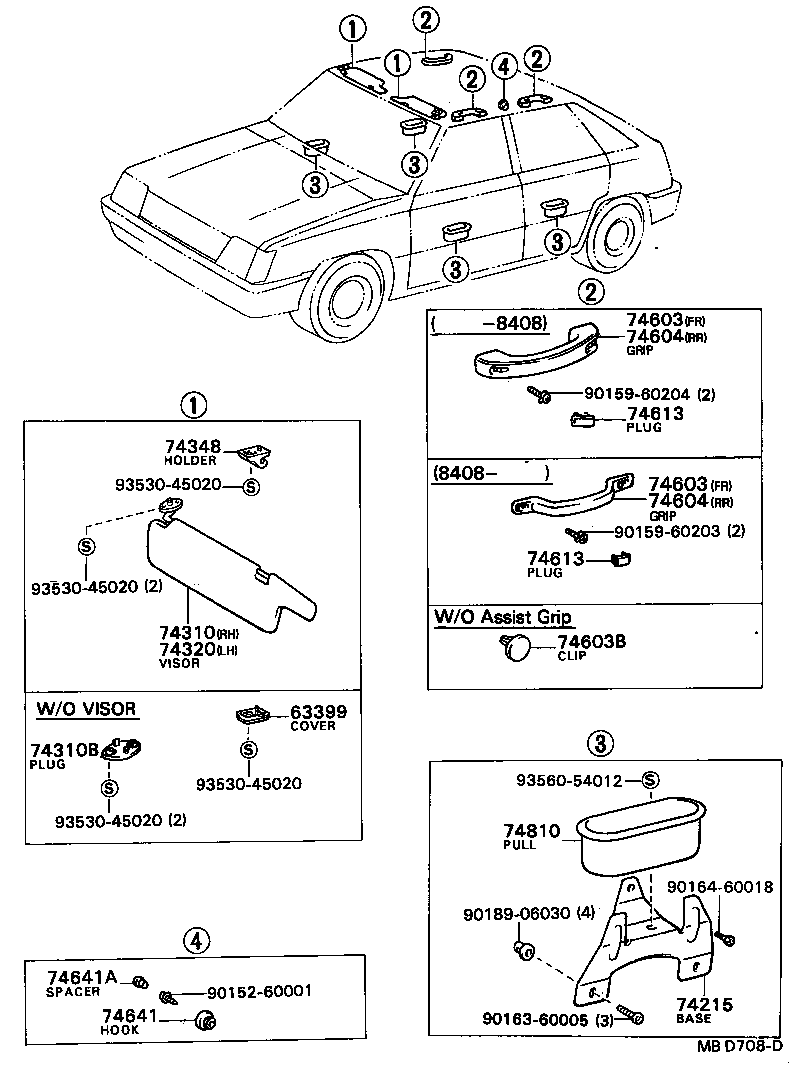

Click highlighted areas on diagram

diagram 63399 74215 74310 74310B 74320 74348 74603 74603 74603B 74604 74604 74613 74613 74641 74641A 74810 9015260001 9015960203 9015960204 9016360005 9016460018 9018906030 9353045020 9353045020 9353045020 9353045020 9356054012
Part # Description Qty Price
74215 - BASE, DOOR ARMREST
74215-16010

AL2#

 4
74310 - VISOR ASSY, RH
74310-16120

AL2#..DX,GX,VC,VL

IVORY

 1
74310-1622108

AL20,21..(3DS,5DS)..(GX,VL)

SOPHIA OR CUTIE,IVORY,IVORY

 1
74310-1612108

AL2#..DX,GX,VC,VL

IVORY,IVORY

 1
74310-16220

AL2#..(3DS,5DS)..VL

CUTIE,IVORY

 1
74320 - VISOR ASSY, LH
74320-16110

AL2#..DX,GX,SX,VC,VL,VS

IVORY

 1
74320-16120

AL2#..EX,GX,SX,VE,VL,VS

W/MIRROR,IVORY

 1
74320-1623008

AL20,21..DX,GX,SX,VC,VL,VS

IVORY,IVORY

 1
74348 - HOLDER, VISOR
74348-3201008

AL2#

IVORY,IVORY

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1203008

AL2#

IVORY,IVORY

 1
74610-1002018

AL2#

IVORY,IVORY

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1203008

AL2#

IVORY,IVORY

 1
74610-1002018

AL2#

IVORY,IVORY

 1
74603B - CLIP (FOR ASSIST GRIP)
90467-0604808

AL2#

IVORY,IVORY

 8
90467-0700718

AL2#

IVORY,IVORY

 5
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-1002018

AL2#..4DS,5DS

IVORY,IVORY

 2
74610-1203008

AL2#..4DS,5DS

IVORY,IVORY

 2
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-1002018

AL2#..4DS,5DS

IVORY,IVORY

 2
74610-1203008

AL2#..4DS,5DS

IVORY,IVORY

 2
74613 - PLUG, ASSIST GRIP
74617-1401018

AL2#

IVORY,IVORY

 6
74617-1601008

AL2#

IVORY,IVORY

 6
74613 - PLUG, ASSIST GRIP
74617-1401018

AL2#

IVORY,IVORY

 6
74617-1601008

AL2#

IVORY,IVORY

 6
74810 - PULL ASSY, DOOR, INSIDE
74811-1601002

AL2#

DARK WINE,RED/MAROON,TRIM3#

 4
74811-1601013

AL2#

GRAY,GRAY,TRIM1#

 4
74811-1601003

AL2#

GRAY,GRAY,TRIM1#

 4
74811-1601006

AL2#

BROWN,BROWN,TRIM4#

 4
74811-1601002

AL20,21..(3DS,5DS)..(GX,VL)

DARK WINE,RED/MAROON,TRIM3#

 4
Common parts
90152-60001
90159-60203
90159-60204
90163-60005
90164-60018
90189-06030
93530-45020
93560-54012
