AL20-ZHKDS (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

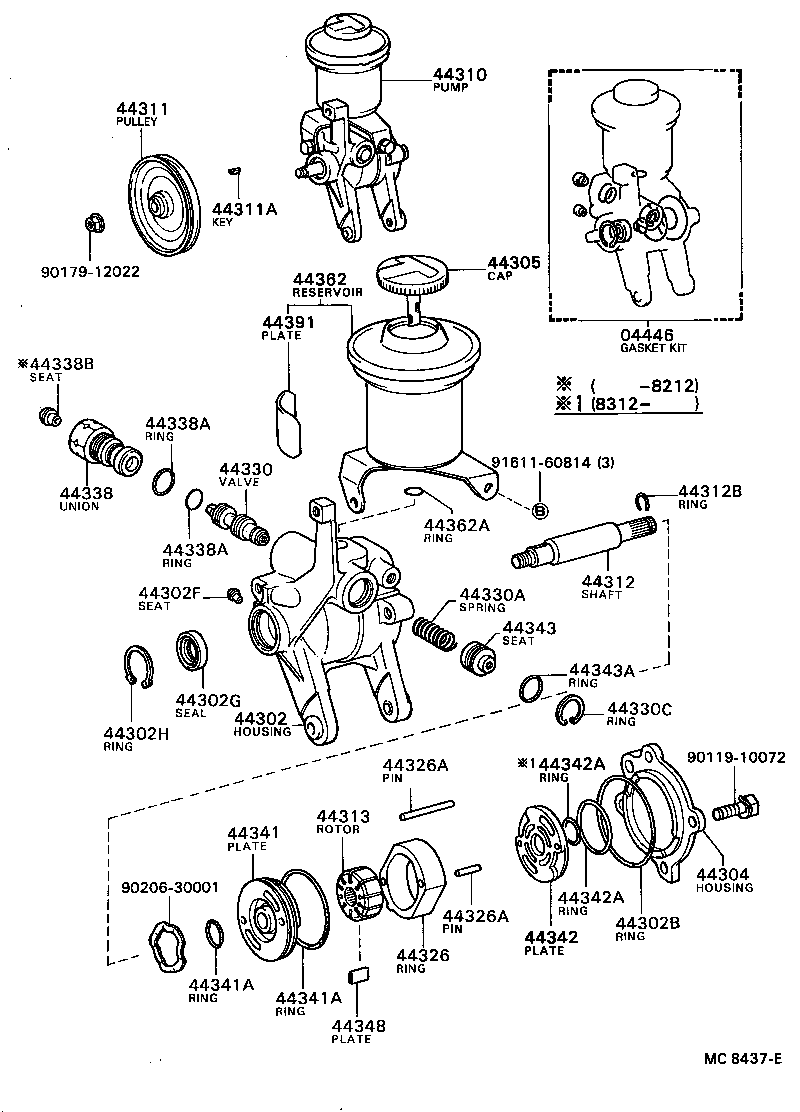

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302F 44302G 44302H 44304 44305 44310 44311 44311A 44312 44312B 44313 44326 44326A 44326A 44330 44330A 44330C 44338 44338A 44338A 44338B 44341 44341A 44341A 44342 44342A 44342A 44343 44343A 44348 44362 44362A 44391 9011910072 9017912022 9020630001 9161160814
Part # Description Qty Price
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-16010

AL2#

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12447

AL2#

 1
44338 - UNION, PRESSURE PORT
44308-32011

AL2#

 1
Common parts
90119-10072
90179-12022
90206-30001
91611-60814
