AL20-ZHHNS (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 2AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)

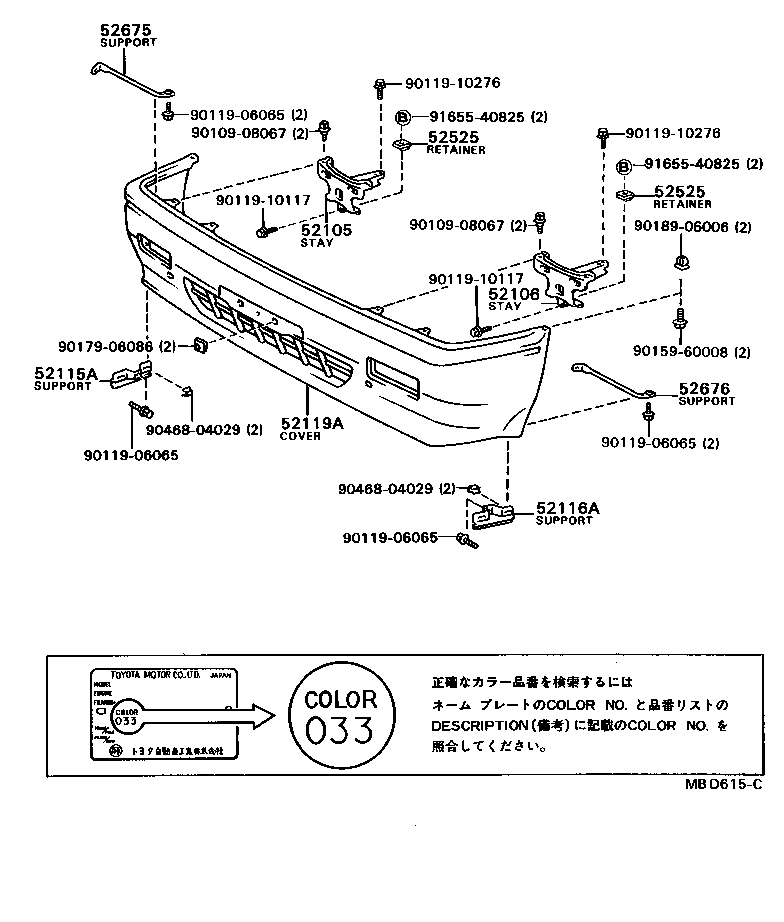

Click highlighted areas on diagram

diagram 52105 52106 52115A 52116A 52119A 52525 52525 52675 52676 9010908067 9010908067 9011906065 9011906065 9011906065 9011906065 9011910117 9011910117 9011910276 9011910276 9015960008 9017906086 9018906006 9046804029 9046804029 9165540825 9165540825
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-16050

AL2#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52011-16050

AL2#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-16050

AL2#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-16050

AL2#

 1
52119A - COVER, FRONT BUMPER
52119-1607003

AL2#

DARK GRAY,GRAY,4C3 ,558 ,884

 1
52119-1607003

AL2#

DARK GRAY,GRAY,038 ,147 ,884

 1
52119-1607013

AL2#

LIGHT GRAY,GRAY,038 ,147

 1
52119-1607003

AL2#

DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3

 1
52119-1607023

AL2#

0FF BLACK,GRAY,6G3 ,6G5 ,558 ,884

 1
52119-16130

AL2#

BLACK

 1
52119-1618002

AL20..(3DS,5DS)..(GX,VL)

SOPHIA,CUTIE,RED,RED,3E6

 1
52119-1618008

AL20..(3DS,5DS)..(GX,VL)

SOPHIA,CUTIE,WHITE,WHITE,041

 1
52119-1607023

AL2#

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52565-16020

AL2#

 4
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52565-16020

AL2#

 4
52675 - SUPPORT, FRONT BUMPER LOWER SIDE, RH
52675-16010

AL2#

 1
52676 - SUPPORT, FRONT BUMPER LOWER SIDE, LH
52676-16010

AL2#

 1
Common parts
90109-08067
90119-06065
90119-10117
90119-10276
90159-60008
90179-06086
90189-06006
90468-04029
91655-40825

(8408-8605)

Click highlighted areas on diagram

diagram 52105 52106 52119A 52119A 52127C 52525 52675 52676 9010908067 9011906074 9011908126 9011910048 9011910276 9015960038 9017906086 9046705035
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-16050

AL2#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52011-16050

AL2#

 1
52119A - COVER, FRONT BUMPER
52119-1607003

AL2#

DARK GRAY,GRAY,4C3 ,558 ,884

 1
52119-1607003

AL2#

DARK GRAY,GRAY,038 ,147 ,884

 1
52119-1607013

AL2#

LIGHT GRAY,GRAY,038 ,147

 1
52119-1607003

AL2#

DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3

 1
52119-1607023

AL2#

0FF BLACK,GRAY,6G3 ,6G5 ,558 ,884

 1
52119-16130

AL2#

BLACK

 1
52119-1618002

AL20..(3DS,5DS)..(GX,VL)

SOPHIA,CUTIE,RED,RED,3E6

 1
52119-1618008

AL20..(3DS,5DS)..(GX,VL)

SOPHIA,CUTIE,WHITE,WHITE,041

 1
52119-1607023

AL2#

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 1
52119A - COVER, FRONT BUMPER
52119-1607003

AL2#

DARK GRAY,GRAY,4C3 ,558 ,884

 1
52119-1607003

AL2#

DARK GRAY,GRAY,038 ,147 ,884

 1
52119-1607013

AL2#

LIGHT GRAY,GRAY,038 ,147

 1
52119-1607003

AL2#

DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3

 1
52119-1607023

AL2#

0FF BLACK,GRAY,6G3 ,6G5 ,558 ,884

 1
52119-16130

AL2#

BLACK

 1
52119-1618002

AL20..(3DS,5DS)..(GX,VL)

SOPHIA,CUTIE,RED,RED,3E6

 1
52119-1618008

AL20..(3DS,5DS)..(GX,VL)

SOPHIA,CUTIE,WHITE,WHITE,041

 1
52119-1607023

AL2#

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52565-16020

AL2#

 4
52675 - SUPPORT, FRONT BUMPER LOWER SIDE, RH
52675-16010

AL2#

 1
52676 - SUPPORT, FRONT BUMPER LOWER SIDE, LH
52676-16010

AL2#

 1
Common parts
90109-08067
90119-06074
90119-08126
90119-10048
90119-10276
90159-60038
90179-06086
90467-05035
