AL20-ZHHNS (1982)
Toyota Corsa/Tercel
Production
May 1982
-
May 1986
Engine
2AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )3FC

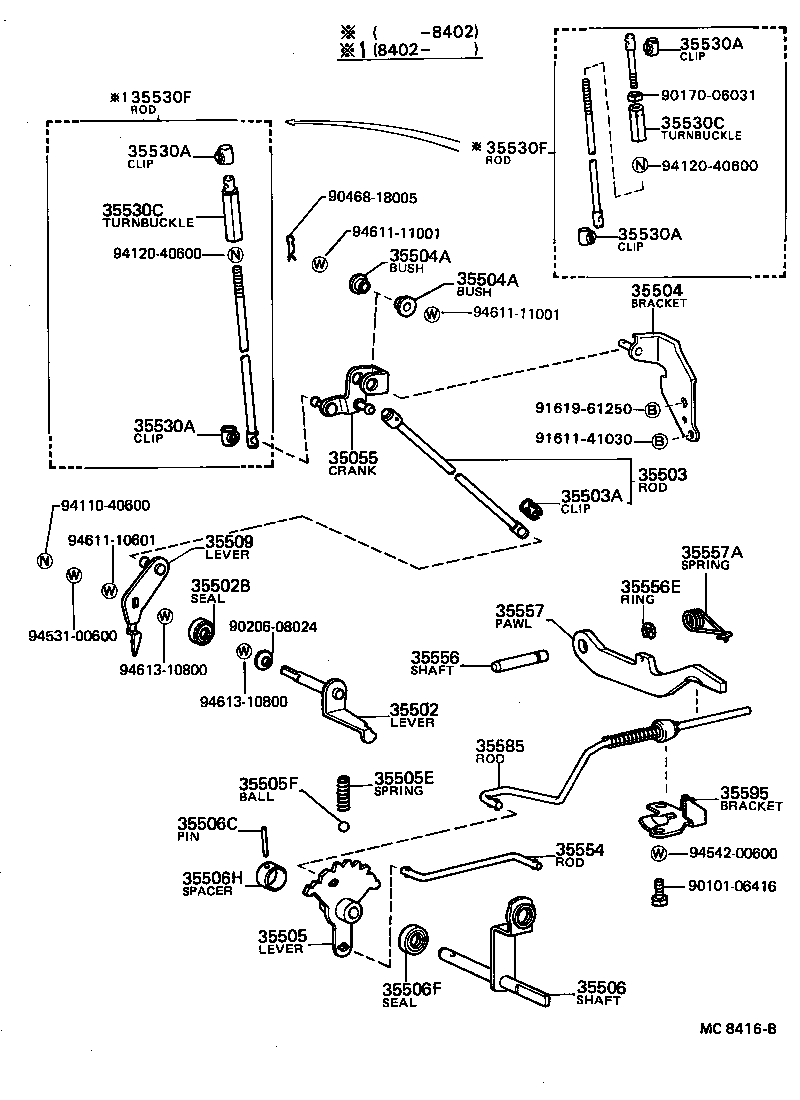

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35055 - CRANK SUB-ASSY, THROTTLE LINK BELL | ||||
| 35055-16010 |
AL2#..3FC |
1 | ||
| 35502 - LEVER SUB-ASSY, THROTTLE VALVE | ||||
| 35502-16010 |
AL2#..3FC |
1 | ||
| 35502B - SEAL, TYPE K OIL (FOR THROTTLE VALVE LEVER) | ||||
| 90311-08044 |
AL2#..3FC |
1 | ||
| 35503 - ROD SUB-ASSY, THROTTLE LINK CONNECTING, 1ST | ||||
| 35503-16010 |
AL2#..3FC |
1 | ||
| 35503A - CLIP(FOR THROTTLE LINK CONNECTING ROD) | ||||
| 78197-10010 |
AL2#..3FC |
2 | ||
| 35504 - BRACKET SUB-ASSY, THROTTLE BELLCRANK, NO.1 | ||||
| 35504-16030 |
AL2#..3FC |
1 | ||
| 35504A - BUSH (FOR THROT BELLCRANK BRACKET) | ||||
| 90386-10138 |
AL2#..3FC |
2 | ||
| 35504A - BUSH (FOR THROT BELLCRANK BRACKET) | ||||
| 90386-10138 |
AL2#..3FC |
2 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-16011 |
AL2#..3FC |
1 | ||
| 35505E - SPRING, COMPRESSION (FOR MANUAL VALVE LEVER) | ||||
| 90501-14042 |
AL2#..3FC |
1 | ||
| 35505F - BALL (FOR MANUAL VALVE LEVER) | ||||
| 90360-08009 |
AL2#..3FC |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35506-16011 |
AL2#..3FC |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-03004 |
AL2#..3FC |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-10082 |
AL2#..3FC |
1 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-19004 |
AL2#..3FC |
1 | ||
| 35509 - LEVER SUB-ASSY, THROTTLE VALVE, OUTER | ||||
| 35509-16010 |
AL2#..3FC |
1 | ||
| 35530A - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
AL2#..3FC |
2 | ||
| 90468-05064 |
AL2#..3FC |
2 | ||
| 35530A - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
AL2#..3FC |
2 | ||
| 90468-05064 |
AL2#..3FC |
2 | ||
| 35530A - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
AL2#..3FC |
2 | ||
| 90468-05064 |
AL2#..3FC |
2 | ||
| 35530A - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
AL2#..3FC |
2 | ||
| 90468-05064 |
AL2#..3FC |
2 | ||
| 35530C - TURNBUCKLE, THROTTLE LINK CONNECTING ROD, NO.2 | ||||
| 35542-30010 |
AL2#..3FC |
1 | ||
| 90587-06001 |
AL2#..3FC |
1 | ||
| 35530C - TURNBUCKLE, THROTTLE LINK CONNECTING ROD, NO.2 | ||||
| 35542-30010 |
AL2#..3FC |
1 | ||
| 90587-06001 |
AL2#..3FC |
1 | ||
| 35530F - ROD ASSY, THROTTLE LINK CONNECTING | ||||
| 35530-16010 |
AL2#..3FC |
1 | ||
| 35530-16011 |
AL2#..3FC |
1 | ||
| 35530F - ROD ASSY, THROTTLE LINK CONNECTING | ||||
| 35530-16010 |
AL2#..3FC |
1 | ||
| 35530-16011 |
AL2#..3FC |
1 | ||
| 35554 - ROD, MANUAL VALVE CONNECTING | ||||
| 35554-16010 |
AL2#..3FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-22010 |
AL2#..3FC |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
AL2#..3FC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-35010 |
AL2#..3FC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-25001 |
AL2#..3FC |
1 | ||
| 35585 - ROD, PARKING LOCK | ||||
| 35501-16013 |
AL2#..3FC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-16010 |
AL2#..3FC |
1 | ||
| Common parts | ||||
| 90101-06416 | ||||
| 90170-06031 | ||||
| 90206-08024 | ||||
| 90468-18005 | ||||
| 91611-41030 | ||||
| 91619-61250 | ||||
| 94110-40600 | ||||
| 94120-40600 | ||||
| 94531-00600 | ||||
| 94542-00600 | ||||
| 94611-10601 | ||||
| 94611-11001 | ||||
| 94613-10800 | ||||
