AL20-ZGKNS (1983)

Toyota Corsa/Tercel

Production Aug 1983 - May 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8605)

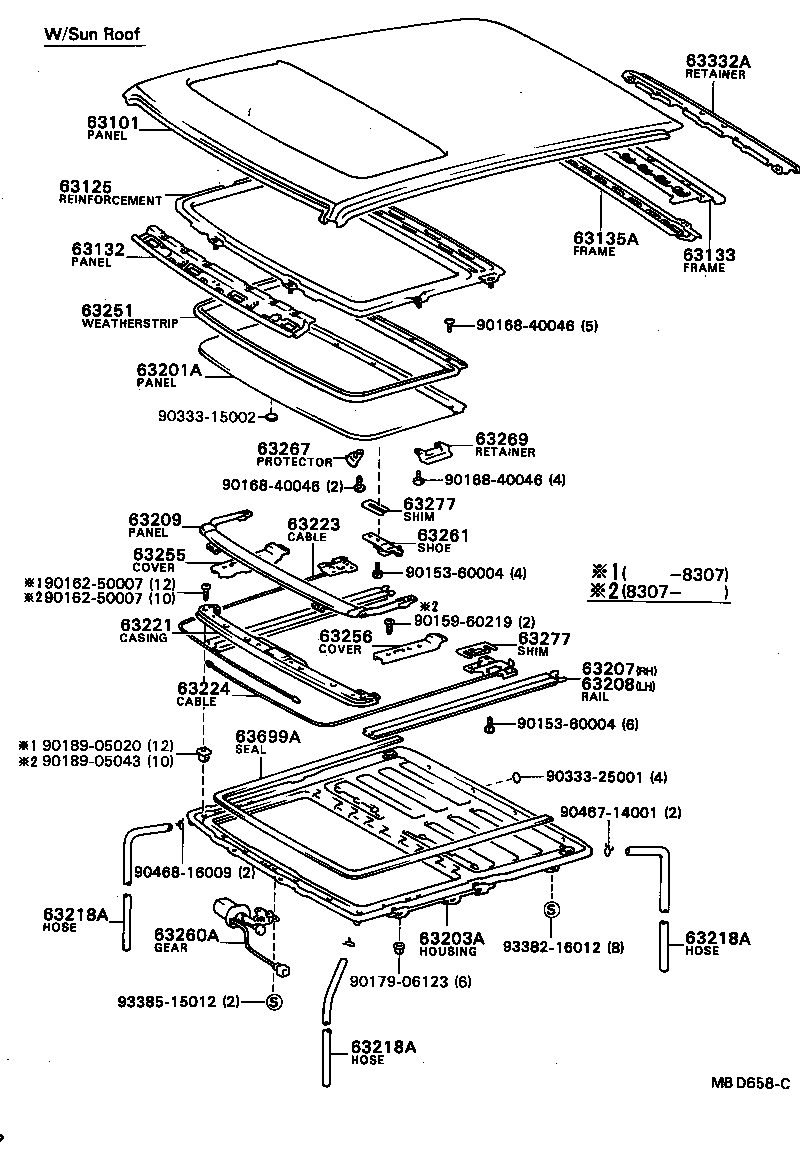

Click highlighted areas on diagram

diagram 63101 63125 63132 63133 63135A 63201A 63203A 63207 63208 63209 63218A 63218A 63218A 63221 63223 63224 63251 63255 63256 63260A 63261 63267 63269 63277 63277 63332A 63699A 9015360004 9015360004 9015960219 9016250007 9016250007 9016840046 9016840046 9016840046 9017906123 9018905020 9018905043 9033315002 9033325001 9046714001 9046816009 9338216012 9338515012
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-16080

AL20,21..3DS,5DS

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-16020

AL2#

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63134-16040

AL20,21..3DS,5DS

 1
63134-16020

AL20,21..3DS,5DS

 1
63135A - FRAME, BACK DOOR OPENING, LOWER
63135-16020

AL20,21..3DS,5DS

 1
63332A - RETAINER, ROOF HEADLINING, REAR
63383-16010

AL20,21..3DS,5DS

 1
Common parts
90153-60004
90159-60219
90162-50007
90168-40046
90179-06123
90189-05020
90189-05043
90333-15002
90333-25001
90467-14001
90468-16009
93382-16012
93385-15012
