AL20-ZGHNS (1983)

Toyota Corsa/Tercel

Production Aug 1983 - May 1986
Engine 2AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8605)3DS

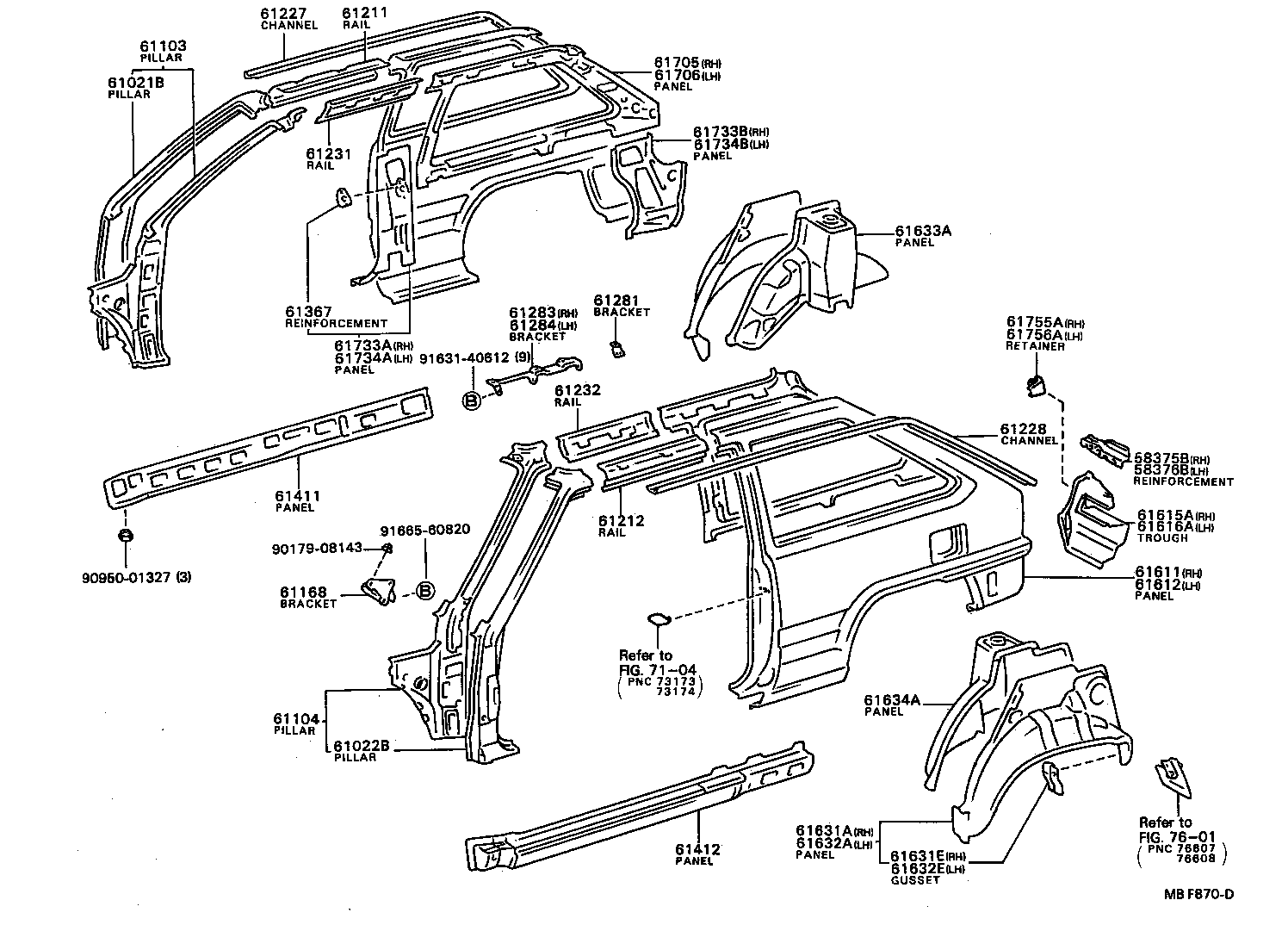

Click highlighted areas on diagram

diagram 58375B 58376B 61021B 61022B 61103 61104 61168 61211 61212 61227 61228 61231 61232 61281 61283 61284 61367 61411 61412 61611 61612 61615A 61616A 61631A 61631E 61632A 61632E 61633A 61634A 61705 61706 61733A 61733B 61734A 61734B 61755A 61756A 7104 7601 9017908143 9095001327 9163140612 9166560820
Part # Description Qty Price
58375B - REINFORCEMENT, BODY LOWER BACK PANEL, RH
58375-16010

AL20,21..3DS,5DS

 1
58376B - REINFORCEMENT, BODY LOWER BACK PANEL, LH
58376-16010

AL20,21..3DS,5DS

 1
61021B - PILLAR SUB-ASSY, FRONT BODY, UPPER RH
61021-16901

AL2#

 1
61022B - PILLAR SUB-ASSY, FRONT BODY, UPPER LH
61022-16901

AL2#

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-16040

AL2#

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-16060

AL2#

 1
61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61166-16020

AL2#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-16030

AL20,21..3DS

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-16030

AL20,21..3DS

 1
61227 - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-16030

AL20,21..3DS

 1
61228 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-16030

AL20,21..3DS

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-16040

AL20,21..3DS

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-16040

AL20,21..3DS

 1
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-14010

AL20,21..3DS

 2
61411 - PANEL, ROCKER, OUTER RH
61401-16090

AL20,21..3DS

 1
61412 - PANEL, ROCKER, OUTER LH
61402-16090

AL20,21..3DS

 1
61611 - PANEL, QUARTER, RH
61601-16912

AL20,21..3DS

 1
61601-16903

AL2#..3DS

 1
61612 - PANEL, QUARTER, LH
61602-16905

AL20..3DS

 1
61602-16922

AL20..3DS..(GX,VL)

W/FULL LID OPENER

 1
61602-16915

AL20..3DS..(GX,VL)

W/FULL LID OPENER

 1
61602-16919

AL20..3DS

 1
61615A - TROUGH, BACK DOOR OPENING, RH
61621-16030

AL20,21..3DS,5DS

 1
61616A - TROUGH, BACK DOOR OPENING, LH
61622-16030

AL20,21..3DS,5DS

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61605-16060

AL20,21..3DS

 1
61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-16010

AL2#

 1
61645-16010

AL20,21..3DS,5DS

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61606-16080

AL20,21..3DS

 1
61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-16020

AL2#

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-16110

AL20,21..3DS,5DS

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-16140

AL20,21..3DS,5DS

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-16909

AL20,21..3DS

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-16909

AL20,21..3DS

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-16900

AL20,21..3DS

 1
61733B - PANEL, ROOF SIDE, INNER REAR RH
61735-16030

AL20,21..3DS,5DS

 1
61735-16010

AL20,21..3DS,5DS

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-16900

AL20,21..3DS

 1
61734B - PANEL, ROOF SIDE, INNER REAR LH
61736-16010

AL20,21..3DS,5DS

 1
61736-16030

AL20,21..3DS,5DS

 1
61755A - RETAINER, DECK SIDE TRIM, UPPER RH
61755-16020

AL20,21..3DS,5DS

 2
61756A - RETAINER, DECK SIDE TRIM, UPPER LH
61755-16020

AL20,21..3DS,5DS

 2
Common parts
90179-08143
90950-01327
91631-40612
91665-60820
Linked diagrams
7104
7601
