AL20-ZEKNS (1982)
Toyota Corsa/Tercel

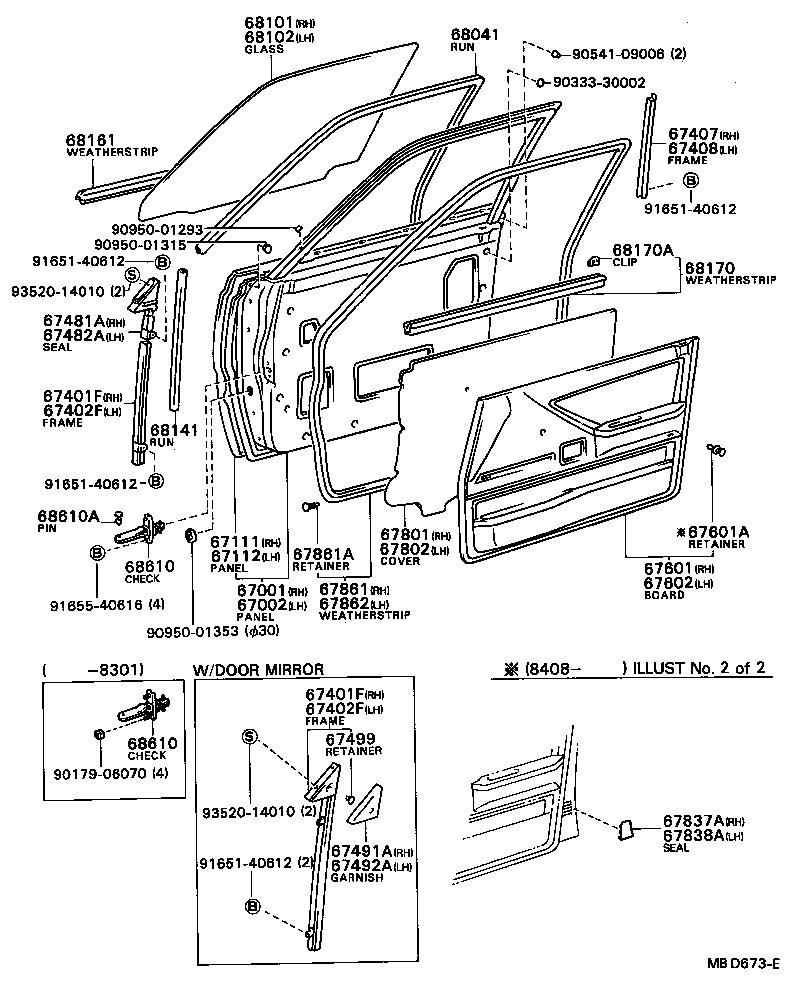

ILLUST NO. 1 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16160 |
AL2#..(4DS,5DS)..(DX,EX,GX,VC,VE,VL) |
1 | ||
| 67001-16161 |
AL20,21..(4DS,5DS)..(DX,EX,GX,VC,VE,VL) |
1 | ||
| 67001-16161 |
AL2# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16121 |
AL20,21..(4DS,5DS)..(DX,EX,GX,VC,VE,VL) |
1 | ||
| 67002-16120 |
AL2#..(4DS,5DS)..(DX,EX,GX,VC,VE,VL) |
1 | ||
| 67002-16121 |
AL2# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16110 |
AL20,21..(4DS,5DS)..(DX,EX,GX,VC,VE,VL) |
1 | ||
| 67111-16120 |
AL2#..4DS,5DS |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16090 |
AL20,21..(4DS,5DS)..(DX,EX,GX,VC,VE,VL) |
1 | ||
| 67112-16100 |
AL2#..4DS,5DS |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-16040 |
AL2#..4DS,5DS |
1 | ||
| 67401-16070 |
AL2#..4DS,5DS W/DOOR MIRROR |
1 | ||
| 67401-16080 |
AL2#..4DS,5DS W/DOOR MIRROR |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-16040 |
AL2#..4DS,5DS |
1 | ||
| 67401-16070 |
AL2#..4DS,5DS W/DOOR MIRROR |
1 | ||
| 67401-16080 |
AL2#..4DS,5DS W/DOOR MIRROR |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-16080 |
AL2#..4DS,5DS W/DOOR MIRROR |
1 | ||
| 67402-16070 |
AL2#..4DS,5DS W/DOOR MIRROR |
1 | ||
| 67402-16040 |
AL2#..4DS,5DS |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-16080 |
AL2#..4DS,5DS W/DOOR MIRROR |
1 | ||
| 67402-16070 |
AL2#..4DS,5DS W/DOOR MIRROR |
1 | ||
| 67402-16040 |
AL2#..4DS,5DS |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-16030 |
AL20,21..4DS,5DS |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-16030 |
AL20,21..4DS,5DS |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-16070 |
AL20,21..4DS,5DS |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-16040 |
AL20,21..4DS,5DS |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16030 |
AL2#..(4DS,5DS)..(GX,VL) W/O HOLE |
1 | ||
| 67491-16040 |
AL2#..(4DS,5DS)..(EX,GX,SX,VE,VL,VS) W/HOLE |
1 | ||
| 67491-16030 |
AL2#..4DS,5DS |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16030 |
AL2#..(4DS,5DS)..(GX,VL) W/O HOLE |
1 | ||
| 67492-16040 |
AL2#..(4DS,5DS)..(EX,GX,SX,VE,VL,VS) W/HOLE |
1 | ||
| 67492-16030 |
AL2#..4DS,5DS |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30010 |
AL2# |
2 | ||
| 67499-30010 |
AL2#..EX,GX,SX,VE,VL,VS |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1642002 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 67610-1642006 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) BROWN,BROWN,TRIM4# |
1 | ||
| 67610-1642013 |
AL20,21..(4DS,5DS)..(DX,GX,VC,VL) GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1642005 |
AL20,21..4DS..(DX,GX,VC,VL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-1642003 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1642001 |
AL20,21..DX,GX,VC,VL BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1642015 |
AL20,21..DX,GX,VC,VL BEIGE,DARK BEIGE,TRIM4# |
1 | ||

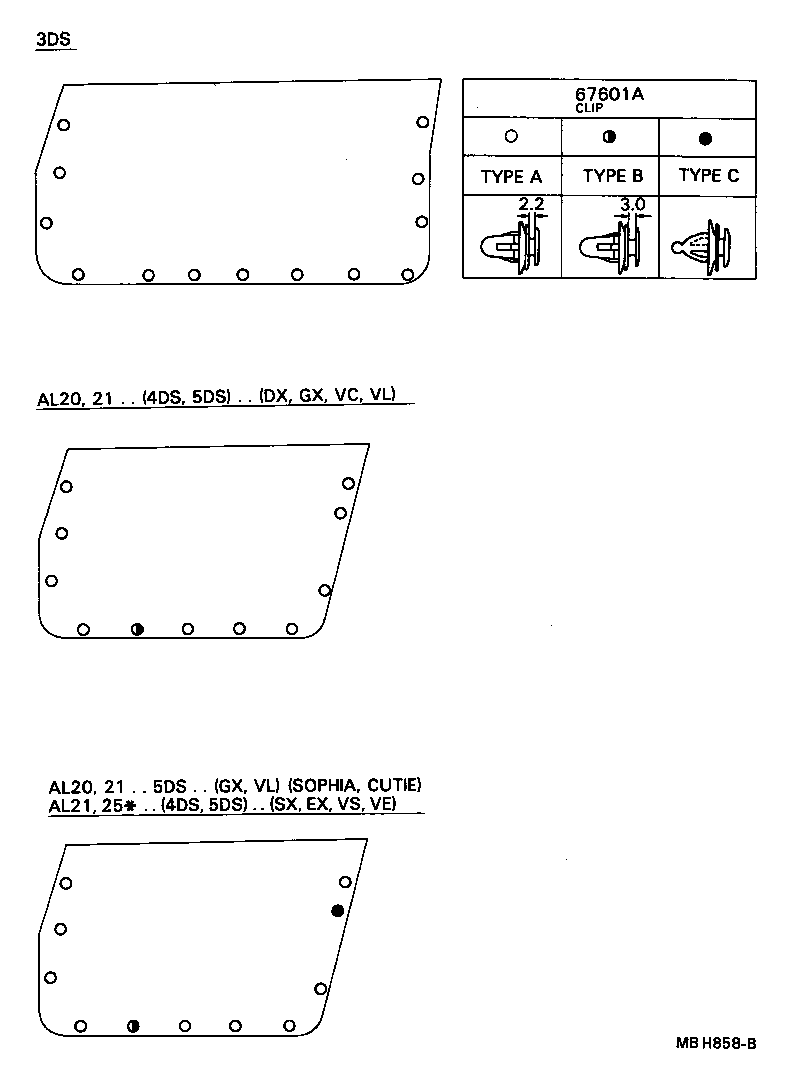

| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AL2# |
26 | ||
| 67771-30060 |
AL2#..4DS,5DS TYPE B |
2 | ||
| 67771-12020 |
AL2# TYPE A |
26 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1630002 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 67620-1630006 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1630013 |
AL20,21..(4DS,5DS)..(DX,GX,VC,VL) GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1630003 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1630005 |
AL20,21..4DS..(DX,GX,VC,VL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-1630001 |
AL20,21..DX,GX,VC,VL BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1630015 |
AL20,21..DX,GX,VC,VL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH | ||||
| 67831-16090 |
AL2#..4DS,5DS COLD SPEC |
1 | ||
| 67831-16080 |
AL2#..4DS,5DS |
1 | ||
| 67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH | ||||
| 67831-16090 |
AL2#..4DS,5DS COLD SPEC |
1 | ||
| 67832-16080 |
AL2#..4DS,5DS |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-16010 |
AL2#..4DS,5DS COLD SPEC |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-16010 |
AL2#..4DS,5DS COLD SPEC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16100 |
AL2#..4DS,5DS COLD SPEC |
1 | ||
| 67861-16180 |
AL2#..4DS,5DS COLD SPEC |
1 | ||
| 67861-16160 |
AL2#..4DS,5DS |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AL2# |
40 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16100 |
AL2#..4DS,5DS COLD SPEC |
1 | ||
| 67862-16180 |
AL2#..4DS,5DS COLD SPEC |
1 | ||
| 67862-16160 |
AL2#..4DS,5DS |
1 | ||
| 68041 - RUN SUB-ASSY, FRONT DOOR GLASS | ||||
| 68141-16140 |
AL2#..4DS,5DS |
2 | ||
| 68141-16060 |
AL2#..(4DS,5DS)..(EX,GX,SX,VE,VL,VS) W/DOOR MIRROR |
2 | ||
| 68141-16050 |
AL2#..4DS,5DS |
2 | ||
| 68141-16120 |
AL2#..4DS,5DS W/DOOR MIRROR |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-16120 |
AL2#..(4DS,5DS)..(EX,GX,SX,VE,VL,VS) *TT,厚さ=3.5,W/DOOR MIRROR,*TT,T=3.5 |
1 | ||
| 68111-16120 |
AL2#..4DS,5DS *TT,厚さ=3.5,W/DOOR MIRROR,*TT,T=3.5 |
1 | ||
| 68111-16100 |
AL2#..4DS,5DS *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-16120 |
AL2#..(4DS,5DS)..(EX,GX,SX,VE,VL,VS) *TT,厚さ=3.5,W/DOOR MIRROR,*TT,T=3.5 |
1 | ||
| 68112-16100 |
AL2#..4DS,5DS *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68112-16120 |
AL2#..4DS,5DS *TT,厚さ=3.5,W/DOOR MIRROR,*TT,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-16030 |
AL2# W/O DOOR MIRROR |
2 | ||
| 68143-16020 |
AL2# W/O DOOR MIRROR |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-16060 |
AL2#..(4DS,5DS)..(EX,GX,SX,VE,VL,VS) LH,W/DOOR MIRROR |
1 | ||
| 68220-16050 |
AL2#..4DS,5DS LH |
1 | ||
| 68170-16070 |
AL2#..4DS,5DS RH,W/DOOR MIRROR |
1 | ||
| 68170-16070 |
AL2#..(4DS,5DS)..(EX,GX,SX,VE,VL,VS) RH,W/DOOR MIRROR |
1 | ||
| 68170-16060 |
AL2#..4DS,5DS RH |
1 | ||
| 68220-16060 |
AL2#..4DS,5DS LH,W/DOOR MIRROR |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AL2# |
12 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-16030 |
AL2# |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-16030 |
AL2# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
AL2# |
2 | ||
| 68617-12010 |
AL2# |
2 | ||
| 68617-90A00 |
AL2# |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90541-09006 | ||||
| 90950-01293 | ||||
| 90950-01315 | ||||
| 90950-01353 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93520-14010 | ||||
ILLUST NO. 2 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
AL2# |
26 | ||
| 67771-30060 |
AL2#..4DS,5DS TYPE B |
2 | ||
| 67771-12020 |
AL2# TYPE A |
26 | ||
