AL20-ZEKNS (1982)

Toyota Corsa/Tercel

Production May 1982 - Oct 1989
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

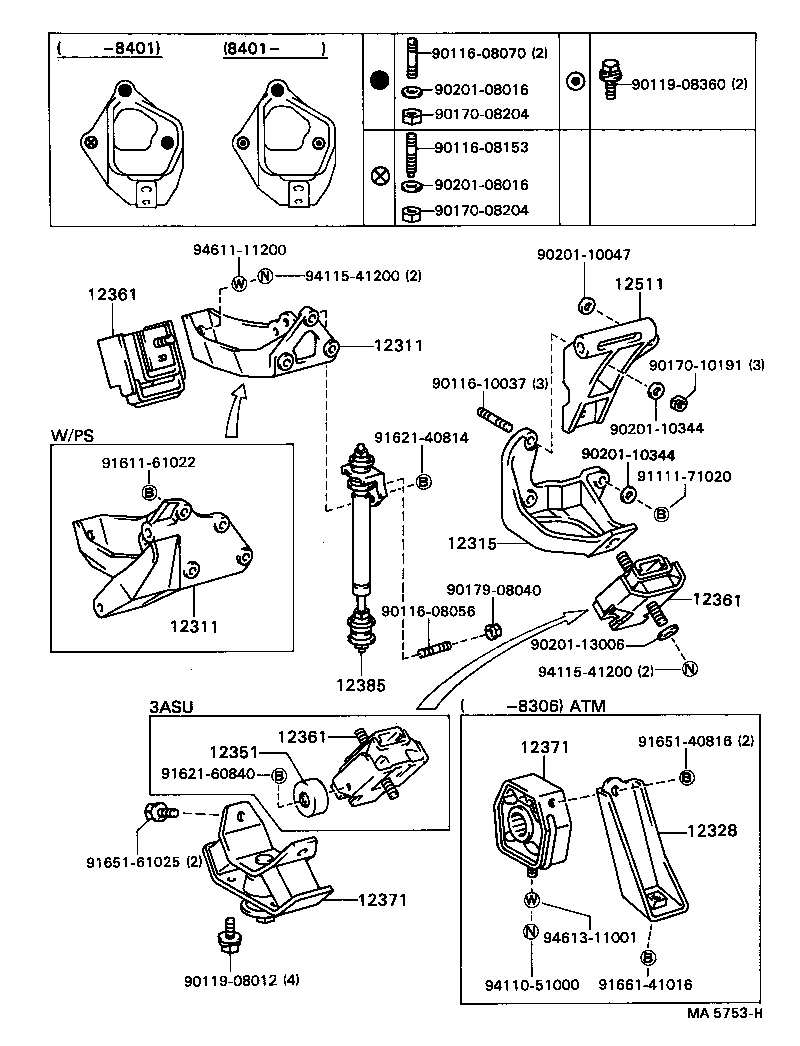

Click highlighted areas on diagram

diagram 12311 12311 12315 12328 12351 12361 12361 12361 12371 12371 12385 12511 9011608056 9011608070 9011608153 9011610037 9011908012 9011908360 9017008204 9017008204 9017010191 9017908040 9020108016 9020108016 9020110047 9020110344 9020110344 9020113006 9111171020 9161161022 9162140814 9162160840 9165140816 9165161025 9166141016 9411051000 9411541200 9411541200 9461111200 9461311001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-15060

2AU,3AU..AL2#..EX,GX,VE,VL

W/PS

 1
12311-15050

2AU,3A#..AL2#

 1
12311-15060

2AU,3A#..AL2#

W/PS

 1
12311-15050

2AU,3AU..AL20,21

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-15060

2AU,3AU..AL2#..EX,GX,VE,VL

W/PS

 1
12311-15050

2AU,3A#..AL2#

 1
12311-15060

2AU,3A#..AL2#

W/PS

 1
12311-15050

2AU,3AU..AL20,21

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-15030

2AU,3A#..AL2#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-15050

2AU,3AU..AL2#

 2
12361-15050

2AU,3A#..AL2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-15050

2AU,3AU..AL2#

 2
12361-15050

2AU,3A#..AL2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-15050

2AU,3AU..AL2#

 2
12361-15050

2AU,3A#..AL2#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-15050

2AU,3A#..AL2#..MTM

 1
12371-15050

2AU,3A#..AL20,21

 1
12371-15050

2AU,3A#..AL2#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-15050

2AU,3A#..AL2#..MTM

 1
12371-15050

2AU,3A#..AL20,21

 1
12371-15050

2AU,3A#..AL2#

 1
12385 - ABSORBER, ENGINE MOUNTING, NO.1
12307-15010

2AU,3A#..AL2#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15011

2AU,3A#..AL2#

 1
Common parts
90116-08056
90116-08070
90116-08153
90116-10037
90119-08012
90119-08360
90170-08204
90170-10191
90179-08040
90201-08016
90201-10047
90201-10344
90201-13006
91111-71020
91611-61022
91621-40814
91621-60840
91651-40816
91651-61025
91661-41016
94110-51000
94115-41200
94611-11200
94613-11001
