AL20-ZEHNS (1982)
Toyota Corsa/Tercel

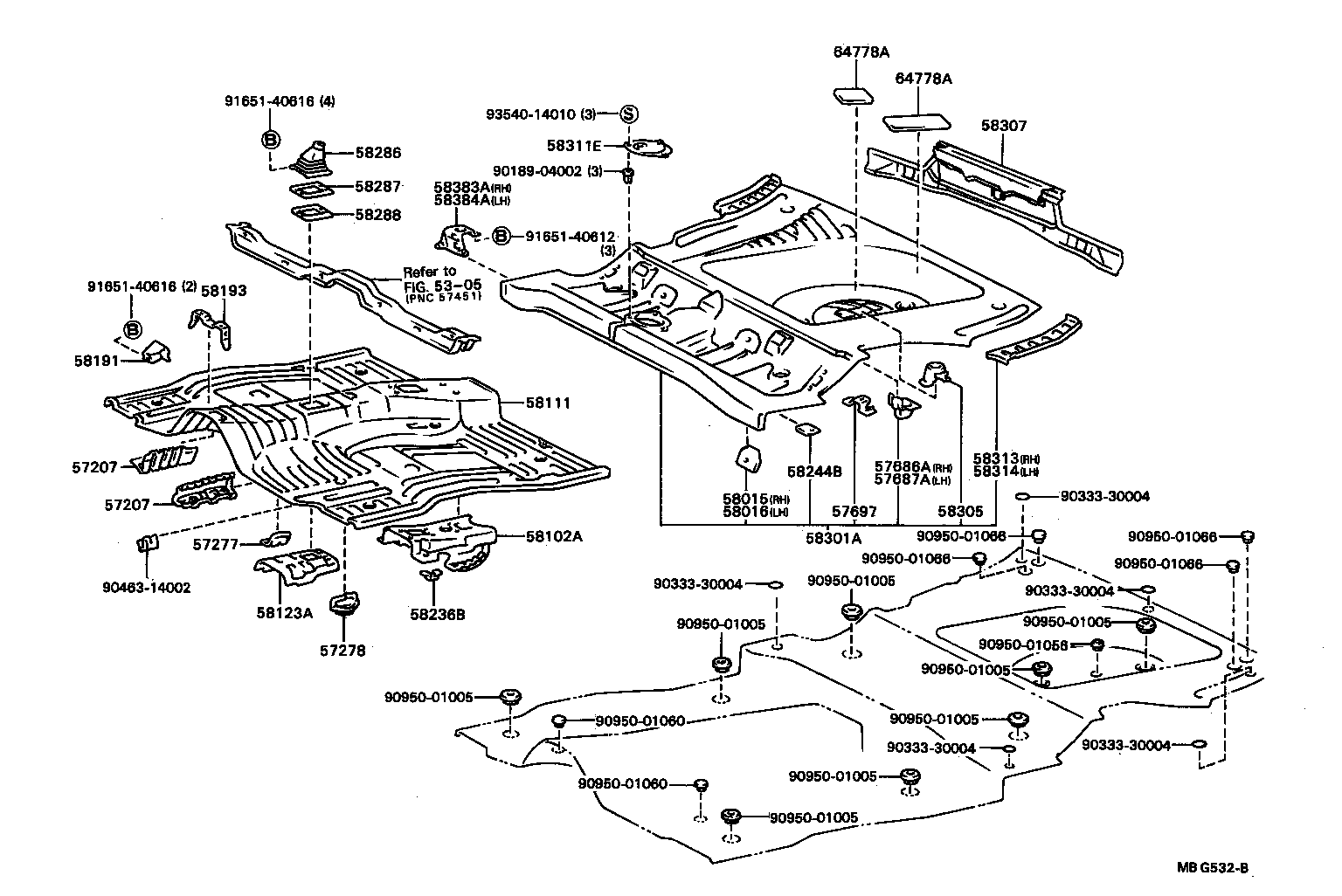

(8205-8408)4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-16030 |
AL20,21 LH |
1 | ||
| 57207-16030 |
AL20,21 RH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-16030 |
AL20,21 LH |
1 | ||
| 57207-16030 |
AL20,21 RH |
1 | ||
| 57277 - BRACKET, CATALYTIC CONVERTER SUPPORT, RH | ||||
| 57277-16010 |
AL20,21 |
1 | ||
| 57278 - BRACKET, CATALYTIC CONVERTER SUPPORT, LH | ||||
| 57278-16040 |
AL20,21 |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-16010 |
AL2# |
1 | ||
| 57686-16011 |
AL20,21 |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57687-16011 |
AL20,21 |
1 | ||
| 57687-16010 |
AL2# |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-16010 |
AL20,21 |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-16010 |
AL20,21 |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58015-16010 |
AL20,21 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-16010 |
AL20,21 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-16020 |
AL20,21 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-16020 |
AL20,21 |
1 | ||
| 58123-16030 |
AL20,21..3FC |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-16020 |
AL25..3FC;AL25..SX,VS;AL21..3FC..(EX,VE);AL20,21..(3FC,5F)..(DX,GX,SX,VC,VL,VS) |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-16020 |
AL20,21 |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AL2# |
7 | ||
| 58244B - BRACKET, REAR SEAT CUSHION MOUNTING | ||||
| 58244-16010 |
AL2# |
4 | ||
| 58244-16010 |
AL20,21 PLANT NO.P11 |
4 | ||
| 58244-16010 |
AL20,21 PLANT NO.P11 |
4 | ||
| 58244-16030 |
AL20,21 PLANT NO.A32 |
4 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-16140 |
AL2#..4DS |
1 | ||
| 58301-16170 |
AL20,21..4DS |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AL2# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-16300 |
AL2#..4DS |
1 | ||
| 58307-16290 |
AL2#..4DS |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16020 |
AL20,21 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-16070 |
AL20,21..4DS |
1 | ||
| 58313-16040 |
AL2#..4DS |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-16040 |
AL2#..4DS |
1 | ||
| 58314-16070 |
AL20,21..4DS |
1 | ||
| 58383A - BRACKET, REAR SEAT SUPPORT, RH | ||||
| 58215-16010 |
AL20,21 |
1 | ||
| 58384A - BRACKET, REAR SEAT SUPPORT, LH | ||||
| 58216-16010 |
AL20,21 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12020 |
AL20,21 240 X 110 |
1 | ||
| 64778-12010 |
AL2#..4DS |
2 | ||
| 64759-16030 |
AL20,21 230 X 125 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12020 |
AL20,21 240 X 110 |
1 | ||
| 64778-12010 |
AL2#..4DS |
2 | ||
| 64759-16030 |
AL20,21 230 X 125 |
1 | ||
| Common parts | ||||
| 90189-04002 | ||||
| 90333-30004 | ||||
| 90463-14002 | ||||
| 90950-01005 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01066 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5305 | ||||

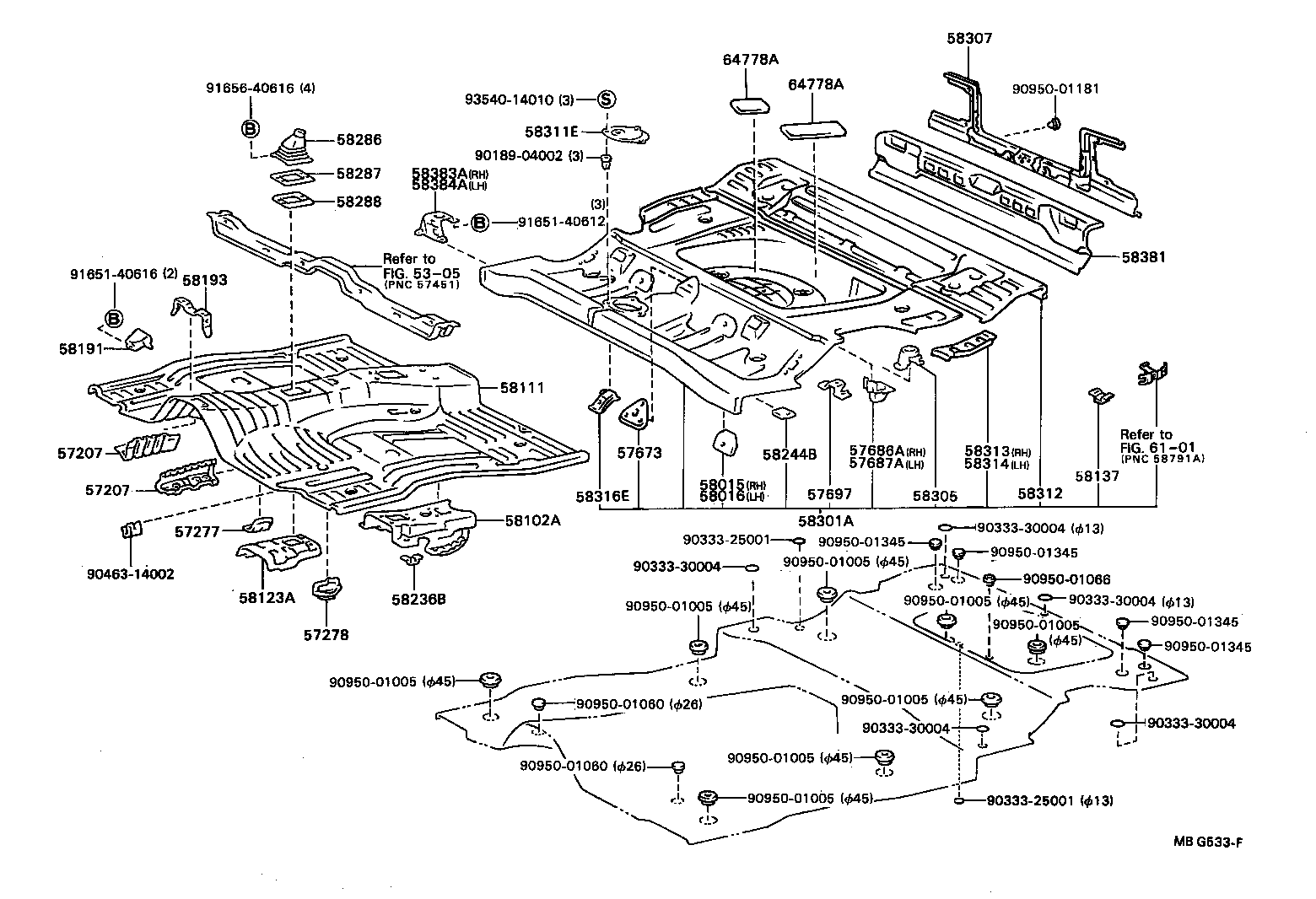

(8408- )AL20,21..4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-16030 |
AL20,21 LH |
1 | ||
| 57207-16030 |
AL20,21 RH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-16030 |
AL20,21 LH |
1 | ||
| 57207-16030 |
AL20,21 RH |
1 | ||
| 57277 - BRACKET, CATALYTIC CONVERTER SUPPORT, RH | ||||
| 57277-16010 |
AL20,21 |
1 | ||
| 57278 - BRACKET, CATALYTIC CONVERTER SUPPORT, LH | ||||
| 57278-16040 |
AL20,21 |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-16010 |
AL20,21 |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-16010 |
AL2# |
1 | ||
| 57686-16011 |
AL20,21 |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57687-16011 |
AL20,21 |
1 | ||
| 57687-16010 |
AL2# |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-16010 |
AL20,21 |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-16010 |
AL20,21 |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58015-16010 |
AL20,21 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-16010 |
AL20,21 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-16020 |
AL20,21 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-16020 |
AL20,21 |
1 | ||
| 58123-16030 |
AL20,21..3FC |
1 | ||
| 58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 | ||||
| 58236-14010 |
AL2#..4DS |
2 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-16020 |
AL25..3FC;AL25..SX,VS;AL21..3FC..(EX,VE);AL20,21..(3FC,5F)..(DX,GX,SX,VC,VL,VS) |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-16020 |
AL20,21 |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AL2# |
7 | ||
| 58244B - BRACKET, REAR SEAT CUSHION MOUNTING | ||||
| 58244-16010 |
AL2# |
4 | ||
| 58244-16010 |
AL20,21 PLANT NO.P11 |
4 | ||
| 58244-16010 |
AL20,21 PLANT NO.P11 |
4 | ||
| 58244-16030 |
AL20,21 PLANT NO.A32 |
4 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-16140 |
AL2#..4DS |
1 | ||
| 58301-16170 |
AL20,21..4DS |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AL2# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-16300 |
AL2#..4DS |
1 | ||
| 58307-16290 |
AL2#..4DS |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16020 |
AL20,21 |
1 | ||
| 58312 - PANEL, REAR BODY FLOOR, NO.1 | ||||
| 58312-16030 |
AL20,21..4DS |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-16070 |
AL20,21..4DS |
1 | ||
| 58313-16040 |
AL2#..4DS |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-16040 |
AL2#..4DS |
1 | ||
| 58314-16070 |
AL20,21..4DS |
1 | ||
| 58316E - RETAINER, REAR SEAT SET | ||||
| 58316-16030 |
AL20,21..4DS..(DX,GX,VC,VL) |
2 | ||
| 58381 - DEFLECTOR, REAR BUMPER STONE | ||||
| 58381-16030 |
AL20,21..4DS |
1 | ||
| 58383A - BRACKET, REAR SEAT SUPPORT, RH | ||||
| 58215-16010 |
AL20,21 |
1 | ||
| 58384A - BRACKET, REAR SEAT SUPPORT, LH | ||||
| 58216-16010 |
AL20,21 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12020 |
AL20,21 240 X 110 |
1 | ||
| 64778-12010 |
AL2#..4DS |
2 | ||
| 64759-16030 |
AL20,21 230 X 125 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12020 |
AL20,21 240 X 110 |
1 | ||
| 64778-12010 |
AL2#..4DS |
2 | ||
| 64759-16030 |
AL20,21 230 X 125 |
1 | ||
| Common parts | ||||
| 90189-04002 | ||||
| 90333-25001 | ||||
| 90333-30004 | ||||
| 90463-14002 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
| 90950-01066 | ||||
| 90950-01181 | ||||
| 90950-01345 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 6101 | ||||
