AL20-LHKNS (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

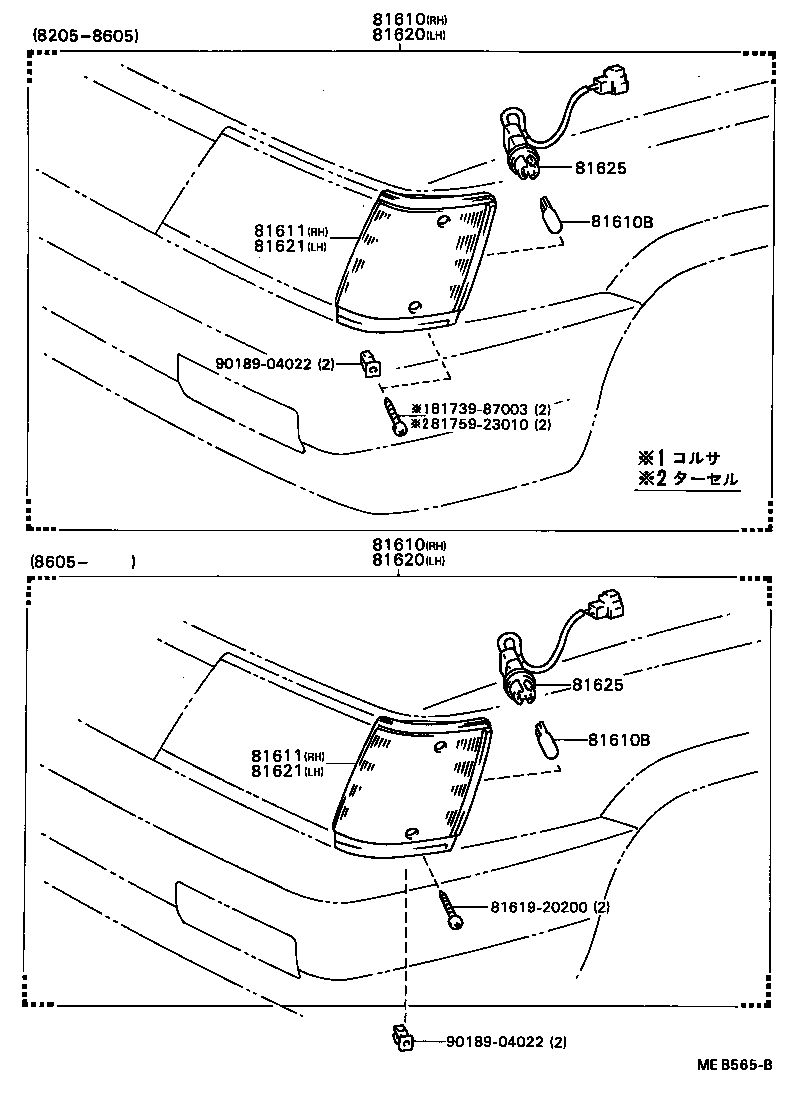

Click highlighted areas on diagram

diagram 81610 81610 81610B 81610B 81611 81611 8161920200 81620 81620 81621 81621 81625 81625 8173987003 8175923010 9018904022 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19366

AL2#..CRS

 1
81610-19365

AL2#..CRS

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19366

AL2#..CRS

 1
81610-19365

AL2#..CRS

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AL2#

12V 5W,12V 5W

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AL2#

12V 5W,12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-16040

AL2#..CRS

 1
81611-16041

AL2#..CRS

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-16040

AL2#..CRS

 1
81611-16041

AL2#..CRS

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19366

AL2#..CRS

 1
81620-19365

AL2#..CRS

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19366

AL2#..CRS

 1
81620-19365

AL2#..CRS

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-16041

AL2#..CRS

 1
81621-16040

AL2#..CRS

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-16041

AL2#..CRS

 1
81621-16040

AL2#..CRS

 1
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81615-16040

AL2#

 2
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81615-16040

AL2#

 2
Common parts
81619-20200
81739-87003
81759-23010
90189-04022
