AL20-LHKNS (1982)
Toyota Corsa/Tercel
Production
May 1982
-
May 1986
Engine
2AU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8205-8408)CRS

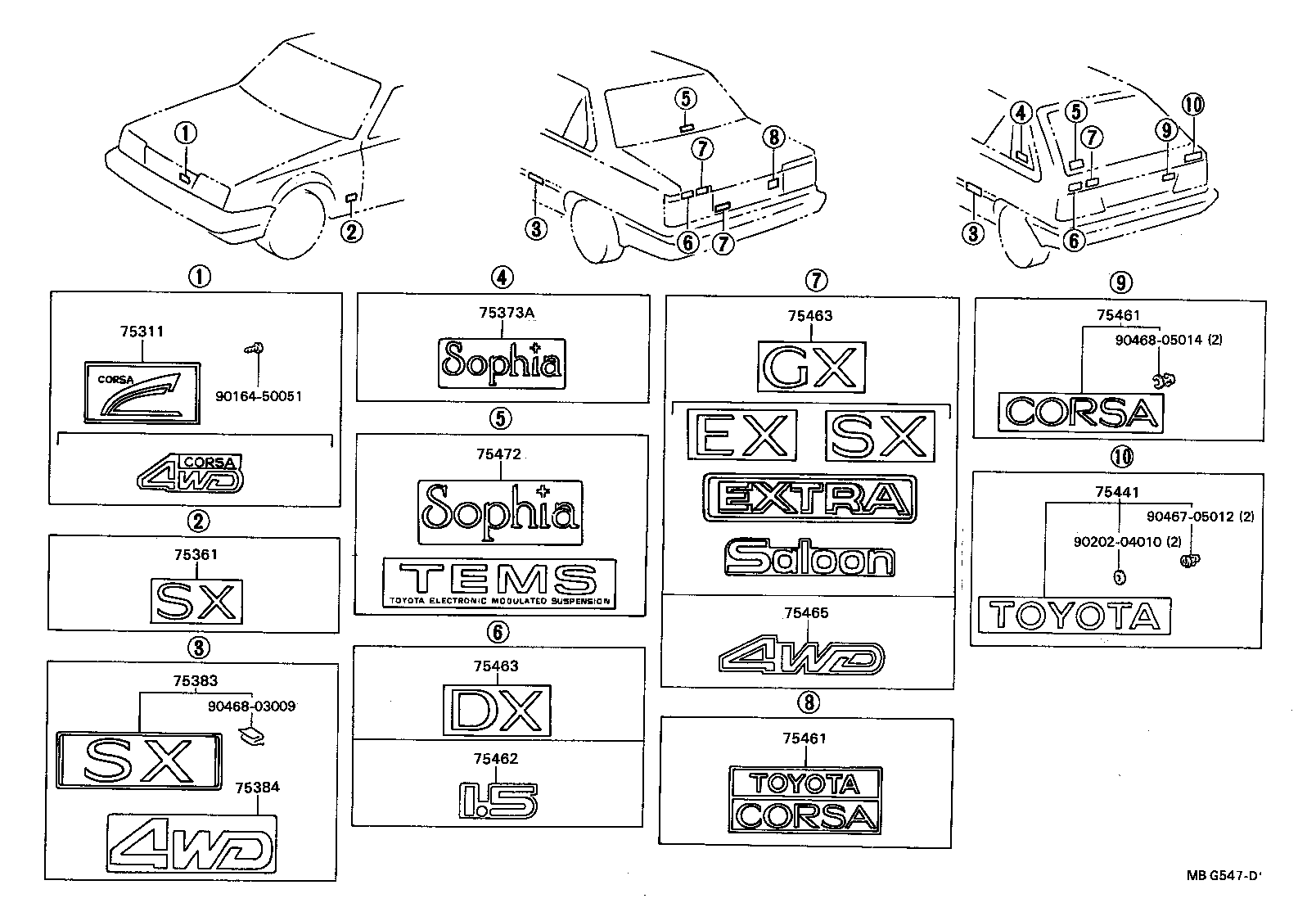

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75311-80019 |
AL2#..CRS |
1 | ||
| 75311-16160 |
AL20,21..CRS |
1 | ||
| 75373A - PLATE, QUARTER WINDOW MARK | ||||
| 75373-16010 |
AL20,21..(3DS,5DS)..GX SOPHIA |
1 | ||
| 75461 - PLATE, REAR NAME, NO.2 (MODEL MARK) | ||||
| 75441-16040 |
AL2#..CRS..(3DS,5DS) TOYOTA CORSA |
1 | ||
| 75441-16150 |
AL20,21..CRS..(3DS,5DS) CORSA |
1 | ||
| 75461 - PLATE, REAR NAME, NO.2 (MODEL MARK) | ||||
| 75441-16040 |
AL2#..CRS..(3DS,5DS) TOYOTA CORSA |
1 | ||
| 75441-16150 |
AL20,21..CRS..(3DS,5DS) CORSA |
1 | ||
| 75463 - PLATE, REAR NAME, NO.4 (GRADE MARK) | ||||
| 75442-16040 |
AL2#..GX GX |
1 | ||
| 75472 - PLATE, REAR WINDOW NAME | ||||
| 74542-16010 |
AL20,21..(3DS,5DS)..GX SOPHIA |
1 | ||
| Common parts | ||||
| 90164-50051 | ||||
| 90202-04010 | ||||
| 90467-05012 | ||||
| 90467-07022 | ||||
| 90468-03009 | ||||
| 90468-05014 | ||||
(8408- )CRS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75311-80019 |
AL2#..CRS |
1 | ||
| 75311-16160 |
AL20,21..CRS |
1 | ||
| 75373A - PLATE, QUARTER WINDOW MARK | ||||
| 75373-16010 |
AL20,21..(3DS,5DS)..GX SOPHIA |
1 | ||
| 75441 - PLATE, REAR NAME, NO.1 | ||||
| 75441-16180 |
AL20,21..3DS,5DS TOYOTA |
1 | ||
| 75461 - PLATE, REAR NAME, NO.2 (MODEL MARK) | ||||
| 75441-16040 |
AL2#..CRS..(3DS,5DS) TOYOTA CORSA |
1 | ||
| 75441-16150 |
AL20,21..CRS..(3DS,5DS) CORSA |
1 | ||
| 75461 - PLATE, REAR NAME, NO.2 (MODEL MARK) | ||||
| 75441-16040 |
AL2#..CRS..(3DS,5DS) TOYOTA CORSA |
1 | ||
| 75441-16150 |
AL20,21..CRS..(3DS,5DS) CORSA |
1 | ||
| 75463 - PLATE, REAR NAME, NO.4 (GRADE MARK) | ||||
| 75442-16040 |
AL2#..GX GX |
1 | ||
| 75463 - PLATE, REAR NAME, NO.4 (GRADE MARK) | ||||
| 75442-16040 |
AL2#..GX GX |
1 | ||
| 75472 - PLATE, REAR WINDOW NAME | ||||
| 74542-16010 |
AL20,21..(3DS,5DS)..GX SOPHIA |
1 | ||
| Common parts | ||||
| 90164-50051 | ||||
| 90202-04010 | ||||
| 90467-05012 | ||||
| 90468-03009 | ||||
| 90468-05014 | ||||
