AL20-LGKDS (1983)
Toyota Corsa/Tercel
Production
Aug 1983
-
May 1986
Engine
2AU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8205-8408)2AU,3AU

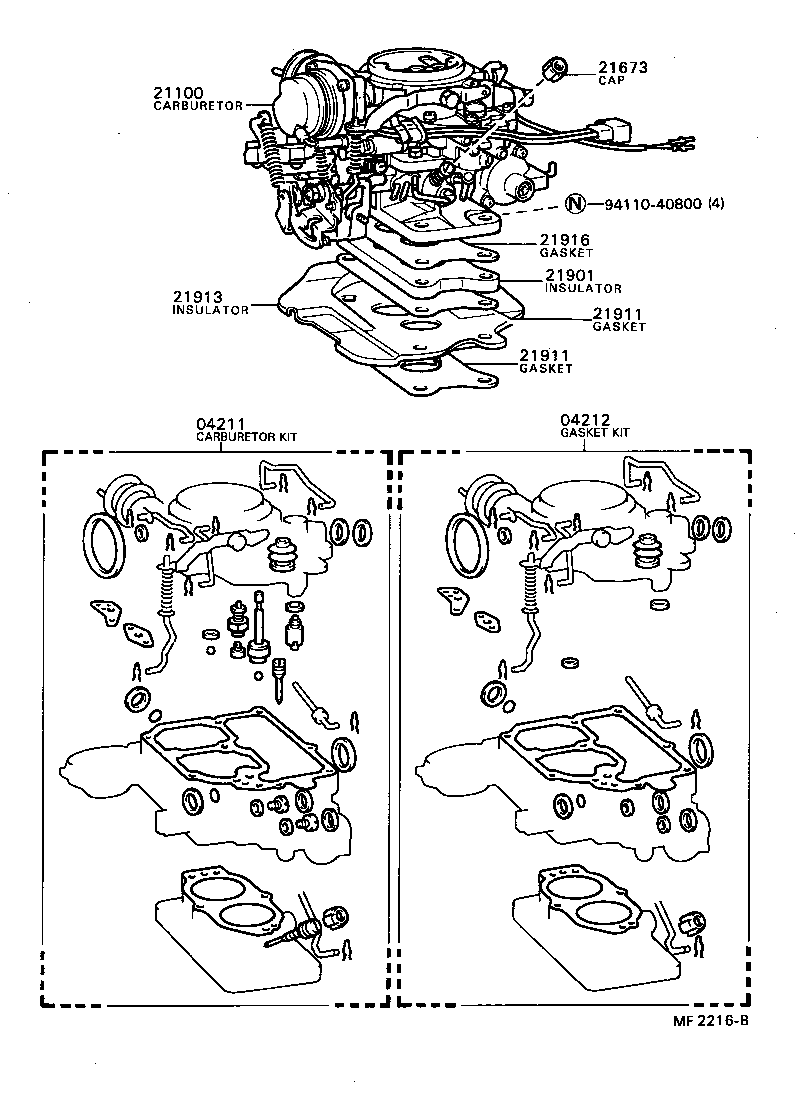

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04211 - CARBURETOR KIT | ||||
| 04211-15090 |
2AU,3AU..AL2# |
1 | ||
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-15110 |
2AU,3A#..AL2# |
2 | ||
| 04212-15050 |
2AU,3AU..AL2# |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-15260 |
2AU,3AU..AL2#..MTM |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-38020 |
2AU,3AU..AL2# |
1 | ||
| 21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1 | ||||
| 21901-15011 |
2AU,3AU..AL2# |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21916-15030 |
2AU,3AU..AL2# |
2 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21916-15030 |
2AU,3AU..AL2# |
2 | ||
| 21913 - INSULATOR, CARBURETOR HEAT, NO.2 | ||||
| 21913-15030 |
2AU,3AU..AL2# |
1 | ||
| 21913-15050 |
2AU,3AU..AL2# |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
(8408- )2AU,3AU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-15110 |
2AU,3A#..AL2# |
2 | ||
| 04212-15050 |
2AU,3AU..AL2# |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-15260 |
2AU,3AU..AL2#..MTM |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-38020 |
2AU,3AU..AL2# |
1 | ||
| 21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1 | ||||
| 21901-15011 |
2AU,3AU..AL2# |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21916-15030 |
2AU,3AU..AL2# |
2 | ||
| 21913 - INSULATOR, CARBURETOR HEAT, NO.2 | ||||
| 21913-15030 |
2AU,3AU..AL2# |
1 | ||
| 21913-15050 |
2AU,3AU..AL2# |
1 | ||
| Common parts | ||||
| 90170-08008 | ||||
| 94110-40800 | ||||
