AL20-LEKDS (1982)

Toyota Corsa/Tercel

Production May 1982 - Oct 1989
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

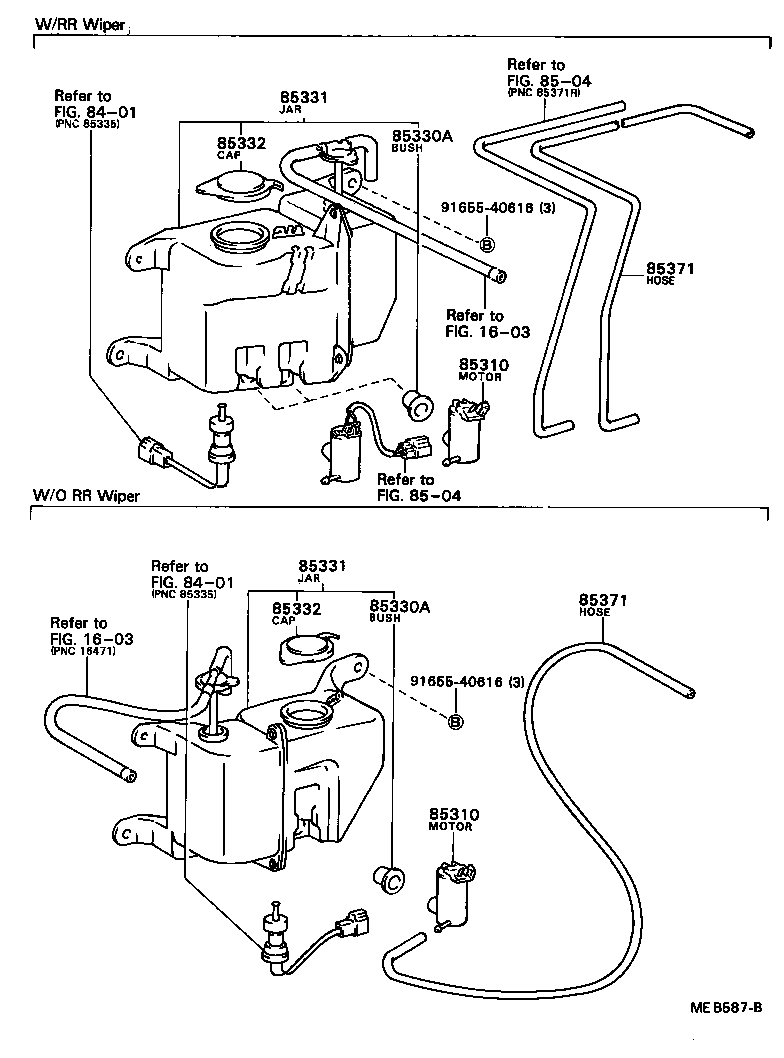

ILLUST NO. 1 OF 2(8205- )AL20 ; (8205- )3AHU ; (8205- )AL21..4DS..SX,VS

Click highlighted areas on diagram

diagram 1603 1603 8401 8401 8504 8504 85310 85310 85330A 85330A 85331 85331 85332 85332 85371 85371 9165540616 9165540616
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AL2#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AL2#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AL2#

 2
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AL2#

 2
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85330-16100

AL20;AL21..DX,VC;AL21..4DS..(GX,VL)

 1
85331-16171

AL2#..DX,GX,VC,VL

2.3 LITTER

 1
85330-16100

AL2#..4DS..(DX,GX,VC,VL)

1.5 LITTER

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85330-16100

AL20;AL21..DX,VC;AL21..4DS..(GX,VL)

 1
85331-16171

AL2#..DX,GX,VC,VL

2.3 LITTER

 1
85330-16100

AL2#..4DS..(DX,GX,VC,VL)

1.5 LITTER

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-16010

AL2#

 1
85332-16010

AL2#..4DS..(DX,EX,GX,VC,VE,VL)

1.5 LITTER

 1
85332-12320

AL2#

2.3 LITTER

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-16010

AL2#

 1
85332-16010

AL2#..4DS..(DX,EX,GX,VC,VE,VL)

1.5 LITTER

 1
85332-12320

AL2#

2.3 LITTER

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

AL2#

*H,L=950

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

AL2#

*H,L=950

 1
Common parts
91655-40616
Linked diagrams
1603
8401
8504

ILLUST NO. 2 OF 2(8205- )

Click highlighted areas on diagram

diagram 85345 85345 85348 85373 85373 9015060008 9015060008 9046400248 9046400248 9095901056
Part # Description Qty Price
85345 - NOZZLE, WINDSHIELD WASHER
85341-16050

AL2#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-16050

AL2#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AL2#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AL2#

*H,L=40

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AL2#

*H,L=40

 1
Common parts
90150-60008
90464-00248
90959-01056
