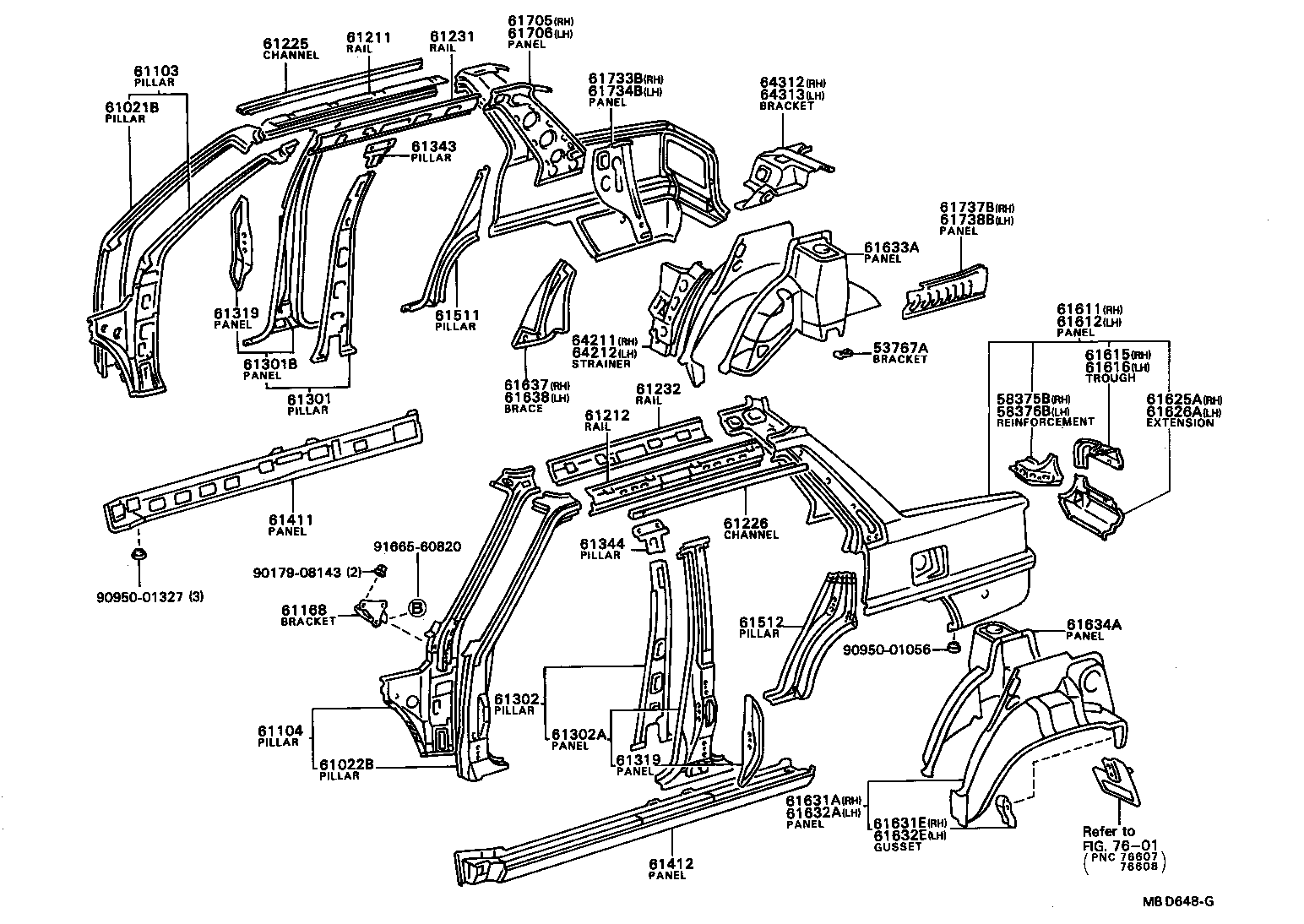

AL20-LEHNS (1982)
Toyota Corsa/Tercel
(8205-8408)4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53767A - BRACKET, BATTERY WIRRING HARNESS | ||||
| 53767-20040 |
AL20,21..4DS |
1 | ||
| 58375B - REINFORCEMENT, BODY LOWER BACK PANEL, RH | ||||
| 58375-16020 |
AL2#..4DS |
1 | ||
| 58376B - REINFORCEMENT, BODY LOWER BACK PANEL, LH | ||||
| 58376-16020 |
AL2#..4DS |
1 | ||
| 61021B - PILLAR SUB-ASSY, FRONT BODY, UPPER RH | ||||
| 61021-16901 |
AL2# |
1 | ||
| 61022B - PILLAR SUB-ASSY, FRONT BODY, UPPER LH | ||||
| 61022-16901 |
AL2# |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-16080 |
AL2# |
1 | ||
| 61021-16040 |
AL2# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-16060 |
AL2# |
1 | ||
| 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-16020 |
AL2# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-16060 |
AL2#..4DS |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-16060 |
AL2#..4DS |
1 | ||
| 61225 - CHANNEL, ROOF DRIP, CENTER RH | ||||
| 61265-16020 |
AL2#..4DS |
1 | ||
| 61226 - CHANNEL, ROOF DRIP, CENTER LH | ||||
| 61266-16020 |
AL2#..4DS |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-16080 |
AL2#..4DS |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-16080 |
AL2#..4DS |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-16020 |
AL2#..4DS,5DS |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-16901 |
AL2#..4DS,5DS |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-16030 |
AL2#..4DS,5DS |
1 | ||
| 61302A - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-16901 |
AL2#..4DS,5DS |
1 | ||
| 61319 - PANEL, CENTER BODY PILLAR FINISH | ||||
| 61318-16020 |
AL2#..4DS,5DS RH |
1 | ||
| 61319-16020 |
AL2#..4DS,5DS LH |
1 | ||
| 61319 - PANEL, CENTER BODY PILLAR FINISH | ||||
| 61318-16020 |
AL2#..4DS,5DS RH |
1 | ||
| 61319-16020 |
AL2#..4DS,5DS LH |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-16020 |
AL2#..4DS,5DS |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-16020 |
AL2#..4DS,5DS |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-16100 |
AL2#..4DS,5DS |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-16100 |
AL2#..4DS,5DS |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-16900 |
AL2#..4DS,5DS |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-16900 |
AL2#..4DS,5DS |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-16900 |
AL2#..4DS |
1 | ||
| 61601-16915 |
AL20,21..4DS |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-16900 |
AL2#..4DS W/FULL LID OPENER |
1 | ||
| 61602-16923 |
AL20,21..4DS..(DX,GX,VC,VL) |
1 | ||
| 61602-16924 |
AL20,21..4DS W/FULL LID OPENER |
1 | ||
| 61602-16901 |
AL2#..4DS..(DX,GX,VC,VL) |
1 | ||
| 61615 - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-16050 |
AL2#..4DS |
1 | ||
| 61621-16060 |
AL2#..4DS |
1 | ||
| 61616 - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-16050 |
AL2#..4DS |
1 | ||
| 61622-16060 |
AL2#..4DS |
1 | ||
| 61625A - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61625-16030 |
AL2#..4DS |
1 | ||
| 61626A - EXTENSION SUB-ASSY, QUARTER PANEL, LH | ||||
| 61626-16030 |
AL2#..4DS |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-16210 |
AL20,21..4DS |
1 | ||
| 61605-16130 |
AL2#..4DS |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-16010 |
AL2# |
1 | ||
| 61645-16030 |
AL20,21..4DS |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-16230 |
AL20,21..4DS |
1 | ||
| 61606-16150 |
AL2#..4DS |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-16020 |
AL2# |
1 | ||
| 61646-16050 |
AL20,21..4DS |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-16060 |
AL20,21..4DS |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-16070 |
AL20,21..4DS |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-16090 |
AL20,21..4DS |
1 | ||
| 61635-16060 |
AL2#..4DS |
1 | ||
| 61638 - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61636-16060 |
AL2#..4DS |
1 | ||
| 61636-16100 |
AL20,21..4DS |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61731-16900 |
AL2#..4DS |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61732-16900 |
AL2#..4DS |
1 | ||
| 61733B - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-16050 |
AL20,21..4DS |
1 | ||
| 61735-16040 |
AL2#..4DS |
1 | ||
| 61734B - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-16040 |
AL2#..4DS |
1 | ||
| 61736-16050 |
AL20,21..4DS |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-16040 |
AL20,21..4DS |
1 | ||
| 61737-16020 |
AL2#..4DS |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-16040 |
AL20,21..4DS |
1 | ||
| 61738-16020 |
AL2#..4DS |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-16900 |
AL20,21..4DS |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-16900 |
AL20,21..4DS |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-16900 |
AL2#..4DS |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-16900 |
AL2#..4DS |
1 | ||
| Common parts | ||||
| 90179-08143 | ||||
| 90950-01056 | ||||
| 90950-01327 | ||||
| 91665-60820 | ||||
| Linked diagrams | ||||
| 7601 | ||||

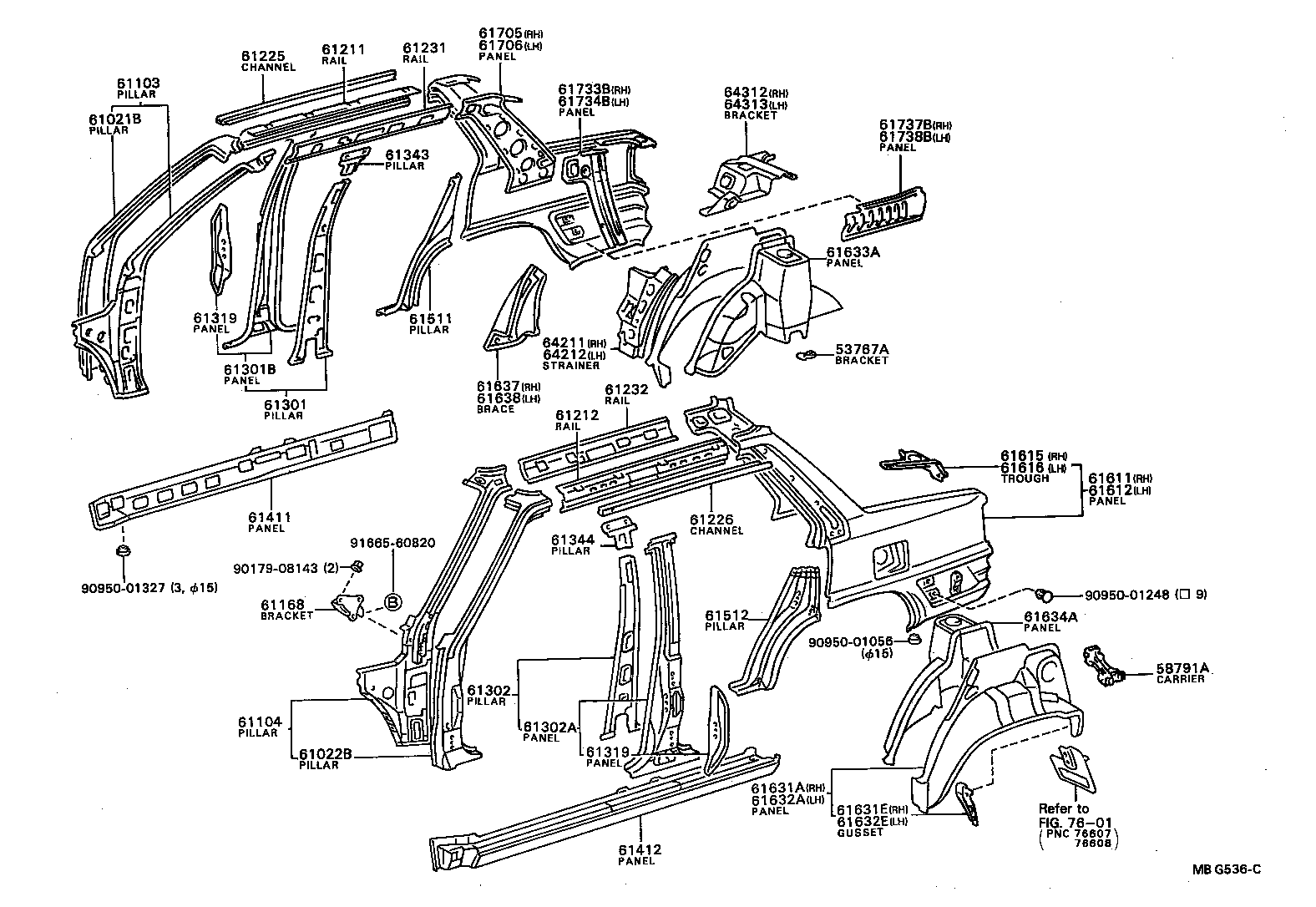

(8408- )AL20,21..4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53767A - BRACKET, BATTERY WIRRING HARNESS | ||||
| 53767-20040 |
AL20,21..4DS |
1 | ||
| 58791A - CARRIER, JACK | ||||
| 58791-16031 |
AL20,21..4DS |
1 | ||
| 61021B - PILLAR SUB-ASSY, FRONT BODY, UPPER RH | ||||
| 61021-16901 |
AL2# |
1 | ||
| 61022B - PILLAR SUB-ASSY, FRONT BODY, UPPER LH | ||||
| 61022-16901 |
AL2# |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-16080 |
AL2# |
1 | ||
| 61021-16040 |
AL2# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-16060 |
AL2# |
1 | ||
| 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-16020 |
AL2# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-16060 |
AL2#..4DS |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-16060 |
AL2#..4DS |
1 | ||
| 61225 - CHANNEL, ROOF DRIP, CENTER RH | ||||
| 61265-16020 |
AL2#..4DS |
1 | ||
| 61226 - CHANNEL, ROOF DRIP, CENTER LH | ||||
| 61266-16020 |
AL2#..4DS |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-16080 |
AL2#..4DS |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-16080 |
AL2#..4DS |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-16020 |
AL2#..4DS,5DS |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-16901 |
AL2#..4DS,5DS |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-16030 |
AL2#..4DS,5DS |
1 | ||
| 61302A - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-16901 |
AL2#..4DS,5DS |
1 | ||
| 61319 - PANEL, CENTER BODY PILLAR FINISH | ||||
| 61318-16020 |
AL2#..4DS,5DS RH |
1 | ||
| 61319-16020 |
AL2#..4DS,5DS LH |
1 | ||
| 61319 - PANEL, CENTER BODY PILLAR FINISH | ||||
| 61318-16020 |
AL2#..4DS,5DS RH |
1 | ||
| 61319-16020 |
AL2#..4DS,5DS LH |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-16020 |
AL2#..4DS,5DS |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-16020 |
AL2#..4DS,5DS |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-16100 |
AL2#..4DS,5DS |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-16100 |
AL2#..4DS,5DS |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-16900 |
AL2#..4DS,5DS |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-16900 |
AL2#..4DS,5DS |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-16900 |
AL2#..4DS |
1 | ||
| 61601-16915 |
AL20,21..4DS |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-16900 |
AL2#..4DS W/FULL LID OPENER |
1 | ||
| 61602-16923 |
AL20,21..4DS..(DX,GX,VC,VL) |
1 | ||
| 61602-16924 |
AL20,21..4DS W/FULL LID OPENER |
1 | ||
| 61602-16901 |
AL2#..4DS..(DX,GX,VC,VL) |
1 | ||
| 61615 - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-16050 |
AL2#..4DS |
1 | ||
| 61621-16060 |
AL2#..4DS |
1 | ||
| 61616 - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-16050 |
AL2#..4DS |
1 | ||
| 61622-16060 |
AL2#..4DS |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-16210 |
AL20,21..4DS |
1 | ||
| 61605-16130 |
AL2#..4DS |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-16010 |
AL2# |
1 | ||
| 61645-16030 |
AL20,21..4DS |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-16230 |
AL20,21..4DS |
1 | ||
| 61606-16150 |
AL2#..4DS |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-16020 |
AL2# |
1 | ||
| 61646-16050 |
AL20,21..4DS |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-16060 |
AL20,21..4DS |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-16070 |
AL20,21..4DS |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-16090 |
AL20,21..4DS |
1 | ||
| 61635-16060 |
AL2#..4DS |
1 | ||
| 61638 - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61636-16060 |
AL2#..4DS |
1 | ||
| 61636-16100 |
AL20,21..4DS |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61731-16900 |
AL2#..4DS |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61732-16900 |
AL2#..4DS |
1 | ||
| 61733B - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-16050 |
AL20,21..4DS |
1 | ||
| 61735-16040 |
AL2#..4DS |
1 | ||
| 61734B - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-16040 |
AL2#..4DS |
1 | ||
| 61736-16050 |
AL20,21..4DS |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-16040 |
AL20,21..4DS |
1 | ||
| 61737-16020 |
AL2#..4DS |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-16040 |
AL20,21..4DS |
1 | ||
| 61738-16020 |
AL2#..4DS |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-16900 |
AL20,21..4DS |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-16900 |
AL20,21..4DS |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-16900 |
AL2#..4DS |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-16900 |
AL2#..4DS |
1 | ||
| Common parts | ||||
| 90179-08143 | ||||
| 90950-01056 | ||||
| 90950-01248 | ||||
| 90950-01327 | ||||
| 91665-60820 | ||||
| Linked diagrams | ||||
| 7601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
