AL20-LEHNS (1982)
Toyota Corsa/Tercel
Production
May 1982
-
Oct 1989
Engine
2AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 3(8205- )AL20,21..3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-16020 |
AL20,21..3FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-16010 |
AL2#..3FC |
1 | ||
| 35412 - BODY, FRONT UPPER VALVE | ||||
| 35412-16010 |
AL2#..3FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-16010 |
AL2#..3FC |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-30020 |
AL2#..3FC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-23738 |
AL2#..3FC |
1 | ||
| 90501-28002 |
AL2#..3FC |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
AL2#..3FC |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
AL2#..3FC |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35421-22020 |
AL2#..3FC |
1 | ||
| 35441-30010 |
AL2#..3FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-20676 |
AL2#..3FC |
1 | ||
| 90501-25015 |
AL2#..3FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
AL2#..3FC |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
AL2#..3FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-16010 |
AL2#..3FC |
1 | ||
| 35427 - COVER, ACCUMULATOR | ||||
| 35474-16010 |
AL20,21..3FC |
1 | ||
| 35428 - GASKET, ACCUMULATOR COVER | ||||
| 35478-16010 |
AL20,21..3FC |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-16010 |
AL2#..3FC |
1 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-16010 |
AL2#..3FC |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90241-03003 |
AL2#..3FC |
1 | ||
| 35451B - ROLLER (FOR THROTTLE VALVE SLEEVE SETTING) | ||||
| 90361-03042 |
AL2#..3FC |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35461-16010 |
AL2#..3FC |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-09021 |
AL2#..3FC |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-16010 |
AL2#..3FC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-06011 |
AL2#..3FC |
1 | ||
| 35469 - SPACER (FOR VALVE BODY DOWN SHIFT PLUG) | ||||
| 35469-30010 |
AL2#..3FC |
6 | ||
| 35472F - COVER, FRONT VALVE BODY | ||||
| 35472-16010 |
AL2#..3FC |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 93381-16020 | ||||
| 93381-16040 | ||||
ILLUST NO. 1 OF 3(8205- )3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35032 - TUBE SUB-ASSY, OIL PUMP SUCTION, NO.2 | ||||
| 35032-16010 |
AL2#..3FC |
1 | ||
| 35032A - RING, O (FOR OIL PUMP SUCTION NO.2 TUBE) | ||||
| 90301-10001 |
AL2#..3FC |
2 | ||
| 35032A - RING, O (FOR OIL PUMP SUCTION NO.2 TUBE) | ||||
| 90301-10001 |
AL2#..3FC |
2 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-16010 |
AL2#..3FC |
1 | ||
| 35410A - BALL (FOR REVERSE SHIFT RESTRICT) | ||||
| 90360-06004 |
AL2#..3FC |
6 | ||
| 35413 - VALVE, CUT BACK | ||||
| 35458-16010 |
AL2#..3FC |
1 | ||
| 35414 - PLUG, CUT BACK | ||||
| 35459-16010 |
AL2#..3FC |
2 | ||
| 35414 - PLUG, CUT BACK | ||||
| 35459-16010 |
AL2#..3FC |
2 | ||
| 35414A - ROLLER (FOR CUT BACK PLUG) | ||||
| 90361-03044 |
AL2#..3FC |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-16010 |
AL2#..3FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-16010 |
AL2#..3FC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-16010 |
AL2#..3FC |
1 | ||
| 35441 - VALVE, LOW COAST SHIFT CONTROL | ||||
| 35441-16010 |
AL2#..3FC |
1 | ||
| 35441A - SPRING, COMPRESSION (FOR LOW COAST SHIFT CONTROL VALVE) | ||||
| 90501-12044 |
AL2#..3FC |
1 | ||
| 35441B - RING, SNAP (FOR LOW COAST SHIFT CONTROL VALVE) | ||||
| 96151-02000 |
AL2#..3FC |
1 | ||
| 35443 - SLEEVE, LOW COAST SHIFT CONTROL VALVE | ||||
| 35443-16010 |
AL2#..3FC |
1 | ||
| 35452F - PLUG, 2-3 SHIFT VALVE | ||||
| 35452-16010 |
AL2#..3FC |
1 | ||
| 35453 - VALVE, DETENT REGULATOR | ||||
| 35453-16010 |
AL2#..3FC |
1 | ||
| 35453A - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-10033 |
AL2#..3FC CW=12.0 WD=1 |
1 | ||
| 90501-10031 |
AL2#..3FC CW=12.5,WD=1 |
1 | ||
| 90501-10034 |
AL2#..3FC CW=11.3 WD=1 |
1 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-16010 |
AL2#..3FC |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-16010 |
AL2#..3FC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-16010 |
AL2#..3FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-06008 |
AL2#..3FC |
1 | ||
| 35463 - VALVE, DETENT PRESSURE CUT | ||||
| 35463-16010 |
AL2#..3FC |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-16010 |
AL2#..3FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-05007 |
AL2#..3FC |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-16010 |
AL2#..3FC |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-16010 |
AL2#..3FC |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-16010 |
AL2#..3FC |
1 | ||
| 35493F - SEAT, SHIFT VALVE PLUG | ||||
| 35493-16010 |
AL2#..3FC |
1 | ||
| Common parts | ||||
| 93381-16010 | ||||
| 93381-16016 | ||||
| 93381-16040 | ||||

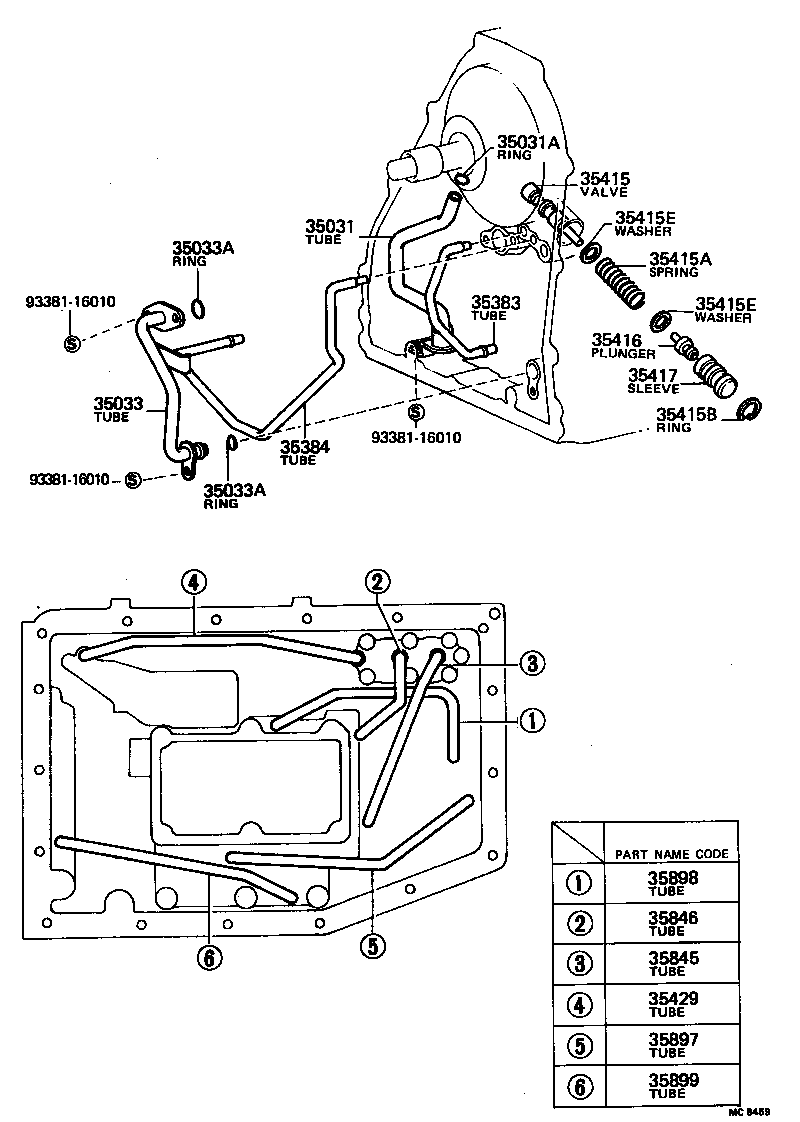

ILLUST NO. 3 OF 3(8205- )AL20,21..3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35031 - TUBE SUB-ASSY, OIL PUMP SUCTION, NO.1 | ||||
| 35031-16010 |
AL2#..3FC |
1 | ||
| 35031A - RING, O (FOR OIL PUMP SUCTION NO.1 TUBE) | ||||
| 90301-12002 |
AL2#..3FC |
1 | ||
| 35033 - TUBE SUB-ASSY, OIL PUMP DELIVERY | ||||
| 35033-16010 |
AL2#..3FC |
1 | ||
| 35033A - RING, O (FOR OIL PUMP DELIVERY) | ||||
| 90301-12002 |
AL2#..3FC OIL PUMP SIDE |
1 | ||
| 90301-10001 |
AL2#..3FC CASE SIDE |
1 | ||
| 35033A - RING, O (FOR OIL PUMP DELIVERY) | ||||
| 90301-12002 |
AL2#..3FC OIL PUMP SIDE |
1 | ||
| 90301-10001 |
AL2#..3FC CASE SIDE |
1 | ||
| 35383 - TUBE, REVERSE LINE PRESSURE | ||||
| 35383-16010 |
AL2#..3FC |
1 | ||
| 35384 - TUBE, THROTTLE PRESSURE | ||||
| 35384-16010 |
AL2#..3FC |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-16010 |
AL2#..3FC |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-16067 |
AL2#..3FC |
1 | ||
| 35415B - RING, HOLE SNAP (FOR PRESSURE REGULATOR VALVE SET) | ||||
| 96151-01900 |
AL2#..3FC |
1 | ||
| 35415E - WASHER, PLATE (FOR PRESSURE REGULATOR VALVE) | ||||
| 90201-08021 |
AL2#..3FC |
4 | ||
| 35415E - WASHER, PLATE (FOR PRESSURE REGULATOR VALVE) | ||||
| 90201-08021 |
AL2#..3FC |
4 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-16020 |
AL2#..3FC |
1 | ||
| 35416-16030 |
AL2#..3FC |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-16030 |
AL2#..3FC |
1 | ||
| 35417-16020 |
AL2#..3FC |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-16010 |
AL20,21..3FC |
1 | ||
| 35845 - TUBE, RR CLUTCH ACCUMULATOR | ||||
| 35845-16010 |
AL2#..3FC |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-16010 |
AL2#..3FC |
1 | ||
| 35897 - TUBE, 1ST & REVERSE BRAKE | ||||
| 35897-16010 |
AL2#..3FC |
1 | ||
| 35898 - TUBE, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35898-16010 |
AL2#..3FC |
1 | ||
| 35898-16020 |
AL2#..3FC |
1 | ||
| 35899 - TUBE, GOVERNOR PRESSURE | ||||
| 35899-16010 |
AL2#..3FC |
1 | ||
| Common parts | ||||
| 93381-16010 | ||||
