ST163-TCPGM (1988)

Toyota Corona Ff Coupe

Production May 1988 - Aug 1989
Engine 4SFI
Transmission VX
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

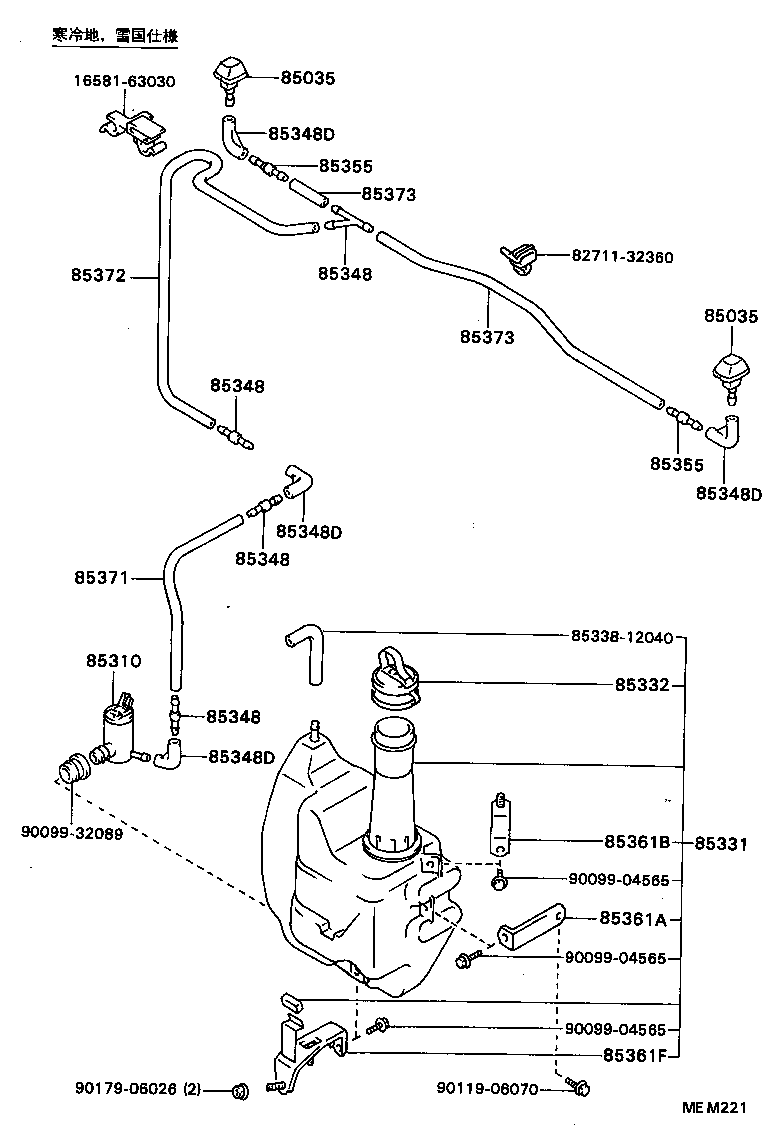

Click highlighted areas on diagram

diagram 1658163030 8271132360 85035 85035 85310 85331 85332 8533812040 85348 85348 85348 85348 85348D 85348D 85348D 85348D 85355 85355 85361A 85361B 85361F 85371 85372 85373 85373 9009904565 9009904565 9009904565 9009932089 9011906070 9017906026
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85035-20100

ST16#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-20100

ST16#

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

ST16#

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-20730

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ

 1
85331-20730

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85331-20500

ST16#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-32130

ST16#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ST16#

2-WAY

 2
85338-12240

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,3-WAY

 1
85349-89122

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,2-WAY

 3
85338-12240

ST163

ｶｺﾞｼﾏ ｼﾖｳ & ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ,3-WAY

 1
85348-14390

ST16#

3-WAY

 1
85349-89122

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ,2-WAY

 3
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ST16#

2-WAY

 2
85338-12240

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,3-WAY

 1
85349-89122

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,2-WAY

 3
85338-12240

ST163

ｶｺﾞｼﾏ ｼﾖｳ & ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ,3-WAY

 1
85348-14390

ST16#

3-WAY

 1
85349-89122

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ,2-WAY

 3
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ST16#

2-WAY

 2
85338-12240

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,3-WAY

 1
85349-89122

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,2-WAY

 3
85338-12240

ST163

ｶｺﾞｼﾏ ｼﾖｳ & ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ,3-WAY

 1
85348-14390

ST16#

3-WAY

 1
85349-89122

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ,2-WAY

 3
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ST16#

2-WAY

 2
85338-12240

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,3-WAY

 1
85349-89122

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,2-WAY

 3
85338-12240

ST163

ｶｺﾞｼﾏ ｼﾖｳ & ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ,3-WAY

 1
85348-14390

ST16#

3-WAY

 1
85349-89122

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ,2-WAY

 3
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

ST16#

 2
85355-14481

ST163

ｶｺﾞｼﾏ ｼﾖｳ & ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ

 4
85355-14481

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 4
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

ST16#

 2
85355-14481

ST163

ｶｺﾞｼﾏ ｼﾖｳ & ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ

 4
85355-14481

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 4
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

ST16#

 2
85355-14481

ST163

ｶｺﾞｼﾏ ｼﾖｳ & ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ

 4
85355-14481

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 4
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

ST16#

 2
85355-14481

ST163

ｶｺﾞｼﾏ ｼﾖｳ & ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ

 4
85355-14481

ST163

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 4
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

ST16#

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

ST16#

 2
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-20290

ST163

 1
85361-20290

ST163

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-20300

ST163

 1
85361-20300

ST163

 1
85361F - BRACKET, WINDSHIELD WASHER, NO.3
85363-20290

ST163

 1
85363-20290

ST163

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

ST163

*H,L=280,ｶｺﾞｼﾏ ｼﾖｳ & ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ

 1
90099-33299

ST163

*H,L=280,ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
90446-07001

ST16#

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33094

ST16#

*H,L=580,NO.2

 1
90099-33299

ST16#

*H,L=50,NO.1

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ST16#

*H,L=460,左側,右側

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ST16#

*H,L=460,左側,右側

 1
Common parts
16581-63030
82711-32360
85338-12040
90099-04565
90099-32089
90119-06070
90179-06026
