ST162-TCPVF (1987)

Toyota Corona Ff Coupe

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission GT
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

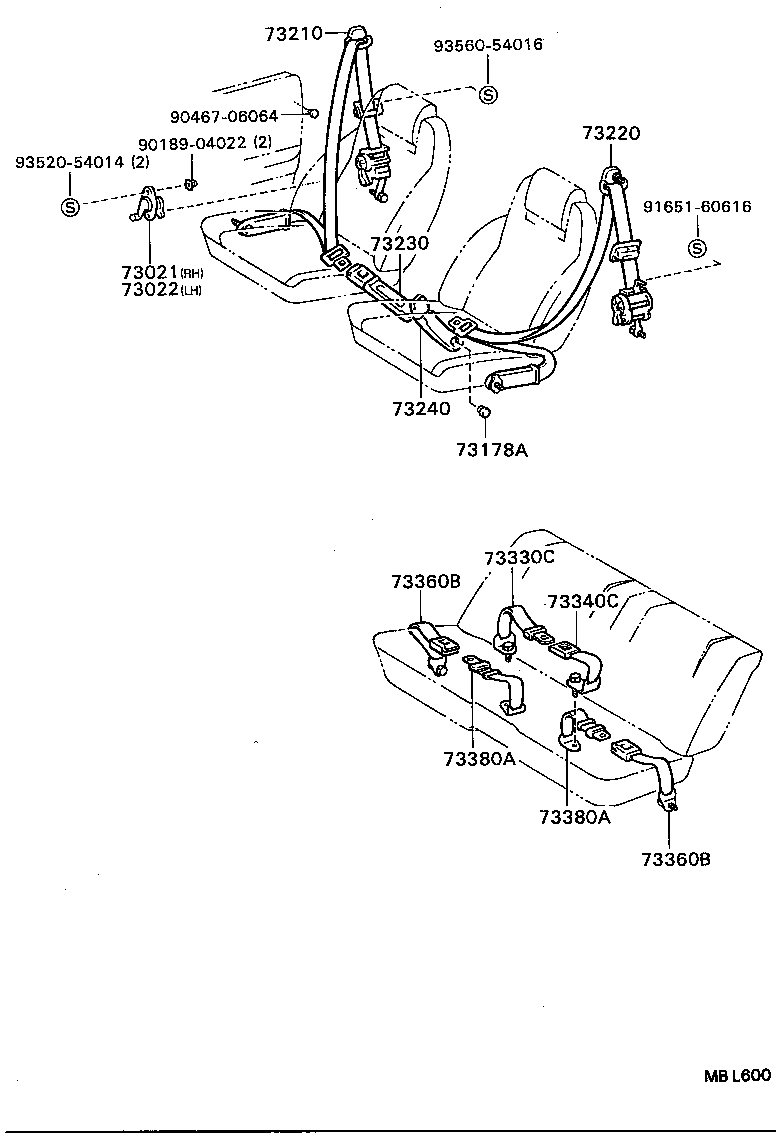

Click highlighted areas on diagram

diagram 73021 73022 73178A 73210 73220 73230 73240 73330C 73340C 73360B 73360B 73380A 73380A 9018904022 9046706064 9165160616 9352054014 9356054016
Part # Description Qty Price
73021 - LEVER SUB-ASSY, SEAT BELT COMFORT, RH
73021-20011

ST16#

 1
73021-20010

ST16#

 1
73022 - LEVER SUB-ASSY, SEAT BELT COMFORT, LH
73022-20010

ST16#

 1
73022-20011

ST16#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-1601011

ST16#

BLACK,TRIM2#

 2
73178-1601034

ST16#

BLUE,TRIM8#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2032104

ST16#

DEEP BLUE,TRIM8#

 1
73210-2032201

ST16#

BLACK,TRIM2#

 1
73210-2032101

ST16#

BLACK,TRIM2#

 1
73210-2032204

ST16#

DEEP BLUE,TRIM8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-2021201

ST16#

BLACK,TRIM2#

 1
73220-2021104

ST16#

DEEP BLUE,TRIM8#

 1
73220-2021101

ST16#

BLACK,TRIM2#

 1
73220-2021204

ST16#

DEEP BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-2039004

ST16#

DEEP BLUE,TRIM8#

 1
73230-2039001

ST16#

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-2039001

ST16#

BLACK,TRIM2#

 1
73230-2039004

ST16#

DEEP BLUE,TRIM8#

 1
73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH
73330-2022004

ST16#

DEEP BLUE,TRIM8#

 1
73330-2022001

ST16#

BLACK,TRIM2#

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-2008004

ST16#

DEEP BLUE,TRIM8#

 1
73340-2008001

ST16#

BLACK,TRIM2#

 1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-2014001

ST16#

BLACK,TRIM2#

 2
73360-2014004

ST16#

DEEP BLUE,TRIM8#

 2
73360B - BELT ASSY, REAR SEAT, OUTER
73360-2014001

ST16#

BLACK,TRIM2#

 2
73360-2014004

ST16#

DEEP BLUE,TRIM8#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-2010001

ST16#

BLACK,TRIM2#

 2
73380-2010004

ST16#

DEEP BLUE,TRIM8#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-2010001

ST16#

BLACK,TRIM2#

 2
73380-2010004

ST16#

DEEP BLUE,TRIM8#

 2
Common parts
90189-04022
90467-06064
91651-60616
93520-54014
93560-54016
