ST162-TCPVF (1987)

Toyota Corona Ff Coupe

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission GT
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

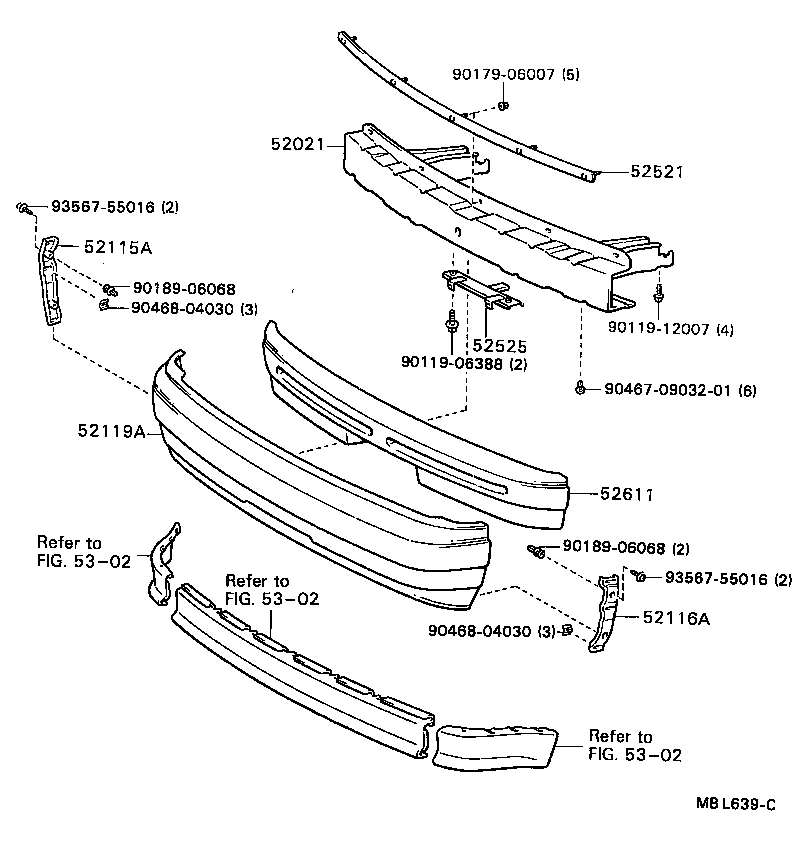

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52521 52525 52611 5302 5302 5302 9011906388 9011912007 9017906007 9018906068 9018906068 904670903201 9046804030 9046804030 9356755016 9356755016
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20100

ST16#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20160

ST16#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20140

ST16#

 1
52119A - COVER, FRONT BUMPER
52119-2023010

ST16#..EX,GT,VX

GRAY M/SILVER M,23E

 1
52119-2023043

ST16#

GRAY M,168

 1
52119-2023018

ST16#

SUPER WHITE 2,040

 1
52119-2023053

ST16#

A SILVER M,920

 1
52119-2023012

ST16#

RED MAICA,3H4

 1
52119-2023024

ST16#

B BLUE MAICA M,8E4

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20061

ST16#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-20060

ST16#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20060

ST16#

 1
Common parts
90119-06388
90119-12007
90179-06007
90189-06068
90467-0903201
90468-04030
93567-55016
Linked diagrams
5302
