ST162-TCPVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

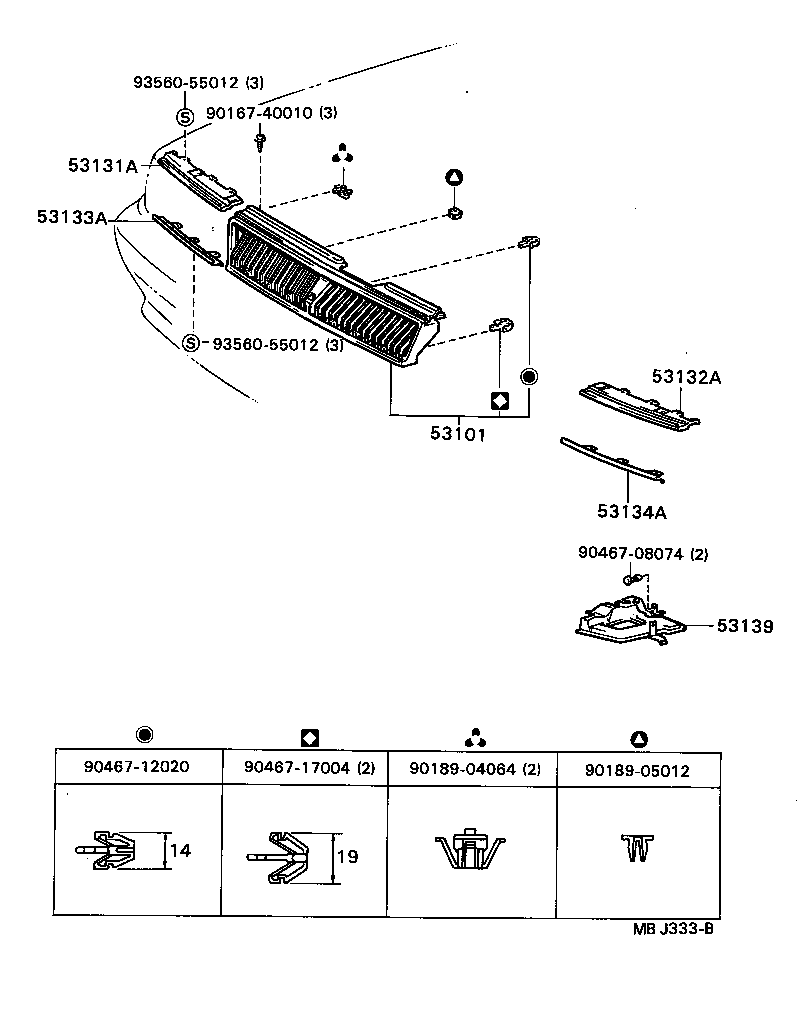

Click highlighted areas on diagram

diagram 53101 53131A 53132A 53133A 53134A 53139 9016740010 9018904064 9018905012 9046708074 9046712020 9046717004 9356055012 9356055012
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-20170

AT160,ST16#

 1
53131A - DOOR, HEADLAMP, RH
53131-20240

AT160,ST16#

 1
53132A - DOOR, HEADLAMP, LH
53132-20210

AT160,ST16#

 1
53133A - DOOR, HEADLAMP, LOWER RH
53133-20060

AT160,ST16#

 1
53134A - DOOR, HEADLAMP, LOWER LH
53134-20030

AT160,ST16#

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-20040

AT160,ST16#

 1
Common parts
90167-40010
90189-04064
90189-05012
90467-08074
90467-12020
90467-17004
93560-55012
