ST162-TCPVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )4FC

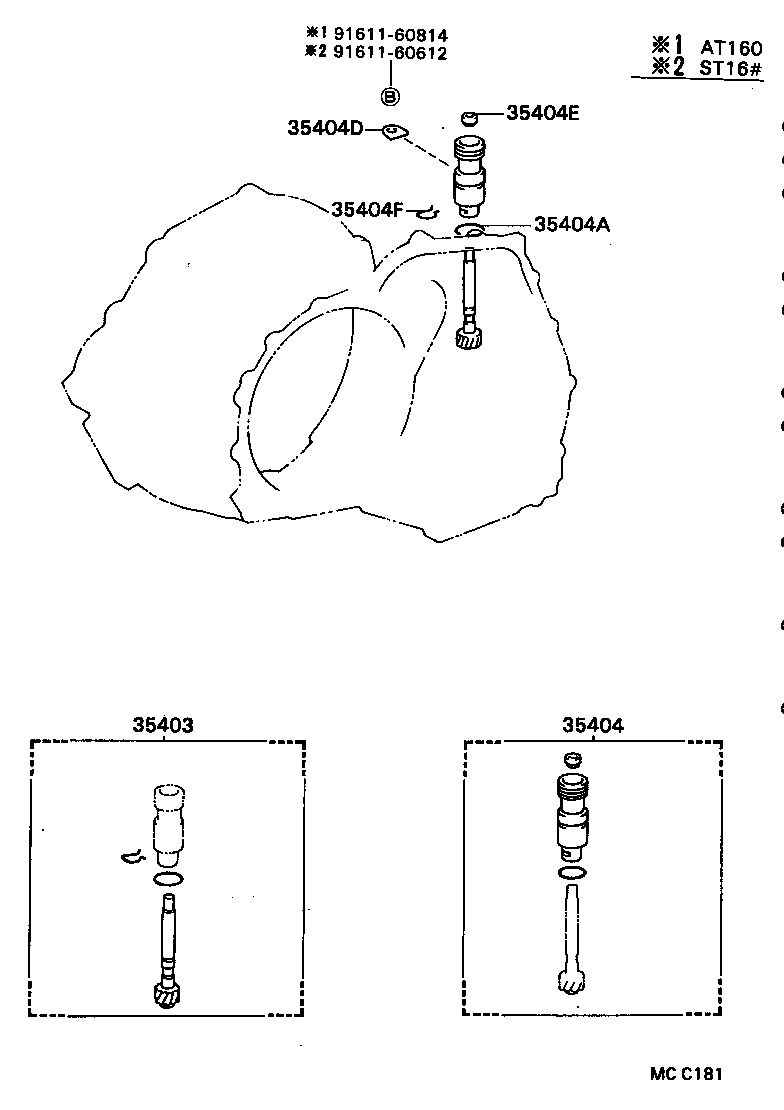

Click highlighted areas on diagram

diagram 35403 35404 35404A 35404D 35404E 35404F 9161160612 9161160814
Part # Description Qty Price
35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-39106

ST162..4FC

 1
35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-32010

ST16#..4FC

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24018

ST16#..4FC

 1
35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-14010

ST16#..4FC

 1
35404E - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AT160,ST16#..4FC

 1
35404F - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AT160,ST16#..4FC

 1
Common parts
91611-60612
91611-60814
