ST162-TCPVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )3SGELU..4FC

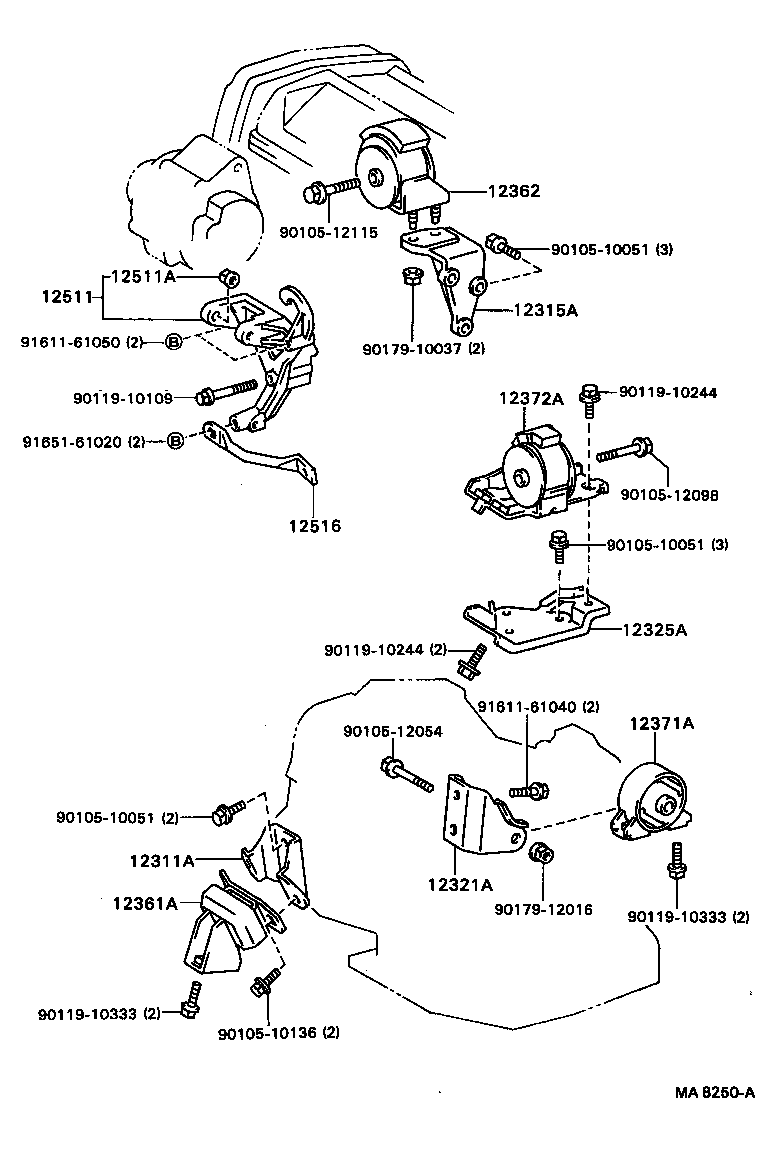

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12361A 12362 12371A 12372A 12511 12511A 12516 9010510051 9010510051 9010510051 9010510136 9010512054 9010512098 9010512115 9011910109 9011910244 9011910244 9011910333 9011910333 9017910037 9017912016 9161161040 9161161050 9165161020
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74020

1SILU,3SGELU..ST16#..4FC

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74010

1SILU,3SGELU..ST16#

 1
12315-74030

1SILU,3SGELU..ST16#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74020

1SILU,3SGELU..ST16#..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74020

1SILU,3SGELU..ST16#..4FC

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-63071

1SILU,3SGELU..ST16#..4FC

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74011

1SILU,3SGELU..ST16#

 1
12362-74050

1SILU,3SGELU..ST16#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74040

1SILU,3SGELU..ST16#..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74020

1SILU,3SGELU..ST16#..4FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74011

3SGELU..ST162

 1
12511-88361

3SGELU..ST162

 1
12511A - BUSH, ALTERNATOR BRACKET
27351-70010

3SGELU..ST162

 1
12516 - BRACKET, ALTERNATOR, NO.2
12512-88362

3SGELU..ST162

 1
Common parts
90105-10051
90105-10136
90105-12054
90105-12098
90105-12115
90119-10109
90119-10244
90119-10333
90179-10037
90179-12016
91611-61040
91611-61050
91651-61020
