ST162-TCMVF (1985)
Toyota Corona Ff Coupe

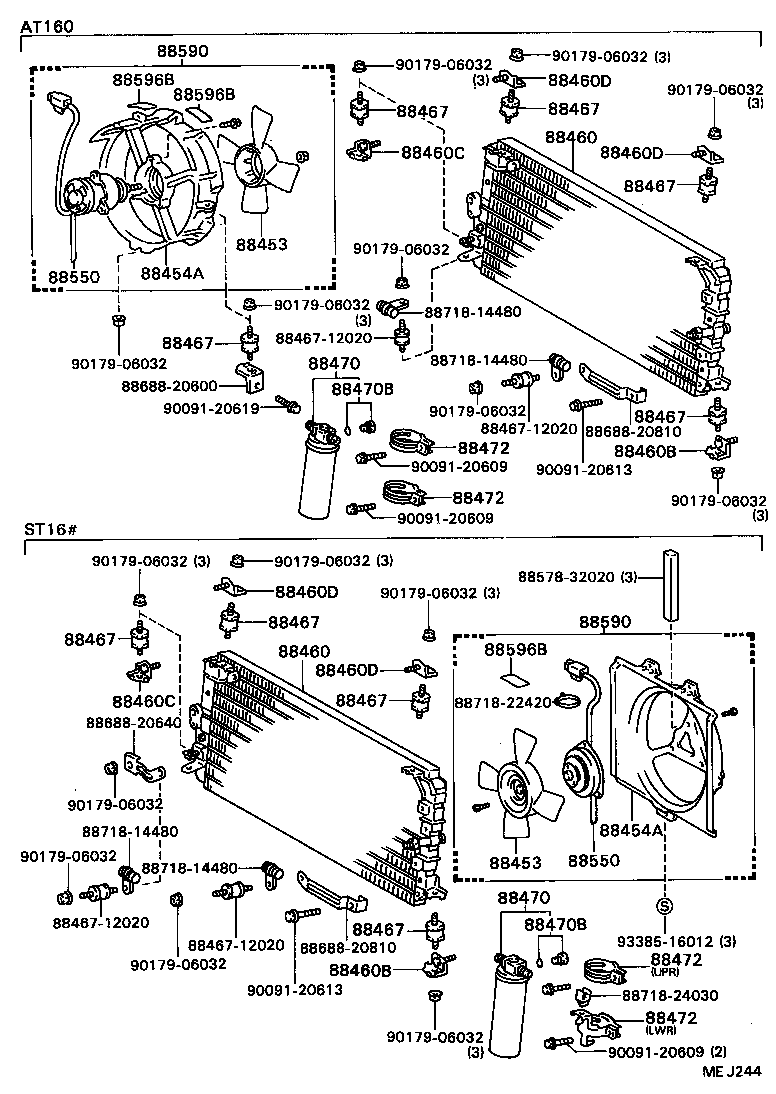

ILLUST NO. 1 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-32020 |
ST16# |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-32020 |
ST16# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-32030 |
ST162 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-32030 |
ST162 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
AT160,ST16# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
AT160,ST16# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-20650 |
AT160,ST16# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-20650 |
AT160,ST16# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-20660 |
AT160,ST16# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-20660 |
AT160,ST16# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-20620 |
AT160,ST16# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-20620 |
AT160,ST16# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-20620 |
AT160,ST16# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-20620 |
AT160,ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST16# |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST16# |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST16# |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST16# |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST16# |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST16# |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST16# |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST16# |
5 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST16# |
5 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
AT160,ST16# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
AT160,ST16# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
AT160,ST16# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
AT160,ST16# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
AT160,ST16# UPR |
1 | ||
| 88473-20030 |
AT160,ST16# LWR |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
AT160,ST16# UPR |
1 | ||
| 88473-20030 |
AT160,ST16# LWR |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
AT160,ST16# UPR |
1 | ||
| 88473-20030 |
AT160,ST16# LWR |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
AT160,ST16# UPR |
1 | ||
| 88473-20030 |
AT160,ST16# LWR |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12090 |
ST16# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12090 |
ST16# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20130 |
ST162 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20130 |
ST162 |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
AT160,ST162 CAUTION |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
AT160,ST162 CAUTION |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
AT160,ST162 CAUTION |
1 | ||
| Common parts | ||||
| 88467-12020 | ||||
| 88578-32020 | ||||
| 88688-20600 | ||||
| 88688-20640 | ||||
| 88688-20810 | ||||
| 88718-14480 | ||||
| 88718-22420 | ||||
| 88718-24030 | ||||
| 90091-20609 | ||||
| 90091-20613 | ||||
| 90091-20619 | ||||
| 90179-06032 | ||||
| 93385-16012 | ||||

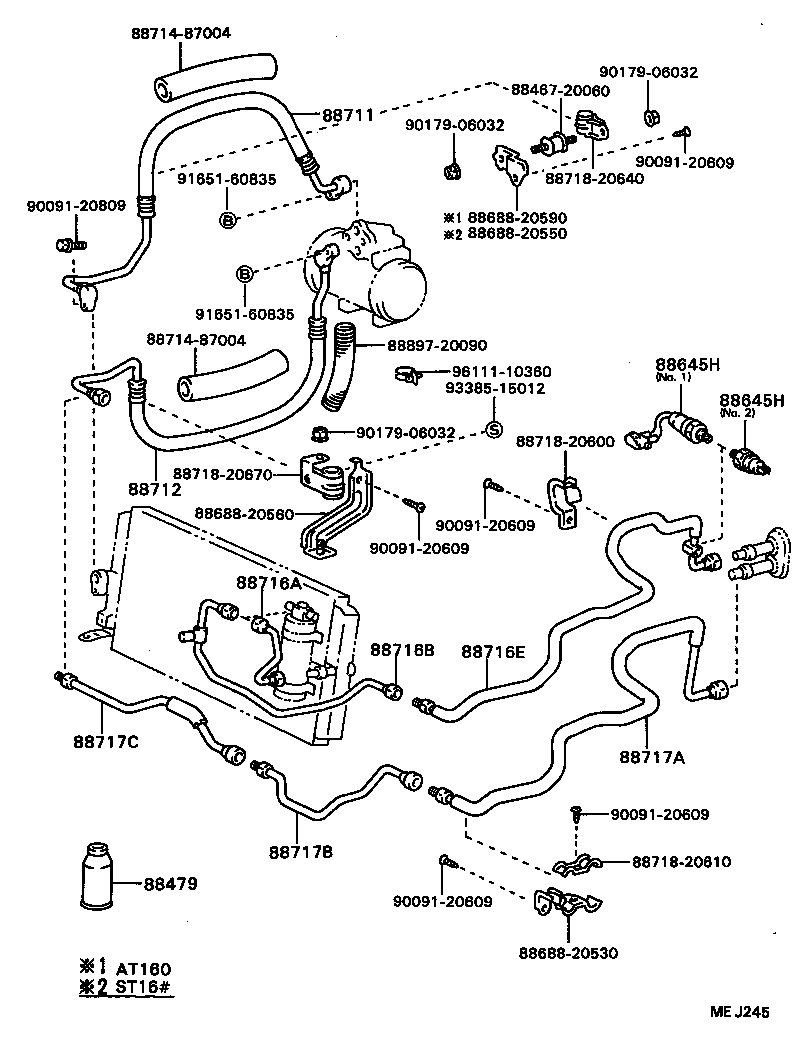

ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AT160,ST16# 400G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AT160,ST16# NO.1 |
1 | ||
| 88645-10020 |
AT160,ST16# NO.2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AT160,ST16# NO.1 |
1 | ||
| 88645-10020 |
AT160,ST16# NO.2 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20450 |
ST16# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20590 |
ST16# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2B080 |
AT160,ST16# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2B060 |
AT160,ST16# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2B070 |
AT160,ST16# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-20470 |
AT160,ST16# |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-20540 |
AT160,ST16# |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-20520 |
ST16# |
1 | ||
| Common parts | ||||
| 88467-20060 | ||||
| 88688-20530 | ||||
| 88688-20550 | ||||
| 88688-20560 | ||||
| 88688-20590 | ||||
| 88714-87004 | ||||
| 88718-20600 | ||||
| 88718-20610 | ||||
| 88718-20640 | ||||
| 88718-20670 | ||||
| 88897-20090 | ||||
| 90091-20609 | ||||
| 90091-20809 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 93385-15012 | ||||
| 96111-10360 | ||||
