ST162-TCMVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

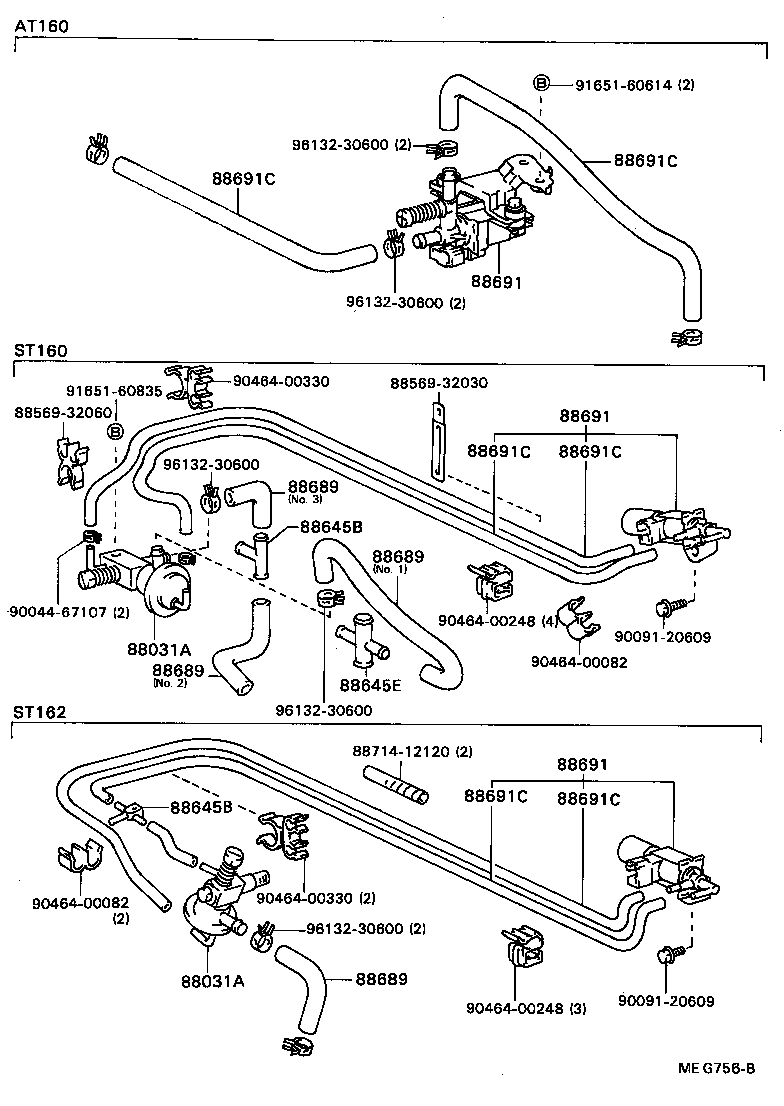

Click highlighted areas on diagram

diagram 88031A 88031A 8856932030 8856932060 88645B 88645B 88645E 88689 88689 88689 88689 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 8871412120 9004467107 9009120609 9009120609 9046400082 9046400082 9046400248 9046400248 9046400330 9046400330 9165160614 9165160835 9613230600 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-24020

ST162

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-24020

ST162

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

ST162

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

ST162

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-40030

ST162

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-40030

ST162

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-40030

ST162

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-40030

ST162

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20700

ST16#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20700

ST16#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20700

ST16#

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08207

ST16#

*H,L=1150

 1
90445-08194

ST16#

*H,L=1100

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08207

ST16#

*H,L=1150

 1
90445-08194

ST16#

*H,L=1100

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08207

ST16#

*H,L=1150

 1
90445-08194

ST16#

*H,L=1100

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08207

ST16#

*H,L=1150

 1
90445-08194

ST16#

*H,L=1100

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08207

ST16#

*H,L=1150

 1
90445-08194

ST16#

*H,L=1100

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08207

ST16#

*H,L=1150

 1
90445-08194

ST16#

*H,L=1100

 1
Common parts
88569-32030
88569-32060
88714-12120
90044-67107
90091-20609
90464-00082
90464-00248
90464-00330
91651-60614
91651-60835
96132-30600
