ST162-TCMVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

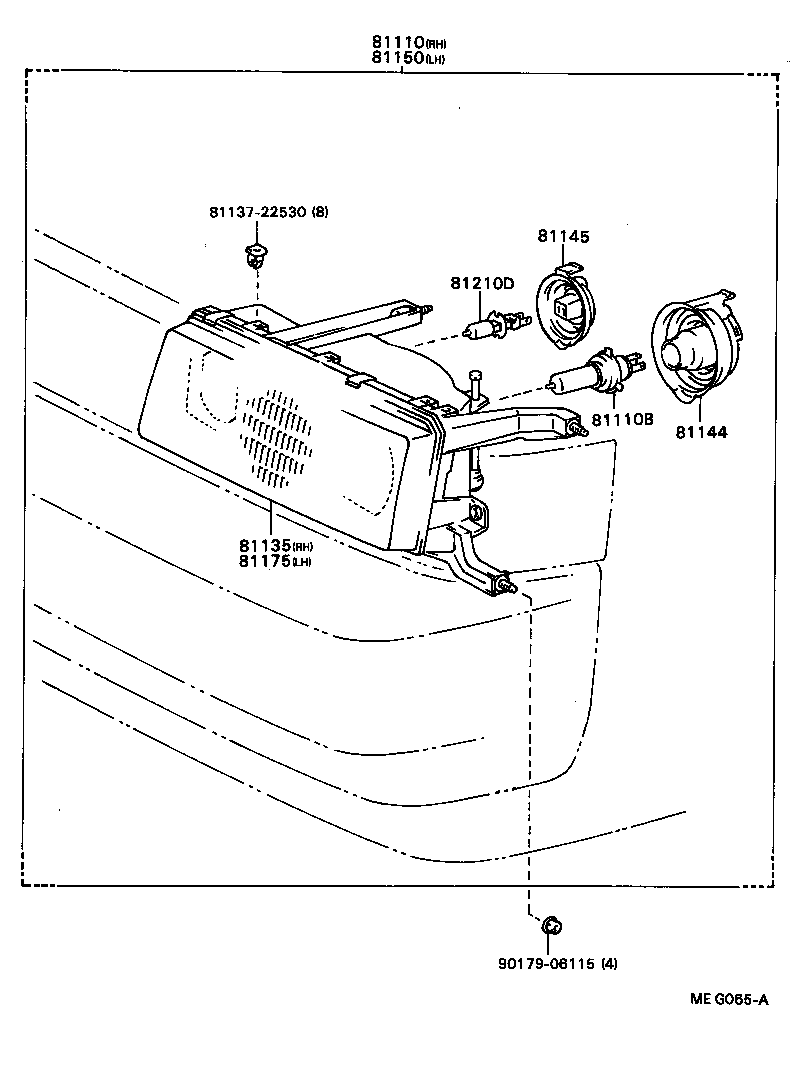

Click highlighted areas on diagram

diagram 81110 81110B 81135 8113722530 81144 81145 81150 81175 81210D 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-2B120

AT160,ST16#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AT160,ST16#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B120

AT160,ST16#

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

AT160,ST16#

 1
81145 - COVER, HEADLAMP, NO.2
81212-30030

AT160,ST16#

 1
81150 - HEADLAMP ASSY, LH
81150-2B080

AT160,ST16#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B080

AT160,ST16#

 1
81210D - BULB, FOG LAMP
90981-13031

AT160,ST16#

12V 55W,ﾊﾛｹﾞﾝ,12V 55W,HALOGEN

 2
Common parts
81137-22530
90179-06115
