ST162-TCMVF (1985)
Toyota Corona Ff Coupe
Production
Aug 1985
-
Aug 1987
Engine
3SGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )ST162

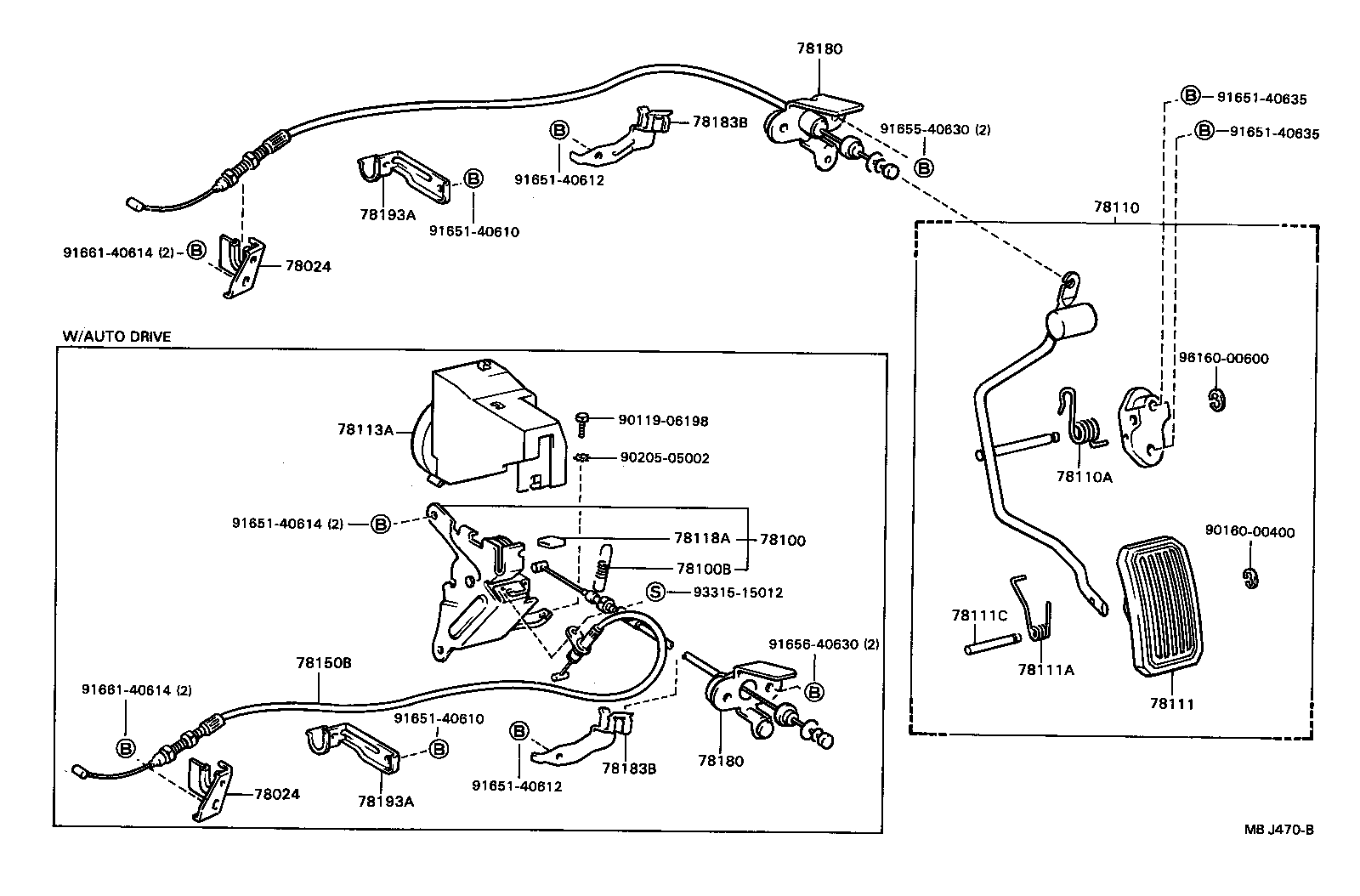

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20030 |
ST162..5F |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20030 |
ST162..5F |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-20030 |
ST162 |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90506-08019 |
ST162 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20260 |
ST162..5F W/O AUTO DRIVE |
1 | ||
| 78120-20270 |
ST162..5F W/AUTO DRIVE |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
AT160,ST16#..5F W/O AUTO DRIVE |
1 | ||
| 90508-18048 |
ST162..5F W/AUTO DRIVE |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
AT160,ST16# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AT160,ST16# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT160,ST16# |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-20140 |
ST162 |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-12010 |
ST162 |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-20080 |
ST162..5F |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-20620 |
ST162..5F W/O AUTO DRIVE |
1 | ||
| 78180-20440 |
ST162 W/AUTO DRIVE |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-20620 |
ST162..5F W/O AUTO DRIVE |
1 | ||
| 78180-20440 |
ST162 W/AUTO DRIVE |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20030 |
AT160,ST16# W/APRON |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20030 |
AT160,ST16# W/APRON |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-20030 |
ST162 |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-20030 |
ST162 |
1 | ||
| Common parts | ||||
| 90119-06198 | ||||
| 90160-00400 | ||||
| 90205-05002 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40635 | ||||
| 91655-40630 | ||||
| 91656-40630 | ||||
| 91661-40614 | ||||
| 93315-15012 | ||||
| 96160-00600 | ||||
