ST162-TCMVF (1985)
Toyota Corona Ff Coupe
Production
Aug 1985
-
Aug 1987
Engine
3SGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

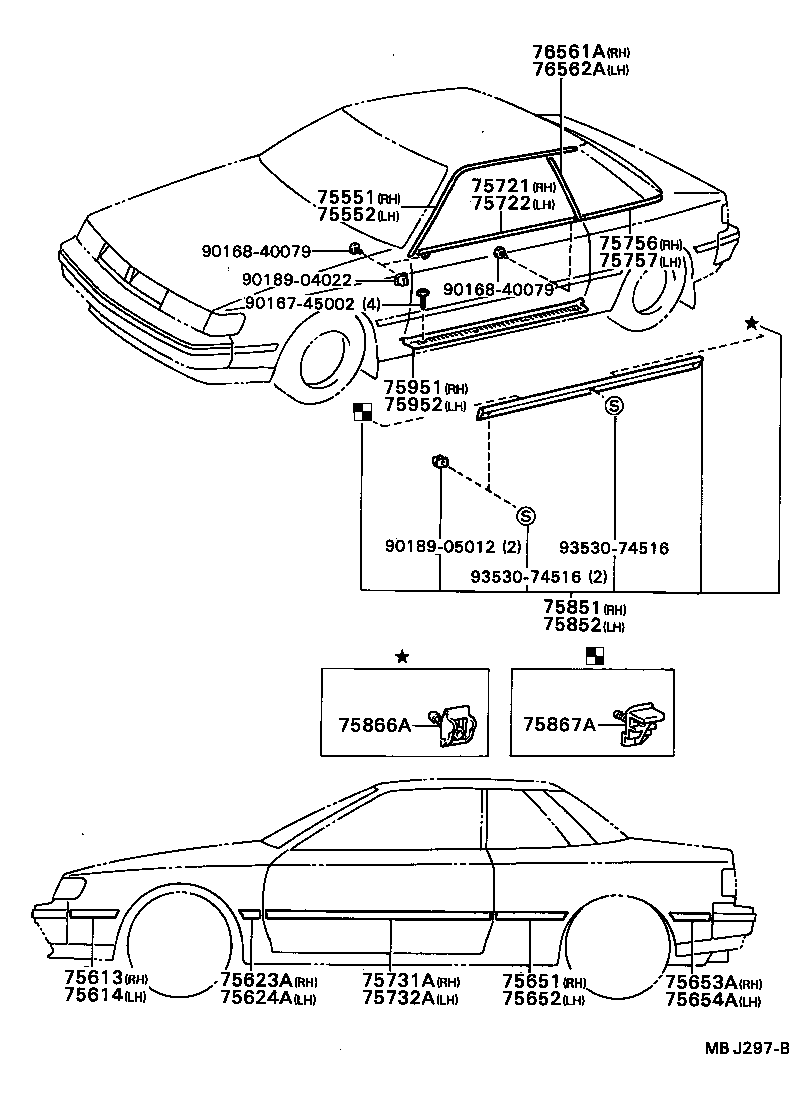

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-20250 |
AT160,ST16# |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-20250 |
AT160,ST16# |
1 | ||
| 75613 - MOULDING, FRONT FENDER, OUTSIDE RH | ||||
| 75611-20220 |
AT160,ST16# |
1 | ||
| 75614 - MOULDING, FRONT FENDER, OUTSIDE LH | ||||
| 75612-20190 |
AT160,ST16# |
1 | ||
| 75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH | ||||
| 75623-20080 |
AT160,ST16# |
1 | ||
| 75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH | ||||
| 75624-20080 |
AT160,ST16# |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75651-20210 |
AT160,ST16# |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75652-20200 |
AT160,ST16# |
1 | ||
| 75653A - MOULDING, QUARTER, OUTSIDE REAR RH | ||||
| 75653-20180 |
AT160,ST16# |
1 | ||
| 75654A - MOULDING, QUARTER, OUTSIDE REAR LH | ||||
| 75654-20170 |
AT160,ST16# |
1 | ||
| 75721 - MOULDING, FRONT DOOR BELT, RH | ||||
| 75710-20270 |
AT160,ST16# |
1 | ||
| 75722 - MOULDING, FRONT DOOR BELT, LH | ||||
| 75720-20270 |
AT160,ST16# |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-20230 |
AT160,ST16# |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-20230 |
AT160,ST16# |
1 | ||
| 75756 - MOULDING, QUARTER BELT, RH | ||||
| 75671-20020 |
AT160,ST16# |
1 | ||
| 75757 - MOULDING, QUARTER BELT, LH | ||||
| 75672-20020 |
AT160,ST16# |
1 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75850-29185 |
AT160,ST16# |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75850-29185 |
AT160,ST16# |
1 | ||
| 75866A - RETAINER, ROCKER PANEL MOULDING | ||||
| 75866-20020 |
AT160,ST16# |
2 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-20050 |
AT160,ST16# |
4 | ||
| 75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH | ||||
| 67913-2014004 |
AT160,ST16# BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67913-2014003 |
AT160,ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67913-2014003 |
AT160,ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67913-2014004 |
AT160,ST16# BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 76561A - MOULDING, CENTER PILLAR, RH | ||||
| 76561-20010 |
AT160,ST16# |
1 | ||
| 76562A - MOULDING, CENTER PILLAR, LH | ||||
| 76562-20010 |
AT160,ST16# |
1 | ||
| Common parts | ||||
| 90167-45002 | ||||
| 90168-40079 | ||||
| 90189-04022 | ||||
| 90189-05012 | ||||
| 93530-74516 | ||||
