ST162-TCMVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

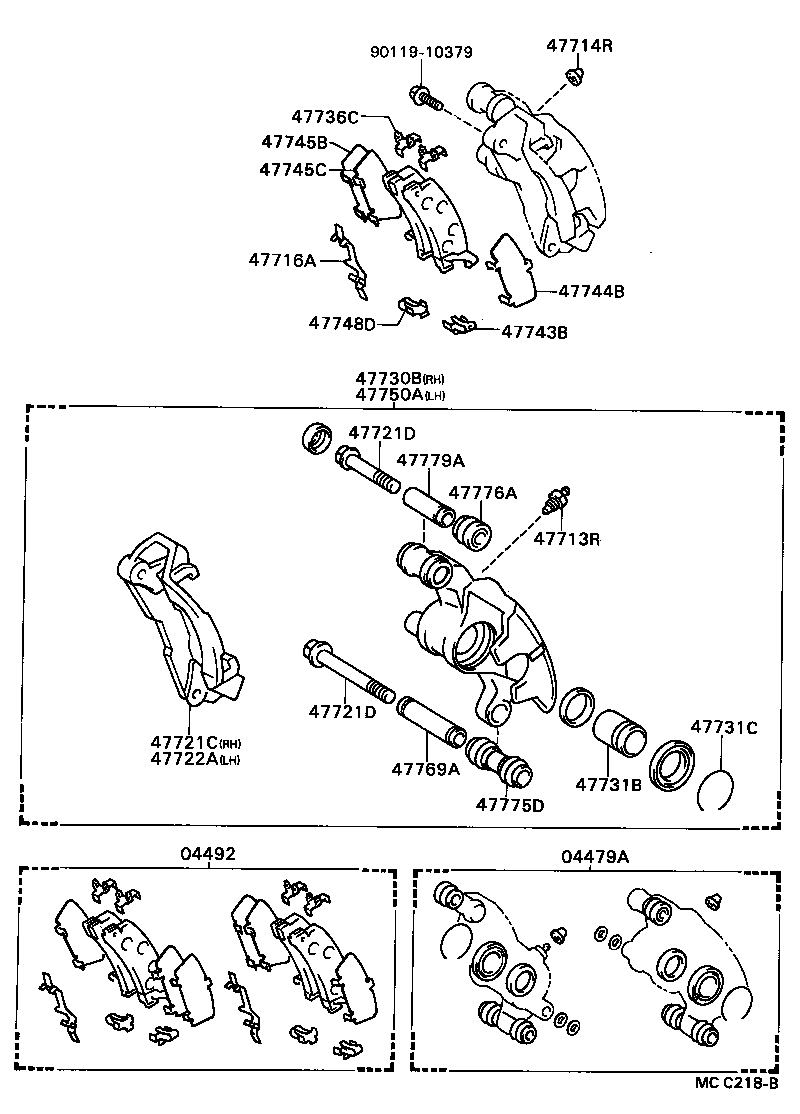

ILLUST NO. 1 OF 2(8508- )AT160,ST162

Click highlighted areas on diagram

diagram 04479A 04492 47713R 47714R 47716A 47721C 47721D 47721D 47722A 47730B 47731B 47731C 47736C 47743B 47744B 47745B 47745C 47748D 47750A 47769A 47775D 47776A 47779A 9011910379
Part # Description Qty Price
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-20090

AT160,ST162

 1
04492 - PAD KIT, DISC BRAKE, REAR
04492-20060

AT160,ST162

 1
47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

AT160,ST162

 2
47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

AT160,ST162

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-20060

AT160,ST162

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-20130

AT160,ST162

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-08431

AT160,ST162

*8−1.25PX62−20,*8-1.25PX62-20

 2
90109-08098

AT160,ST162

*8−1.25PX56−15,*8-1.25PX56-15

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-08431

AT160,ST162

*8−1.25PX62−20,*8-1.25PX62-20

 2
90109-08098

AT160,ST162

*8−1.25PX56−15,*8-1.25PX56-15

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-20130

AT160,ST162

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-20230

AT160,ST162

 1
47731B - PISTON, REAR DISC BRAKE
47731-20110

AT160,ST162

 2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-45001

AT160,ST162

 2
47736C - PLATE, REAR DISC BRAKE PAD GUIDE
47736-12030

AT160,ST162

 4
47743B - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47743-12030

AT160,ST162

 2
47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47744-12070

AT160,ST162

 4
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-32030

AT160,ST162

 2
47745C - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)
47742-32030

AT160,ST162

 2
47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47748-12090

AT160,ST162

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-20220

AT160,ST162

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-28010

AT160,ST162

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-14010

AT160,ST162

 2
47776A - BOOT, MAIN PIN(FOR REAR DISC BRAKE)
47776-12010

AT160,ST162

 2
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-12010

AT160,ST162

 2
Common parts
90119-10379

ILLUST NO. 2 OF 2(8508- )AT160,ST162

Click highlighted areas on diagram

diagram 04466 04946 04948
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-33010

AT160,ST162

ﾏｰｸ AK PA511

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-32050

AT160,ST162

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12010

AT160,ST162

 1
