ST162-TCMVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44642 44663 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-20590

ST160..4FC;AT160,ST162;ST160..5F..EXS

JKC

 1
04443-20400

AT160,ST16#

AISIN

 1
04443-20590

AT160,ST16#

JKC

 1
04443-20610

AT160,ST16#

AISIN

 1
04443-20400

ST160..4FC;AT160,ST162;ST160..5F..EXS

AISIN

 1
04443-20620

AT160,ST16#

JKC

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

AT160,ST16#

JKC

 1
44606-12520

AT160,ST16#

AISIN

 1
44610 - BOOSTER ASSY, BRAKE
44610-2B080

AT160,ST16#

 1
44610-20770

ST160..4FC;AT160,ST162;ST160..5F..EXS

 1
44610-20770

AT160,ST16#

 1
44618 - SEAL, BOOSTER BODY
44621-28120

AT160,ST16#

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

AT160,ST16#

 1
44642 - PISTON, BRAKE BOOSTER
44642-32010

AT160,ST16#

 1
44663 - KEY, VALVE STOPPER
44635-28120

AT160,ST16#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AT160,ST16#

 1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-20590

ST160..4FC;AT160,ST162;ST160..5F..EXS

JKC

 1
04443-20400

AT160,ST16#

AISIN

 1
04443-20590

AT160,ST16#

JKC

 1
04443-20610

AT160,ST16#

AISIN

 1
04443-20400

ST160..4FC;AT160,ST162;ST160..5F..EXS

AISIN

 1
04443-20620

AT160,ST16#

JKC

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

AT160,ST16#

 1
44605-22021

AT160,ST16#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

AT160,ST16#

JKC

 1
44606-12520

AT160,ST16#

AISIN

 1
44610 - BOOSTER ASSY, BRAKE
44610-2B080

AT160,ST16#

 1
44610-20770

ST160..4FC;AT160,ST162;ST160..5F..EXS

 1
44610-20770

AT160,ST16#

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

AT160,ST16#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

AT160,ST16#

 1
44637-32040

ST160..4FC;AT160,ST162;ST160..5F..EXS

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

AT160,ST16#

 1
44645-10080

AT160,ST16#

 1
44673A - BODY, BOOSTER VALVE
44673-32040

AT160,ST16#

 1
44673-32020

AT160,ST16#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AT160,ST16#

 1
Common parts
90179-08038

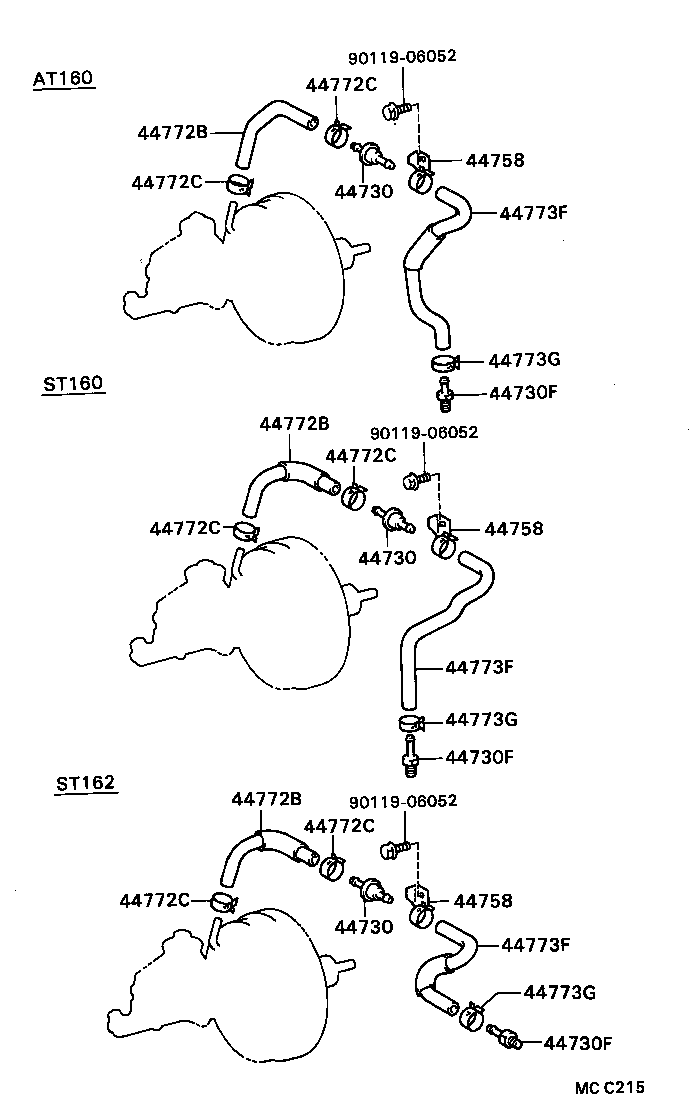

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 44730 44730 44730 44730F 44730F 44730F 44758 44758 44758 44772B 44772B 44772B 44772C 44772C 44772C 44772C 44772C 44772C 44773F 44773F 44773F 44773G 44773G 44773G 9011906052 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AT160,ST16#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AT160,ST16#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AT160,ST16#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

ST162

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

ST162

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

ST162

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20141

AT160,ST16#

 1
44758-20140

AT160,ST16#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20141

AT160,ST16#

 1
44758-20140

AT160,ST16#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20141

AT160,ST16#

 1
44758-20140

AT160,ST16#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20180

ST16#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20180

ST16#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20180

ST16#

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AT160,ST16#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AT160,ST16#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AT160,ST16#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AT160,ST16#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AT160,ST16#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AT160,ST16#

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-20440

ST162

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20440

ST162

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20440

ST162

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

AT160,ST16#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

AT160,ST16#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

AT160,ST16#

 1
Common parts
90119-06052
