ST162-TCMVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ST16#

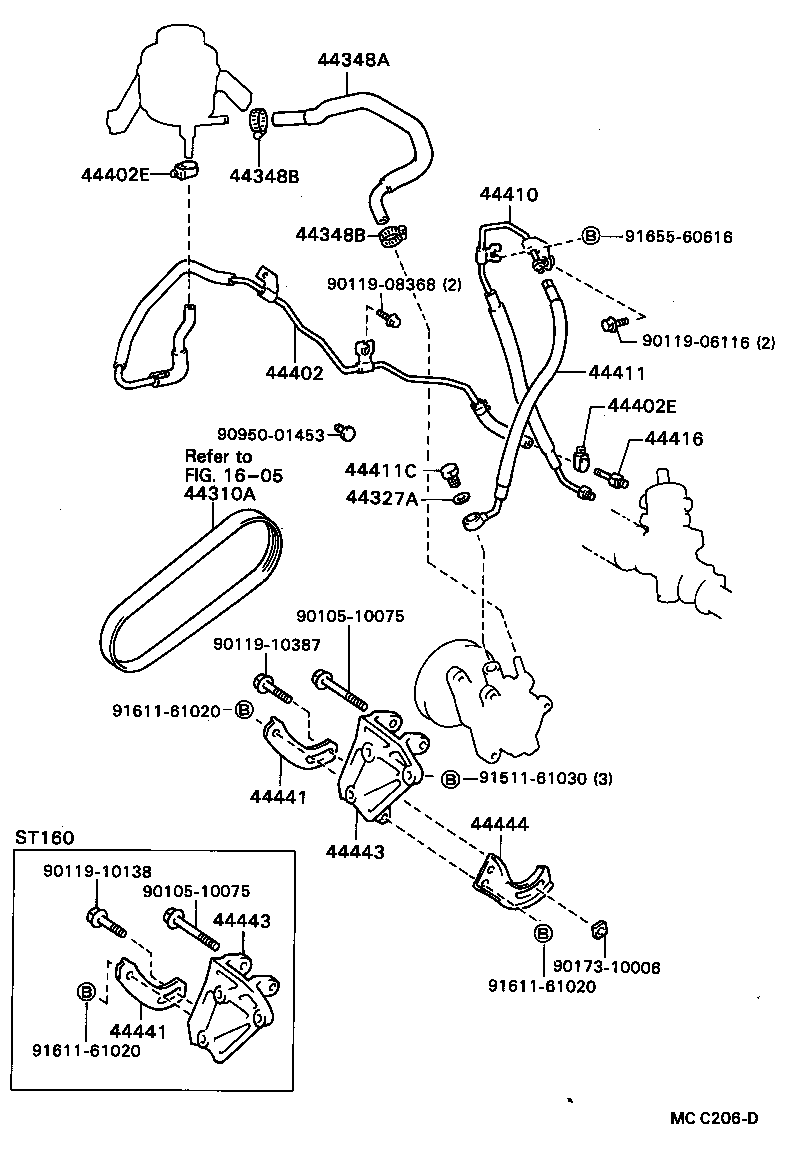

Click highlighted areas on diagram

diagram 1605 44310A 44327A 44348A 44348B 44348B 44402 44402E 44402E 44410 44411 44411C 44416 44441 44441 44443 44443 44444 9010510075 9010510075 9011906116 9011908368 9011910138 9011910387 9017310006 9095001453 9151161030 9161161020 9161161020 9161161020 9165560616
Part # Description Qty Price
44310A - BELT, V(FOR VANE PUMP)
99363-50760

ST16#

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

ST16#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20100

ST16#

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21005

AT160,ST16#

 2
90460-26001

AT160,ST16#

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21005

AT160,ST16#

 2
90460-26001

AT160,ST16#

 2
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-20100

ST16#

 1
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

AT160,ST16#

GEAR SIDE

 1
90467-16008

AT160,ST16#

RESERVOIR SIDE

 1
90467-16008

AT160,ST16#

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

AT160,ST16#

GEAR SIDE

 1
90467-16008

AT160,ST16#

RESERVOIR SIDE

 1
90467-16008

AT160,ST16#

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-20250

ST16#

 1
44411 - HOSE, PRESSURE FEED
44411-20160

ST16#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

ST16#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20110

AT160,ST16#

 1
44441 - BRACKET, PUMP, FRONT
44441-32010

ST16#

 1
44441 - BRACKET, PUMP, FRONT
44441-32010

ST16#

 1
44443 - BRACKET, PUMP
44443-20050

ST162

 1
44443 - BRACKET, PUMP
44443-20050

ST162

 1
44444 - STAY, PUMP, REAR
44444-20030

ST162

 1
Common parts
90105-10075
90119-06116
90119-08368
90119-10138
90119-10387
90173-10006
90950-01453
91511-61030
91611-61020
91655-60616
Linked diagrams
1605
