ST162-TCMGK (1987)

Toyota Corona Ff Coupe

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission VX
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

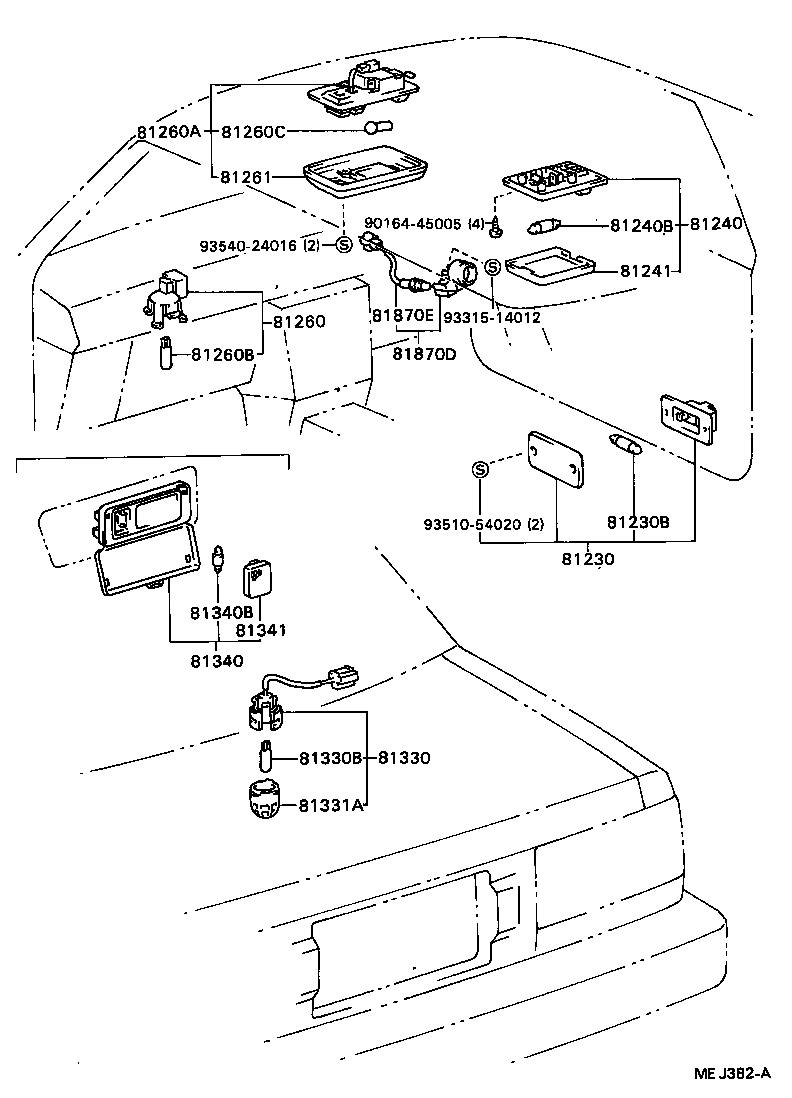

Click highlighted areas on diagram

diagram 81230 81230B 81240 81240B 81241 81260 81260A 81260B 81260C 81261 81330 81330B 81331A 81340 81340B 81341 81870D 81870E 9016445005 9331514012 9351054020 9354024016
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-14040

ST16#..EX,VX

 2
81230B - BULB(FOR COURTESY LAMP)
99132-13050

ST16#..EX,VX

12V 5W

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-2208113

ST16#

SHADOW GRAY,TRIM2#

 1
81240-2208104

ST16#

DARK BLUE,TRIM8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

ST16#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

ST16#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22070

ST16#

 1
81260A - LAMP ASSY, MAP
81260-2009004

ST16#

DEEP BLUE,TRIM8#

 1
81260-2009003

ST16#

SHADOW GRAY,TRIM2#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ST16#

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

ST16#

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-2009003

ST16#

SHADOW GRAY,TRIM2#

 1
81261-2009004

ST16#

DEEP BLUE,TRIM8#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-22031

ST16#..EX,VX

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

ST16#..EX,VX

12V 3.8W

 1
81331A - COVER, LUGGAGE COMPARTMENT LAMP
81331-22030

ST16#..EX,VX

 1
81340 - LAMP ASSY, VANITY
81340-2001004

ST162..VX

DEEP BLUE,TRIM8#

 1
81340-2001003

ST162..VX

GRAY,TRIM2#

 1
81340B - BULB (FOR VANITY LAMP)
90981-14002

ST162..VX

12V 5W,12V 5W

 1
81341 - LENS, VANITY LAMP
81341-14020

ST162..VX

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-20011

ST16#..EX,VX

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

ST16#..EX,VX

12V 1.2W ｿｹｯﾄ無し

 1
Common parts
90164-45005
93315-14012
93510-54020
93540-24016
