ST162-TCMGK (1987)

Toyota Corona Ff Coupe

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission VX
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

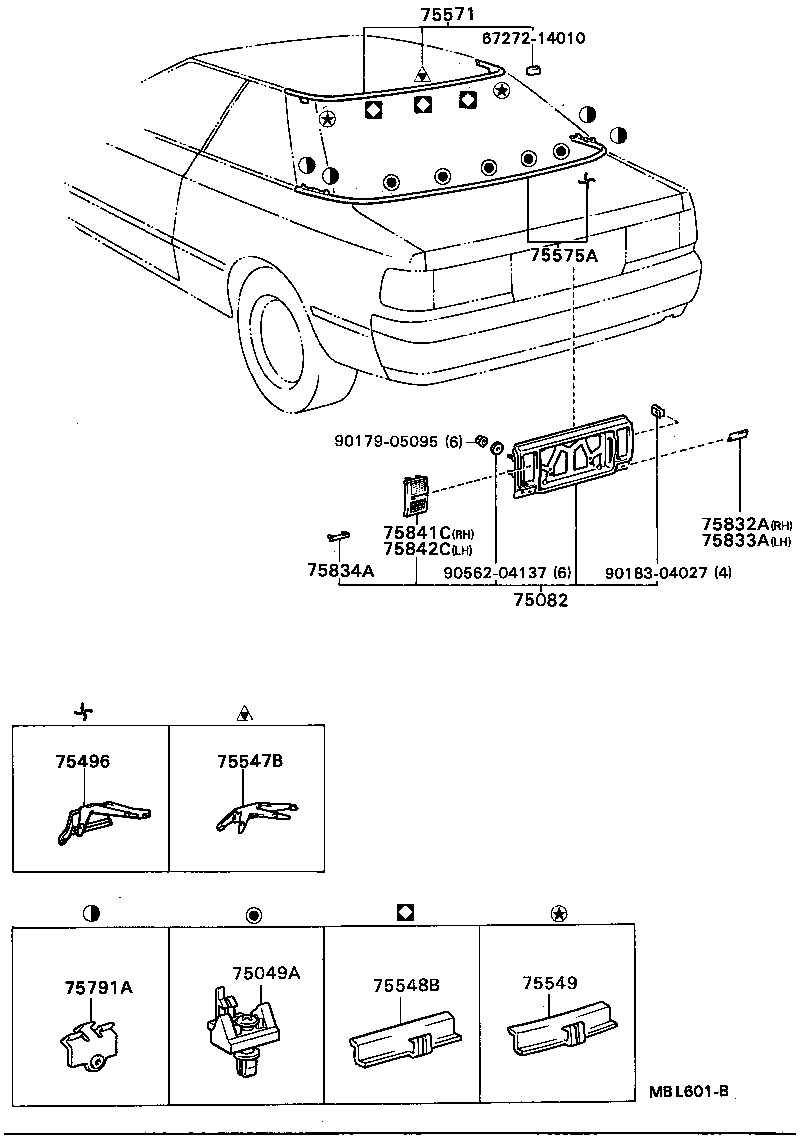

Click highlighted areas on diagram

diagram 6727214010 75049A 75082 75496 75547B 75548B 75549 75571 75575A 75791A 75832A 75833A 75834A 75841C 75842C 9017905095 9018304027 9056204137
Part # Description Qty Price
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-20060

ST16#

 5
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-20170

ST16#

 1
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-20010

ST16#

 5
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-20040

ST16#

 5
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-20060

ST16#

 3
75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75549-20090

ST16#

 2
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75501-20020

ST162..VX

EVENT

 1
75501-20010

ST16#

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75507-20150

ST162..VX

EVENT

 1
75507-20160

ST16#

 1
75791A - CLIP, BELT MOULDING SIDE
75791-20040

ST16#

 2
75832A - PANEL, LOWER BACK FINISH, RH
75832-2012002

ST16#

RED MAICA,3H4

 1
75832-2012004

ST16#

B BLUE MAICA M,8E4

 1
75832-2012003

ST16#

GRAY M,168

 1
75832-2012001

ST162..VX

EVENT,BLACK,202

 1
75832-2012023

ST16#..EX,GT,VX

SILVER M,23E

 1
75832-2012008

ST16#

SUPER WHITE 2,040

 1
75832-2012013

ST16#

A SILVER M,920

 1
75833A - PANEL, LOWER BACK FINISH, LH
75833-2006003

ST16#

GRAY M,168

 1
75833-2006008

ST16#

SUPER WHITE 2,040

 1
75833-2006013

ST16#

A SILVER M,920

 1
75833-2006001

ST162..VX

EVENT,BLACK,202

 1
75833-2006023

ST16#..EX,GT,VX

SILVER M,23E

 1
75833-2006002

ST16#

RED MAICA,3H4

 1
75833-2006004

ST16#

B BLUE MAICA M,8E4

 1
75834A - MOULDING, LOWER BACK FINISH PANEL
75834-20050

ST16#

 2
75841C - MOULDING, LOWER BACK PANEL, RH
75841-20050

ST16#

 1
75842C - MOULDING, LOWER BACK PANEL, LH
75842-20050

ST16#

 1
Common parts
67272-14010
90179-05095
90183-04027
90562-04137
