ST162-TCMGK (1987)
Toyota Corona Ff Coupe

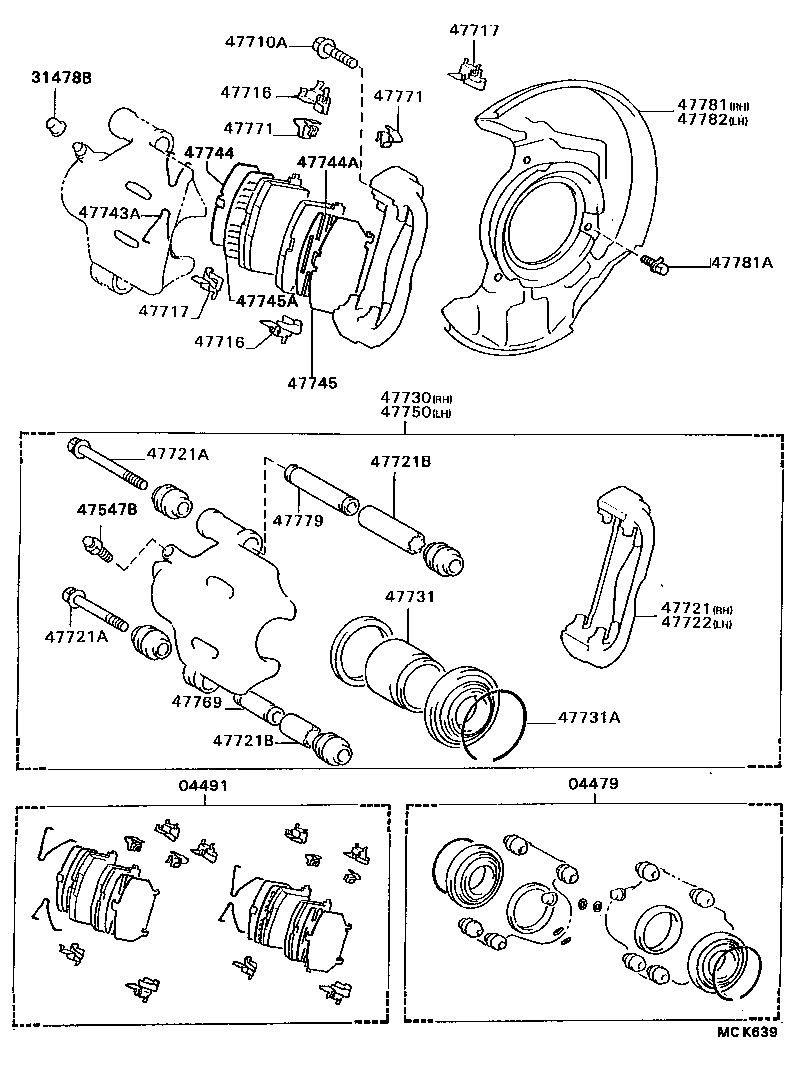

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-20080 |
ST162 |
1 | ||
| 04479-32030 |
ST162 ｱﾘ(ESC) |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-32201 |
ST162 ｱﾘ(ESC) |
1 | ||
| 04491-20491 |
ST162 |
1 | ||
| 04491-32200 |
ST162 ｱﾘ(ESC) |
1 | ||
| 04491-20492 |
ST162 |
1 | ||
| 04491-20490 |
ST162 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
ST16# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ST162 ｱﾘ(ESC) |
2 | ||
| 47547-12040 |
ST162 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
ST16# *12−1.25PX25.8−19.5 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32040 |
ST162 ｱﾘ(ESC) |
4 | ||
| 47716-32010 |
ST162 |
4 | ||
| 47716-32031 |
ST162 |
4 | ||
| 47716-32041 |
ST162 ｱﾘ(ESC) |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32040 |
ST162 ｱﾘ(ESC) |
4 | ||
| 47716-32010 |
ST162 |
4 | ||
| 47716-32031 |
ST162 |
4 | ||
| 47716-32041 |
ST162 ｱﾘ(ESC) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32040 |
ST162 ｱﾘ(ESC) |
4 | ||
| 47717-32031 |
ST162 |
4 | ||
| 47717-32041 |
ST162 ｱﾘ(ESC) |
4 | ||
| 47717-32010 |
ST162 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32040 |
ST162 ｱﾘ(ESC) |
4 | ||
| 47717-32031 |
ST162 |
4 | ||
| 47717-32041 |
ST162 ｱﾘ(ESC) |
4 | ||
| 47717-32010 |
ST162 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-20140 |
ST162 ｱﾘ(ESC) |
1 | ||
| 47721-20120 |
ST162 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09004 |
ST162 *9−1.25PX91−25 |
2 | ||
| 90119-10249 |
ST162 *10−1.25PX95.5−30 |
2 | ||
| 90119-10014 |
ST162 *10−1.25PX65.5−30 |
2 | ||
| 90119-09003 |
ST162 *9−1.25PX71−25 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09004 |
ST162 *9−1.25PX91−25 |
2 | ||
| 90119-10249 |
ST162 *10−1.25PX95.5−30 |
2 | ||
| 90119-10014 |
ST162 *10−1.25PX65.5−30 |
2 | ||
| 90119-09003 |
ST162 *9−1.25PX71−25 |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-20140 |
ST162 ｱﾘ(ESC) |
1 | ||
| 47721-20120 |
ST162 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20220 |
ST162 |
1 | ||
| 47730-20240 |
ST162 ｱﾘ(ESC) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-32040 |
ST162 ｱﾘ(ESC) |
2 | ||
| 47731-20100 |
ST162 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-64003 |
ST16# |
2 | ||
| 90522-66001 |
ST162 ｱﾘ(ESC) |
2 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-32030 |
ST162 |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-20060 |
ST162 |
2 | ||
| 47745-17020 |
ST162 |
2 | ||
| 47744-32041 |
ST162 ｱﾘ(ESC) |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47742-17010 |
ST162 |
2 | ||
| 47742-20090 |
ST162 |
2 | ||
| 47742-32040 |
ST16# |
2 | ||
| 47742-17010 |
ST16# |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-32021 |
ST162 ｱﾘ(ESC),OUTER |
2 | ||
| 47745-32020 |
ST162 ｱﾘ(ESC),外側 |
2 | ||
| 47745-17020 |
ST162 |
2 | ||
| 47742-32021 |
ST162 ｱﾘ(ESC),INNER |
2 | ||
| 47745-32040 |
ST16# |
2 | ||
| 47742-32022 |
ST162 ｱﾘ(ESC),INNER |
2 | ||
| 47745-20090 |
ST162 |
2 | ||
| 47745-17020 |
ST16# |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47742-17010 |
ST162 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20210 |
ST162 |
1 | ||
| 47750-20230 |
ST162 ｱﾘ(ESC) |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-32010 |
ST162 |
2 | ||
| 47769-40010 |
ST162 ｱﾘ(ESC) |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-32010 |
ST162 |
4 | ||
| 47771-32010 |
ST162 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-32010 |
ST162 |
4 | ||
| 47771-32010 |
ST162 |
2 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-40010 |
ST162 ｱﾘ(ESC) |
2 | ||
| 47779-32010 |
ST162 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-32020 |
ST162 ｱﾘ(ESC) |
1 | ||
| 47781-20150 |
ST162 |
1 | ||
| 47703-32021 |
ST162 ｱﾘ(ESC) |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
ST16# |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-32020 |
ST162 ｱﾘ(ESC) |
1 | ||
| 47704-32021 |
ST162 ｱﾘ(ESC) |
1 | ||
| 47782-20150 |
ST162 |
1 | ||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-32091 |
ST162 ｱﾘ(ESC) |
1 | ||
| 04465-20030 |
ST162 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-17060 |
ST162 |
1 | ||
| 04945-32150 |
ST162 ｱﾘ(ESC) |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-32140 |
ST162 ｱﾘ(ESC) |
1 | ||
| 04947-32010 |
ST162 |
1 | ||
