ST160-TCPNL (1985)
Toyota Corona Ff Coupe
Production
Aug 1985
-
Aug 1987
Engine
1SILU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )ST160

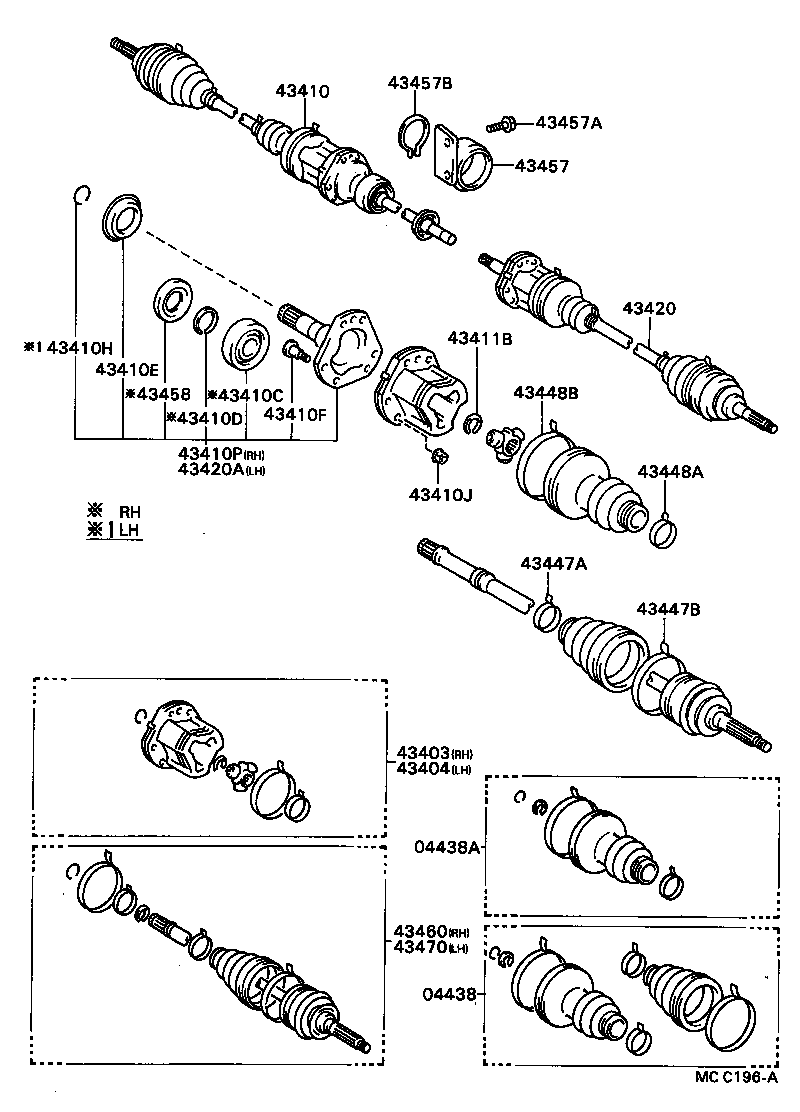

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12030 |
ST160 |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-32011 |
ST160 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-39016 |
ST160 |
1 | ||
| 43404 - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-39016 |
ST160 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20040 |
ST160 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-36001 |
ST16# |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-33008 |
ST16# |
1 | ||
| 43410E - COVER, DUST (FOR FRONT DRIVE SHAFT) | ||||
| 41336-32020 |
ST16# LH |
1 | ||
| 41336-20011 |
ST16# RH |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
AT160,ST160 |
12 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-27005 |
ST16# |
1 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
AT160,ST160 |
12 | ||
| 43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH | ||||
| 43049-32020 |
ST160 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
ST160;AT160..5F |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20020 |
ST160 |
1 | ||
| 43420A - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 41309-32010 |
ST160 |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
ST160;AT160..5F |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
ST160;AT160..5F |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
ST160;AT160..5F |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14020 |
ST160;AT160..5F |
2 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20021 |
ST16# |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
ST16# *10−1.25PX19.8−8.3,*10-1.25PX14.8-8.3 |
1 | ||
| 90105-10051 |
ST16# *10−1.25PX22−19.5,*10-1.25PX 22-19.5 |
2 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
ST16# |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
ST16# |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-29055 |
ST160 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29055 |
ST160 |
1 | ||
